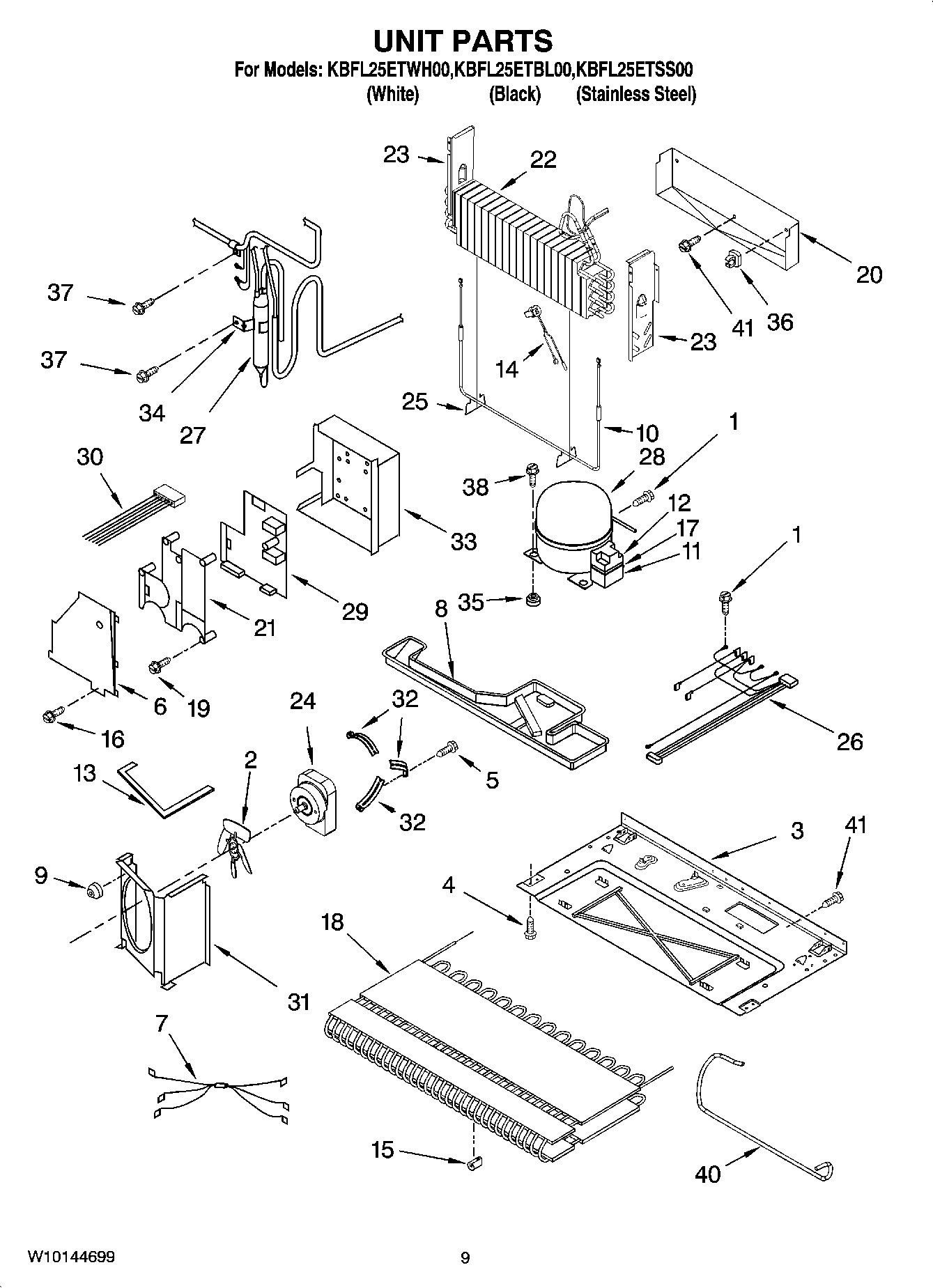

KBFL25ETSS00 05 – UNIT PARTS

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	Screw (4)
5	WP67004954 Whirlpool Refrigerator Screw
6	67005421 Whirlpool Hoist Cover
7	Harness, Evap Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	Grommet (3)
10	WP67002493 Whirlpool Refrigerator Defrost Heater
11	Capacitor (See Item 12)
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WP67003426 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	W10709801 Whirlpool Refrigerator Screw
17	Clip, Capacitor
18	WP67006131 Whirlpool Refrigerator Condenser
19	Screw (2)
20	W11547653 Whirlpool Refrigerator Drip Tray
21	Spacer, Box- High Voltage
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Right Side)
23	Dam (Left Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	Harness, Unit
27	WPW10143759 Whirlpool Dryer Filter
28	W10160407 Whirlpool Refrigerator Compressor
29	Control Board, High Voltage
30	Harness, HV
31	Shroud
32	WP67004953 Whirlpool Refrigerator Bracket
33	Control Box, High Voltage
34	10547003 Whirlpool Refrigerator Dryer Clip
35	67003493 Whirlpool Refrigerator Compressor Grommet
36	CLIP, EVAP (2)
37	WP33001882 Whirlpool Screw
38	12846902 Whirlpool Refrigerator Screw
40	WP12866903 Whirlpool Refrigerator Discharge Tube
41	67006425 Whirlpool Refrigerator Screw
