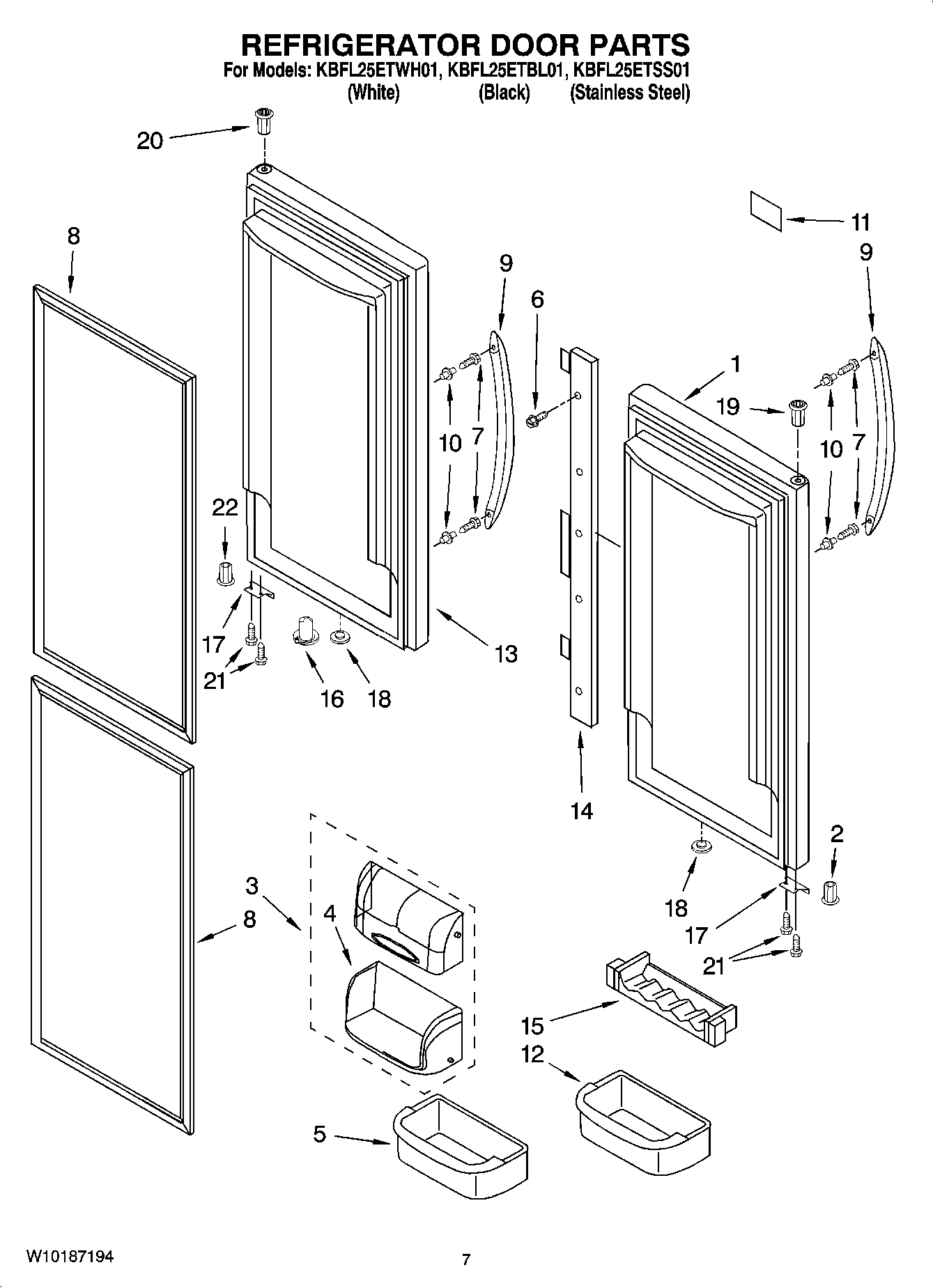

KBFL25ETSS01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Left (Black)
1	Door, Left (White)
1	Door, Left (Stainless Steel)
2	WP67002721 Whirlpool Refrigerator Door Bushing
2	67002722 Whirlpool Refrigerator White Door Bushing
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
6	W11311945 Whirlpool Refrigerator Screw
7	67006901 Whirlpool Refrigerator Screw
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	Handle, Door (Stainless Steel)
9	WP2319727W Whirlpool Refrigerator Handle
9	WP2319727B Whirlpool Refrigerator Handle
10	WP67006113 Whirlpool Stud Bolt
11	WPW10243393 Whirlpool Dishwasher Nameplate
11	NAMEPLATE
11	WPW10243392 Whirlpool Dishwasher Nameplate
12	WPW10289498 Whirlpool Refrigerator Cantilever Bin
13	Door, Right (Black)
13	Door, Right (White)
13	Door Right (Stainless Steel)
14	WP12722803B Whirlpool Door Guide
14	RAIL-MULLN WHITE
15	WP67005626 Whirlpool Refrigerator Can Caddy
16	WP67003638 Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	10712401 Whirlpool Refrigerator Vent Plug (White)
18	67004838 Whirlpool Refrigerator Button Vent Plug
19	Bushing, Door (Upper Left) (Black)
19	Bushing, Door (Upper Left) (White)
20	67004978 Whirlpool Refrigerator Black Door Bushing
20	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
21	WP98165 Whirlpool Screw
22	12028601W Whirlpool Refrigerator Hinge Bushing
22	WP67002731 Whirlpool Refrigerator Door Bushing
