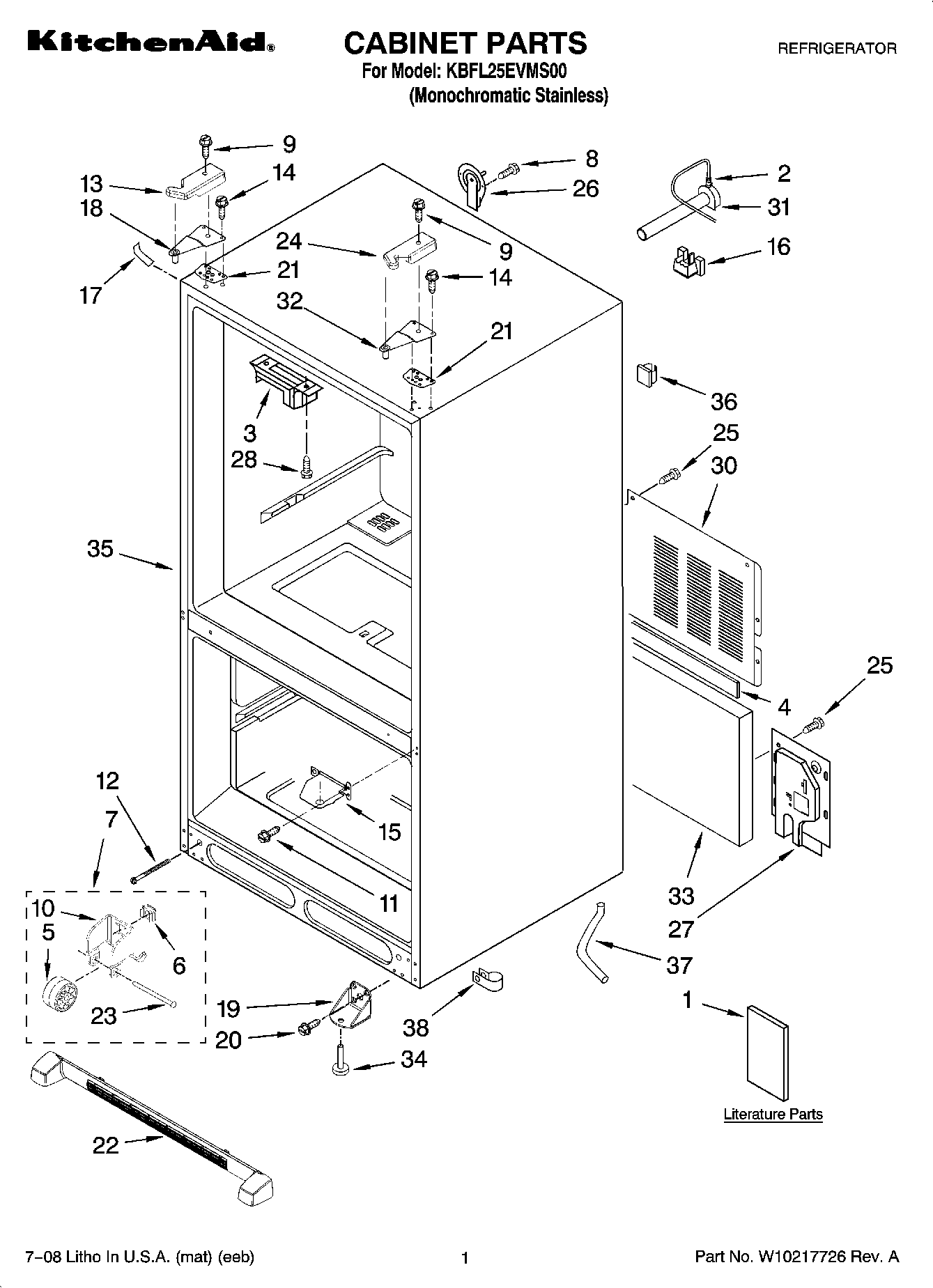

KBFL25EVMS00 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	Tag, Energy
1	Tech Sheet
2	W11176463 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	GASKET
5	WP10450603 Whirlpool Refrigerator Roller
6	M0286708 Whirlpool Refrigerator Holder Nut Assembly
7	Roller Assy.(Rear)
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13	W10217487 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	12655102AP Whirlpool Refrigerator Door Hinge
16	WP12777701 Whirlpool Refrigerator Filler Block
17	WP12587703AP Whirlpool Refrigerator Filler
18	12626911ED Whirlpool Refrigerator Door Hinge
19	Bracket, Foot (2)
20	67006564 Whirlpool Refrigerator Screw
21	Shim, Hinge
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	Pin
24	COVER, RIGHT HINGE
25	67006425 Whirlpool Refrigerator Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	Cover, Water Valve
28	WP7101P126-60 Whirlpool Screw
30	Gasket
31	W11181718 Whirlpool Refrigerator Water Tube
32	12626910ED Whirlpool Refrigerator Door Hinge
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	Cabinet, (Not A Serviceable Part)
36	WPM0104106 Whirlpool Refrigerator Clip
37	W10164397 Whirlpool Refrigerator Drain Tube
38	Clip, Drain Tube
