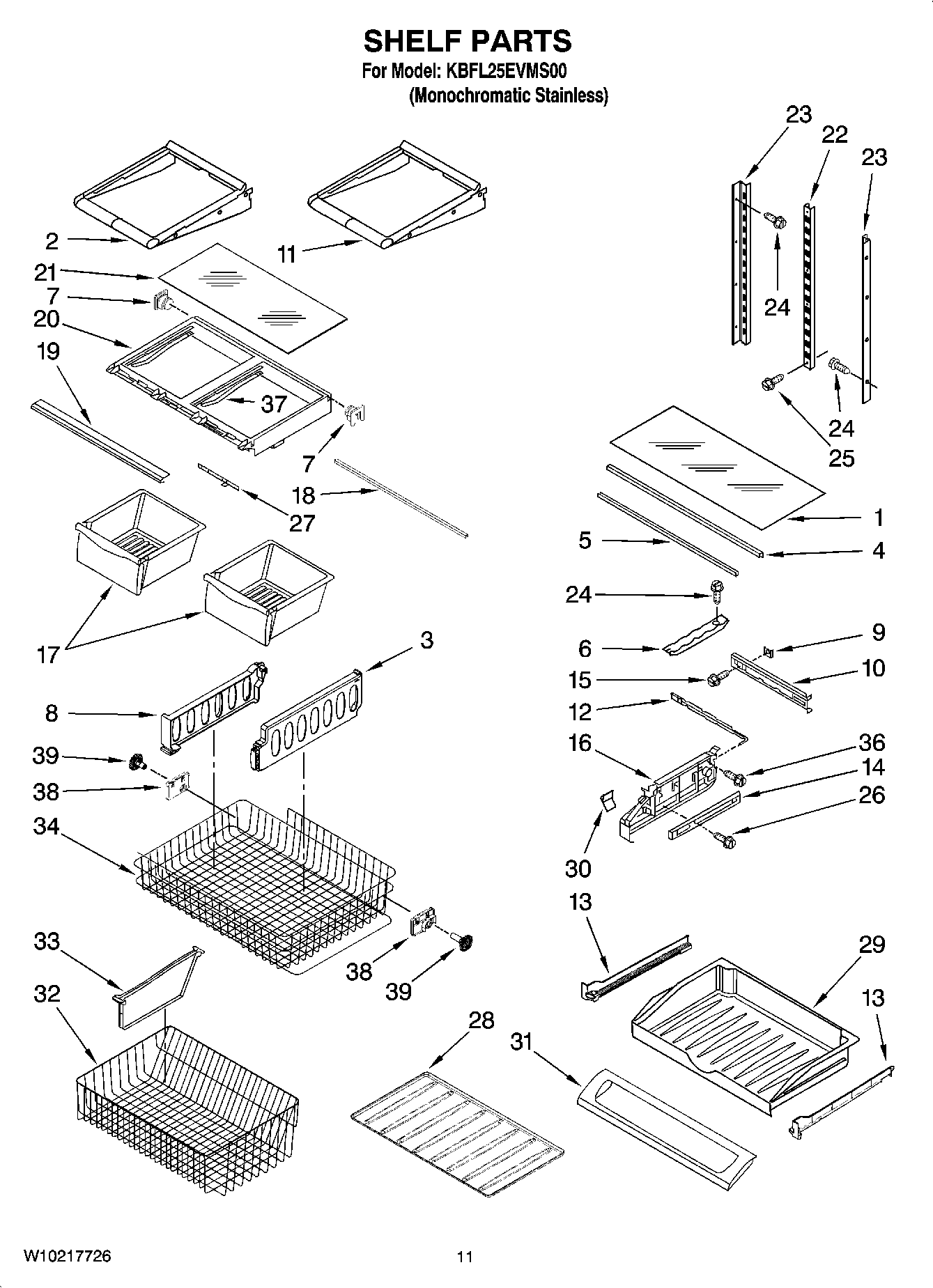

KBFL25EVMS00 06 – SHELF PARTS
Written by
in
KBFL25EVMS00 06 – SHELF PARTS
Products
Position
Product
1
Glass, Pantry
2
W10205737 Whirlpool Refrigerator Glass Shelf
3
W10171558 Whirlpool Refrigerator Divider
4
WP67006010 Whirlpool Refrigerator Shelf Trim
5
WP12227305WD Whirlpool Drawer Support
6
WP67001719 Whirlpool Refrigerator Track
7
WP12603701 Whirlpool Refrigerator Support
8
Divider, Upper Basket
9
67002329 Whirlpool Refrigerator Pantry Gasket
10
12656202 Whirlpool Refrigerator Housing
11
Shelf, Glide (2)
12
WP67003793 Whirlpool Refrigerator Temperature Slide
13
W11489993 Whirlpool Refrigerator Rail
13
W11489994 Whirlpool Refrigerator Rail
14
WPW10235370 Whirlpool Refrigerator Glide
16
W10874836 Whirlpool Endcap Assembly Left Hand and Right
17
Pan, Crisper (2)
18
WP12642303WD Whirlpool Refrigerator Drawer Support
19
Trim, Crisper
20
WP67003854 Whirlpool Shelf Frame
21
WP67006704 Whirlpool Glass Crisper Cover
22
67001073 Whirlpool Refrigerator Center Ladder
23
67002489 Whirlpool Refrigerator Ladder L/R Side
24
67006425 Whirlpool Refrigerator Screw
25
W10709795 Whirlpool Refrigerator Screw
26
WP67006415 Whirlpool Refrigerator Screw
27
SLIDE
28
WP67006104 Whirlpool Refrigerator Tray
29
WP67003531 Whirlpool Drawer Assembly
30
W11498983 Whirlpool Refrigerator Knob
31
WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32
Basket, Freezer (Lower)
33
W10847995 Whirlpool Divider Assembly
34
WPW10348246 Whirlpool Refrigerator Freezer Basket
36
WP98165 Whirlpool Screw
37
WPW10326469 Whirlpool Drawer Slide Rail
38
W10348260 Whirlpool Refrigerator Bracket
38
W10348259 Whirlpool Refrigerator Bracket Assembly
39
WPW10474715 Whirlpool Refrigerator Gear
39
WPW10474716 Whirlpool Refrigerator Gear
←
