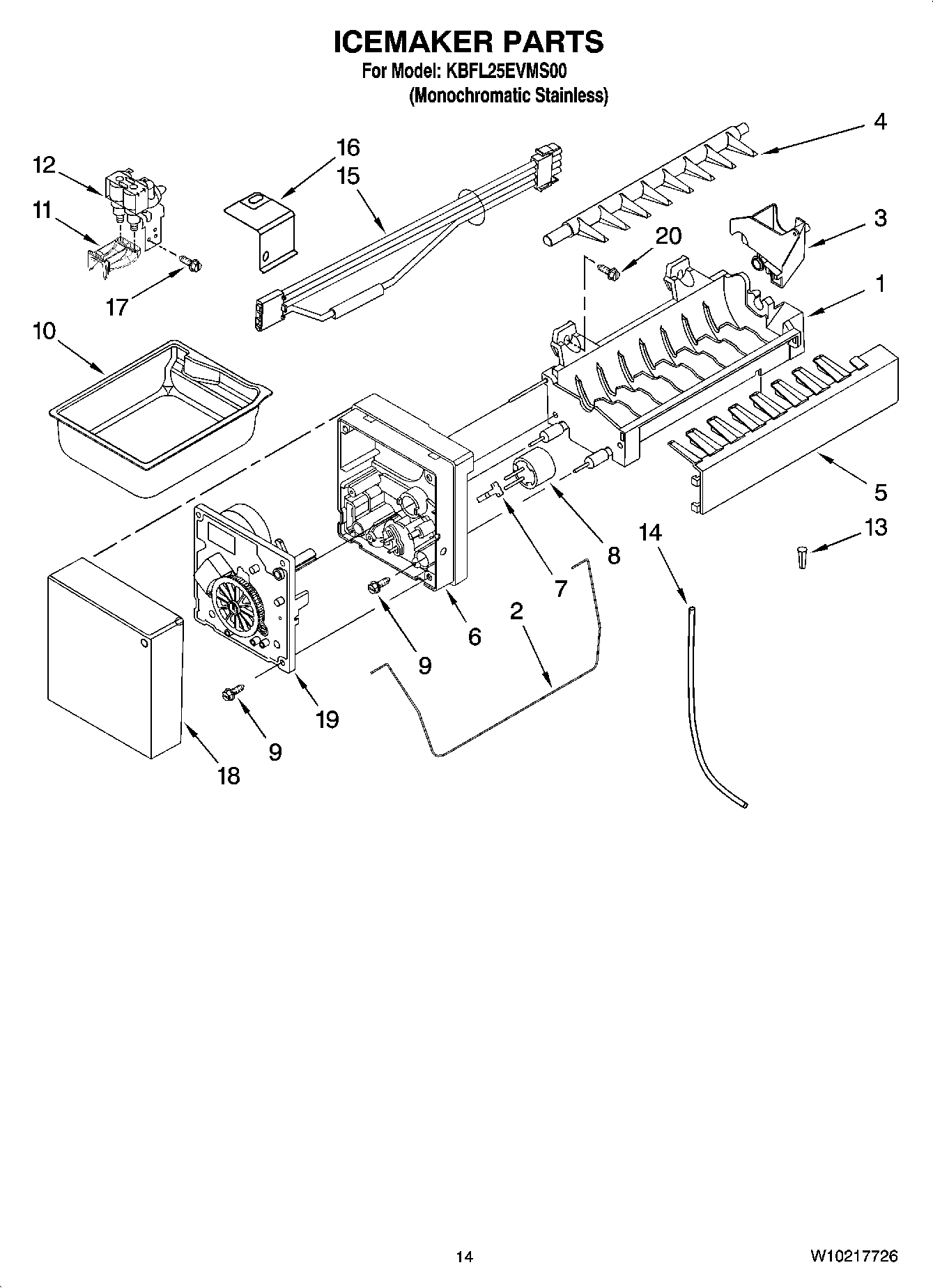

KBFL25EVMS00 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI78240A5
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
W11033771 Whirlpool Refrigerator Coupling
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
681390 Whirlpool Refrigerator Screw
WPL ARI78237A4
Ice Container Assembly
Retainer, Tube
WPL ARI78234A2
WPL ARI78235A2
WPL ARI78236A4
WPL ARI78238A2
WPL ARI78239A2
TAPE, VINYL (3/4 X 108“)
Torx Key
WP542638 Whirlpool Refrigerator Grease
350930 Whirlpool White Spray Paint
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
606755 Whirlpool Refrigerator Bag
WP489464 Whirlpool Refrigerator Screw
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
72017 Whirlpool Appliance Touch-Up Paint White
1Mold & Heater Assembly (Not Available — Order 8170937)
2ARM-SHUT
3W10122561 Whirlpool Refrigerator Cup Fill
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8Thermostat (Not Available Order D7824706Q)
9WP681249 Whirlpool Screw Assembly
10WPW10171529 Whirlpool Refrigerator Ice Pan
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14WPB5705307 Whirlpool Refrigerator Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available Order D7824706Q)
20WP98165 Whirlpool Screw
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
