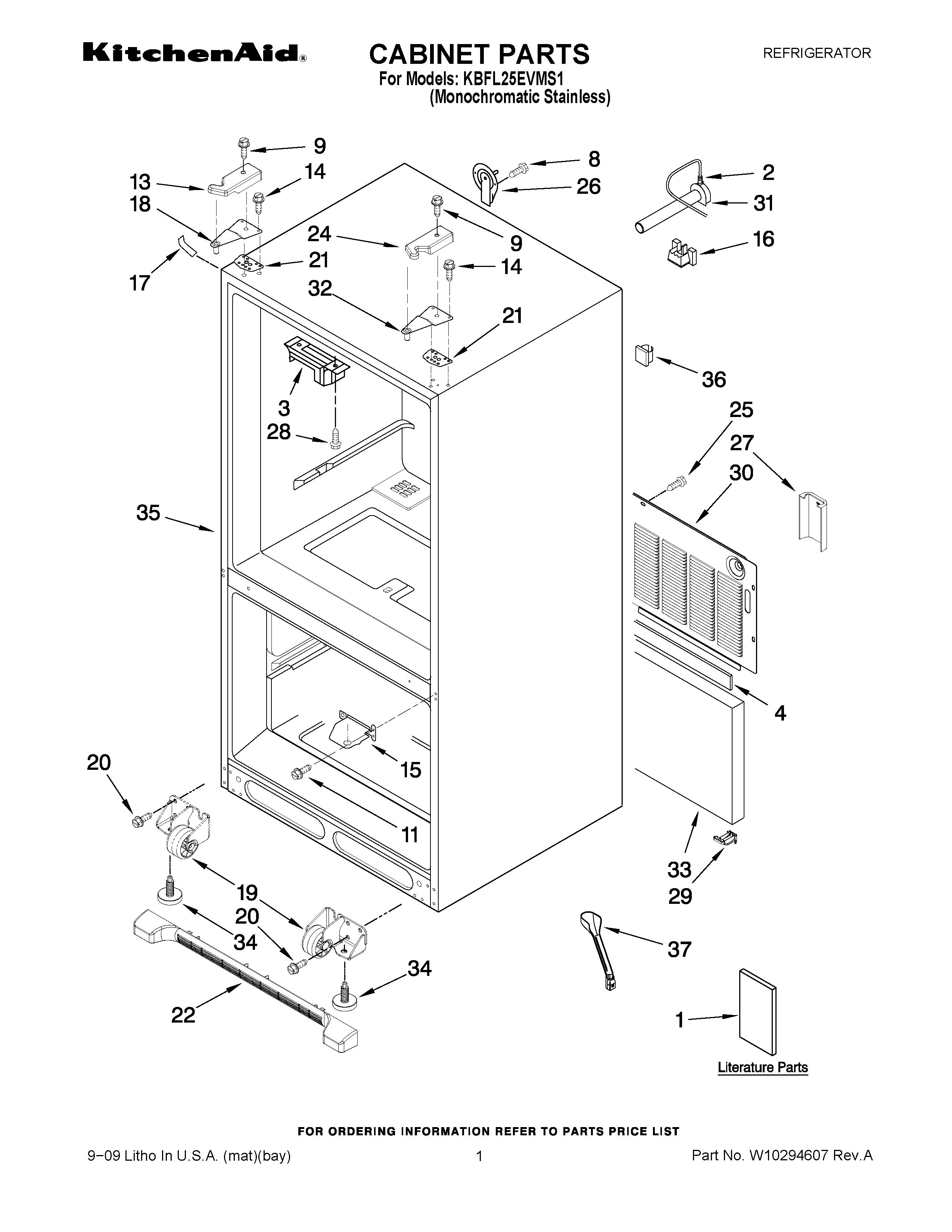

KBFL25EVMS1 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	Tag, Energy
1	Owners Manual
2	W11176463 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	Gasket
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
11	WP67006380 Whirlpool Screw
13	W10217487 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	12655102AP Whirlpool Refrigerator Door Hinge
16	WP12777701 Whirlpool Refrigerator Filler Block
17	WP12587703AP Whirlpool Refrigerator Filler
18	12626911ED Whirlpool Refrigerator Door Hinge
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
19	WPW10515762 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	Shim, Hinge
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
24	COVER, RIGHT HINGE
25	67006425 Whirlpool Refrigerator Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	WP7101P126-60 Whirlpool Screw
29	12831101 Whirlpool Refrigerator Tube Clamp
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	W11181718 Whirlpool Refrigerator Water Tube
32	12626910ED Whirlpool Refrigerator Door Hinge
33	INSULATION, SOUND
34	W11177593 Whirlpool Leveling Feet
35	CABINET (NOT A SERVICEABLE PART)
36	WPM0104106 Whirlpool Refrigerator Clip
37	W10619951 Whirlpool Drain Tube with Grommet
