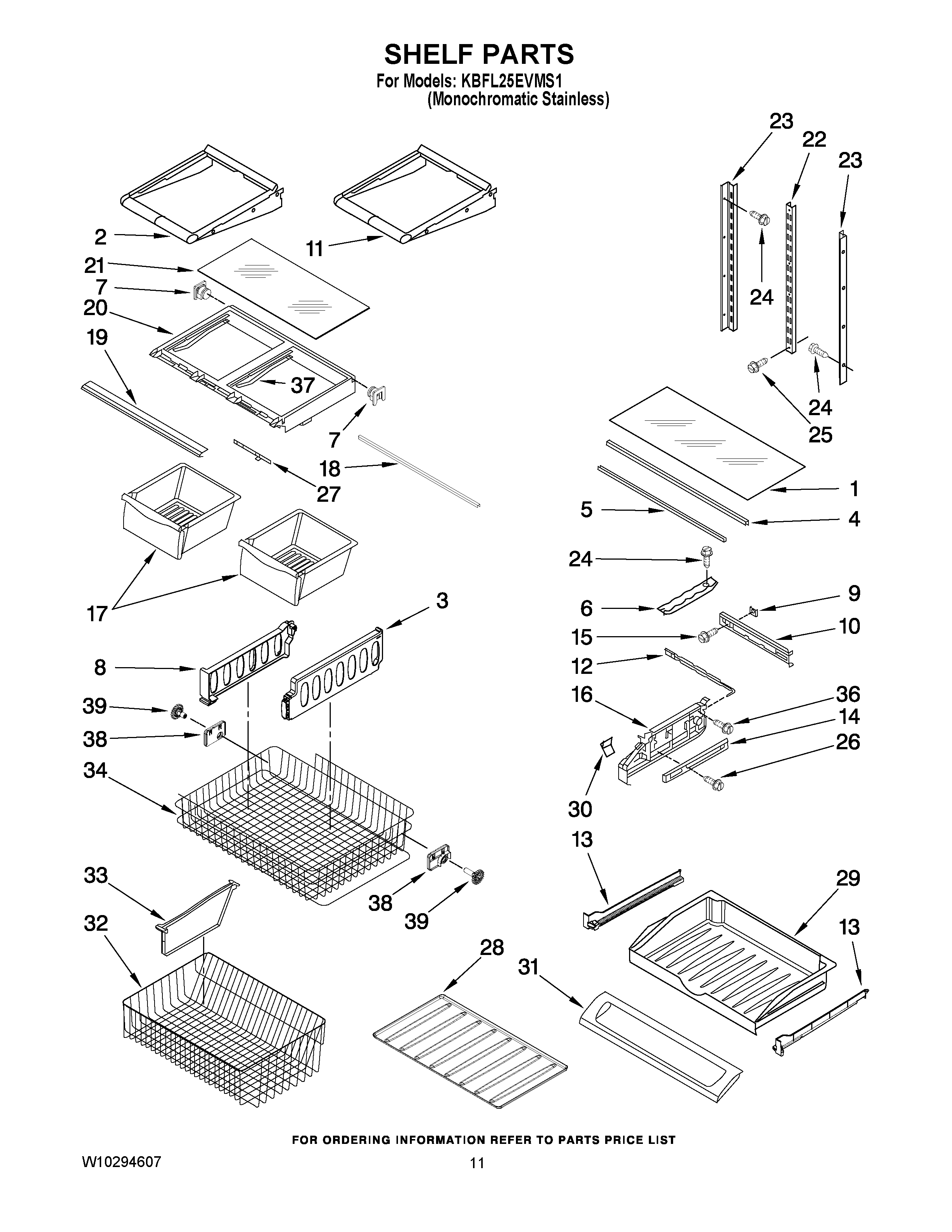

KBFL25EVMS1 06 – SHELF PARTS

Products

Position	Product
1	W11033333 Whirlpool Glass Shelf
2	W10205737 Whirlpool Refrigerator Glass Shelf
3	W10171558 Whirlpool Refrigerator Divider
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	WP13062602 Whirlpool Refrigerator Support
8	W10241046 Whirlpool Refrigerator Divider
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	SHELF, GLIDE (2)
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	W11489994 Whirlpool Refrigerator Rail
13	W11489993 Whirlpool Refrigerator Rail
14	WPW10235370 Whirlpool Refrigerator Glide
16	W10874836 Whirlpool Endcap Assembly Left Hand and Right
17	PAN, CRISPER (2)
18	WP12642303WD Whirlpool Refrigerator Drawer Support
19	TRIM, CRISPER
20	WP67003854 Whirlpool Shelf Frame
21	WP67006704 Whirlpool Glass Crisper Cover
22	W10273463 Whirlpool Refrigerator Ladder
23	W10251971 Whirlpool Ladder Assembly
24	67006425 Whirlpool Refrigerator Screw
25	W10709795 Whirlpool Refrigerator Screw
26	WP67006415 Whirlpool Refrigerator Screw
27	SLIDE
28	WP67006104 Whirlpool Refrigerator Tray
29	WP67003531 Whirlpool Drawer Assembly
30	W11498983 Whirlpool Refrigerator Knob
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32	Basket, Freezer (Lower)
33	W10847995 Whirlpool Divider Assembly
34	WPW10348246 Whirlpool Refrigerator Freezer Basket
36	WP98165 Whirlpool Screw
37	WPW10326469 Whirlpool Drawer Slide Rail
38	W10348259 Whirlpool Refrigerator Bracket Assembly
38	W10348260 Whirlpool Refrigerator Bracket
39	WPW10474715 Whirlpool Refrigerator Gear
39	WPW10474716 Whirlpool Refrigerator Gear
