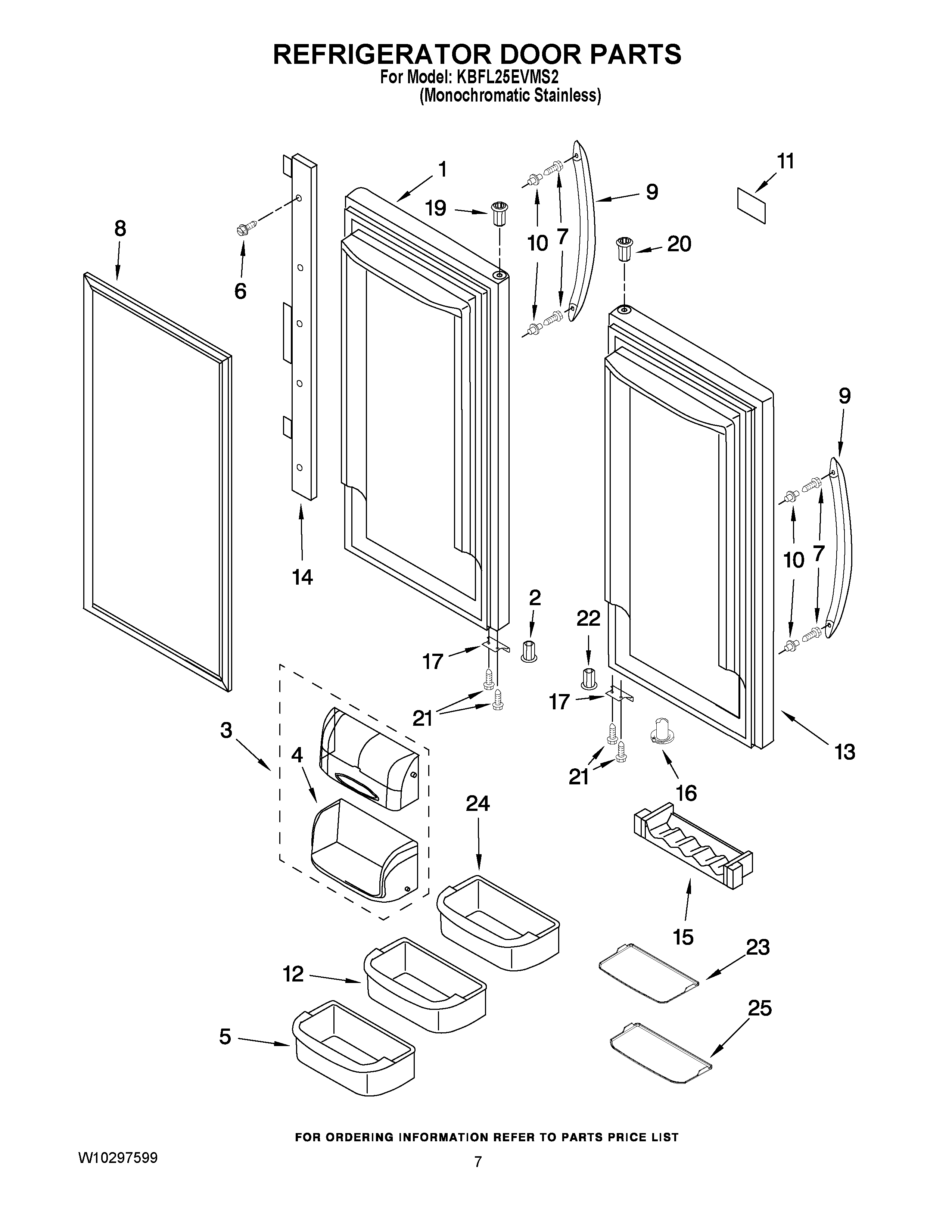

KBFL25EVMS2 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (LEFT) (STAINLESS)
2BUSHING, DOOR (BOTTOM LEFT)
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371195 Whirlpool Refrigerator Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
7WP3387230 Whirlpool Screw
8GASKET-FIP
9WPW10314517K Whirlpool Refrigerator Handle
10MOUNT, HANDLE
11NAMEPLATE
12WPW10289498 Whirlpool Refrigerator Cantilever Bin
13DOOR, RIGHT (STAINLESS)
14WP12722803AP Whirlpool Refrigerator Mullion Rail
15WP67005626 Whirlpool Refrigerator Can Caddy
16WP12028505AP Whirlpool Closing Cam
17W11401472 Whirlpool Refrigerator Door Stop
19BUSHING, DOOR UPPER LEFT (APOLLO GREY)
2010961006AP Whirlpool Refrigerator Hinge Bushing
21WP98165 Whirlpool Screw
22W10853652 Whirlpool Refrigerator Hinge Bushing
23W11402028 Whirlpool Refrigerator Mat
25WPW10450021 Whirlpool Refrigerator Mat
