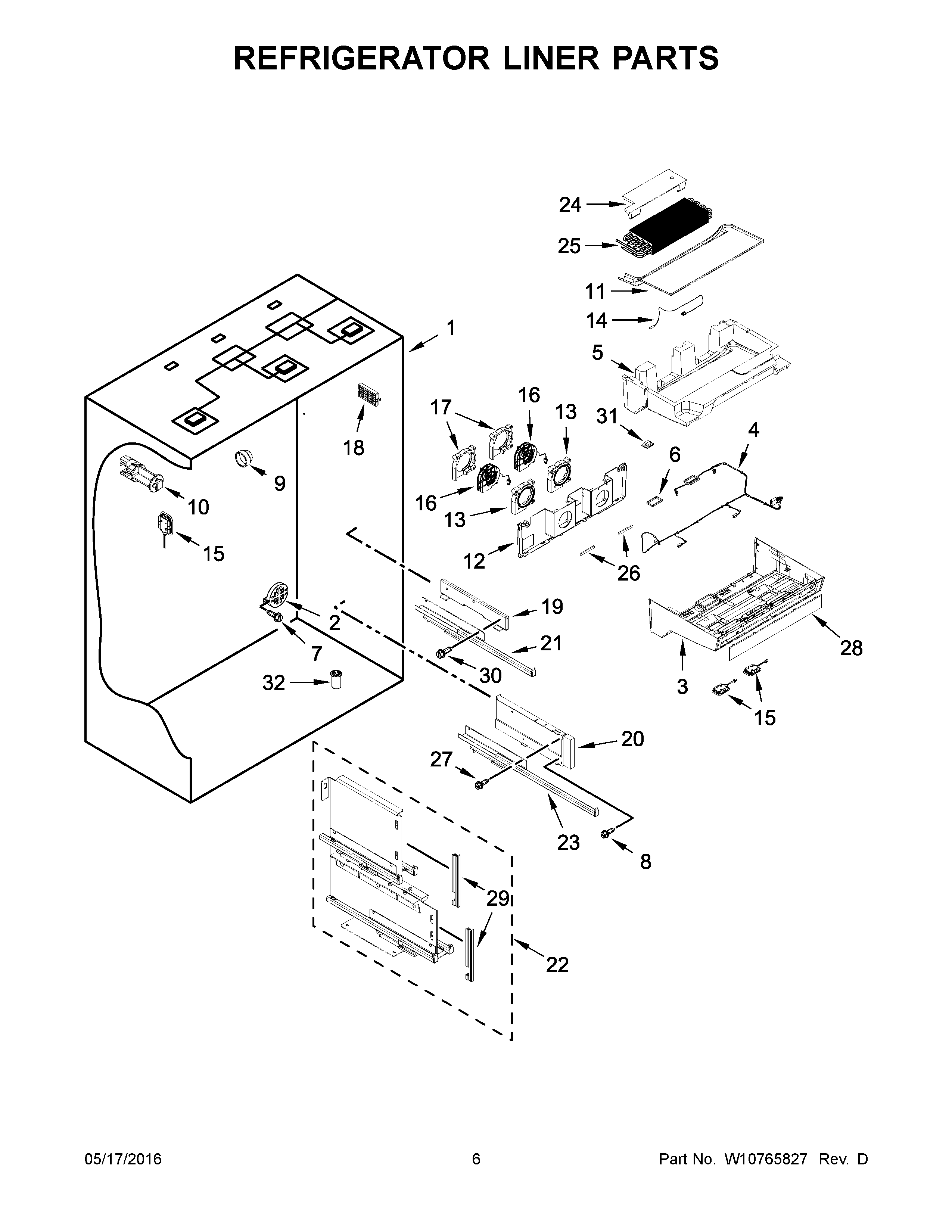

KBFN402EPA00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
22317004 Whirlpool Refrigerator Air Cover
3W10686637 Whirlpool Refrigerator Evaporator Cover
4W11661567 Whirlpool Wire Harness
5W11712700 Whirlpool Insulation
6W10638137 Whirlpool Refrigerator Gasket
7WP488729 Whirlpool Refrigerator Door Screw
8W10215666 Whirlpool Refrigerator Screw
9SUPPORT, EVAPORATOR ASSEMBLY
10W10555493 Whirlpool Clip
11W10555480 Whirlpool Refrigerator Shield
12HOUSING, REAR EVAPORATOR COVER (WHITE)
13W10538315 Whirlpool Refrigerator Housing
14W11661569 Whirlpool Thermistor
15W11683242 Whirlpool Refrigerator LED Light Module
16W11678257 Whirlpool Fan
17W10538317 Whirlpool Refrigerator Housing
18W10311524 Whirlpool FreshFlow Refrigerator Air Filter
19SPACER, CRISPER SLIDE (WHITE)
20ASPACER, DELI RIGHT HAND (WHITE)
20SPACER, DELI LEFT HAND (WHITE)
21AW10569886 Whirlpool Refrigerator Slide
21W10569887 Whirlpool Refrigerator Slide
22ASSEMBLY, CENTER SUPPORT
23W10569892 Whirlpool Refrigerator Slide
23AW10569891 Whirlpool Refrigerator Slide
24W10555472 Whirlpool Refrigerator Insulation
25W11553229 Whirlpool Refrigerator Evaporator
26W10740077 Whirlpool Refrigerator Gasket
27WP3400886 Whirlpool Refrigerator Screw
28W11411871-includeCORE Whirlpool W11411871 Refrigerator UI Panel with Core
29TRIM, CENTER SUPPORT DELI (WHITE)
29ATRIM, CENTER SUPPORT CRISPER (WHITE)
30WP8533928 Whirlpool Refrigerator Screw
31CLIP, WIRING
32WP2210509 Whirlpool Refrigerator Tub Valve
