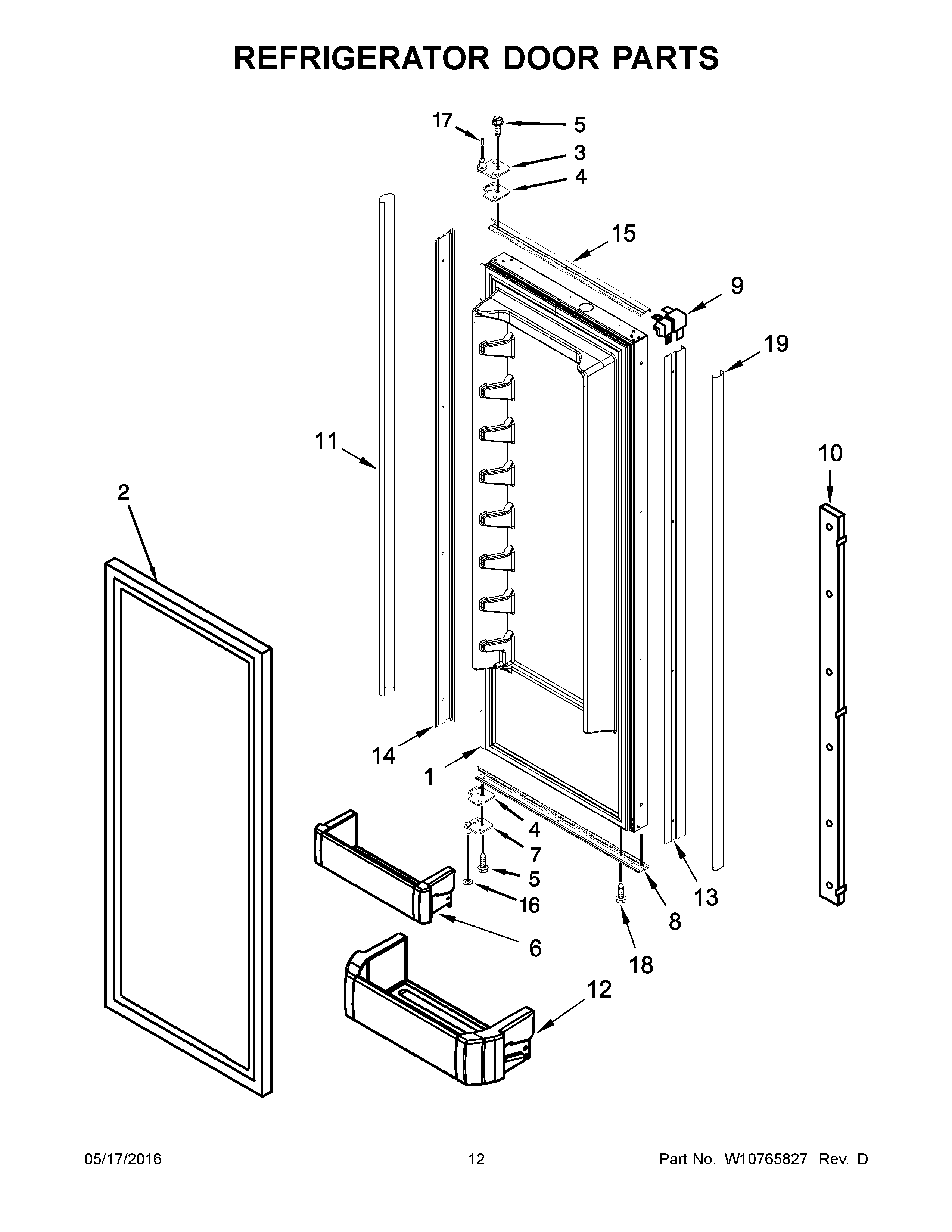

KBFN402EPA00 07 – REFRIGERATOR DOOR PARTS

KBFN402EPA00 07 – REFRIGERATOR DOOR PARTS

Written by

in

KBFN402EPA00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10782312 Whirlpool Refrigerator Door Assembly
1AW10782316 Whirlpool Refrigerator Door Assembly
2W10600741 Whirlpool Refrigerator Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6W10323598 Whirlpool Refrigerator Cantilever Bin
7AW10273367 Whirlpool Refrigerator Door Hinge
7W10273369 Whirlpool Refrigerator Door Hinge
82314031S Whirlpool Refrigerator Door Trim
92207457 Whirlpool Refrigerator Door Trim
10W10757111 Whirlpool Refrigerator Mullion Rail
112309022S Whirlpool Refrigerator Trim Cover
12W10323746 Whirlpool Refrigerator Cantilever Bin
132314030S Whirlpool Refrigerator Door Trim
142309031S Whirlpool Refrigerator Door Trim
152314028S Whirlpool Refrigerator Door Trim
16WP2006346 Whirlpool Refrigerator Washer
17W11500952 Whirlpool Refrigerator Hinge Bushing
18WP8281250 Whirlpool Refrigerator Screw
192309021S Whirlpool Refrigerator Cover Trim
