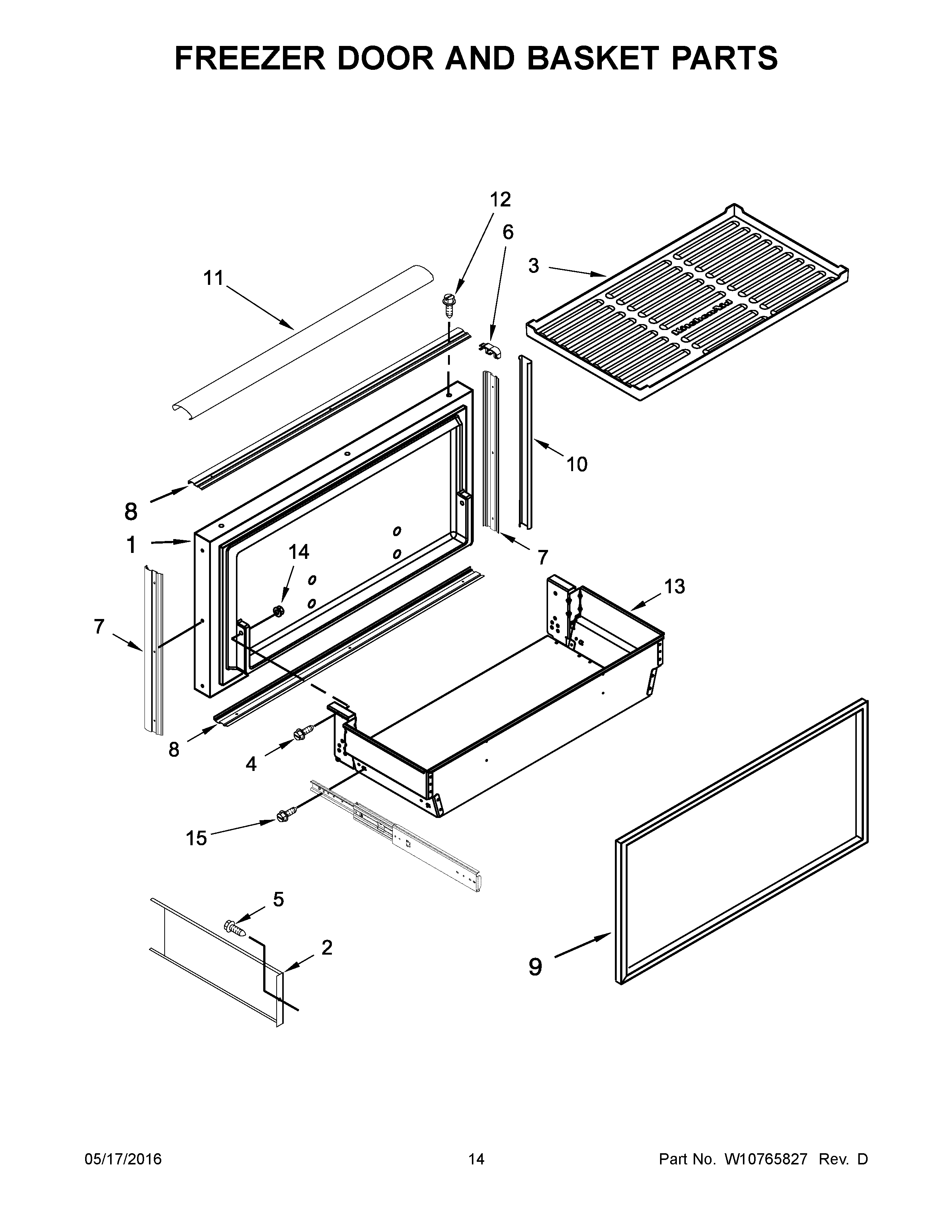

KBFN402EPA00 08 – FREEZER DOOR AND BASKET PARTS

KBFN402EPA00 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBFN402EPA00 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782357 Whirlpool Refrigerator Door Assembly
2Divider, Basket (2)
3W10665413 Whirlpool Refrigerator Mat
4W10761334 Whirlpool Screw Assembly
5WP488234 Whirlpool Air Conditioner Screw
62258903 Whirlpool Refrigerator Door Trim
72313999S Whirlpool Refrigerator Door Trim
82313998S Whirlpool Refrigerator Door Trim
9W10803138 Whirlpool Refrigerator Gasket
102309213S Whirlpool Refrigerator Cover Trim
11Cover-Trim, Top
12WP8281250 Whirlpool Refrigerator Screw
13W10770922 Whirlpool Refrigerator Freezer Basket
14NUT
15W10109030 Whirlpool Refrigerator Screw
