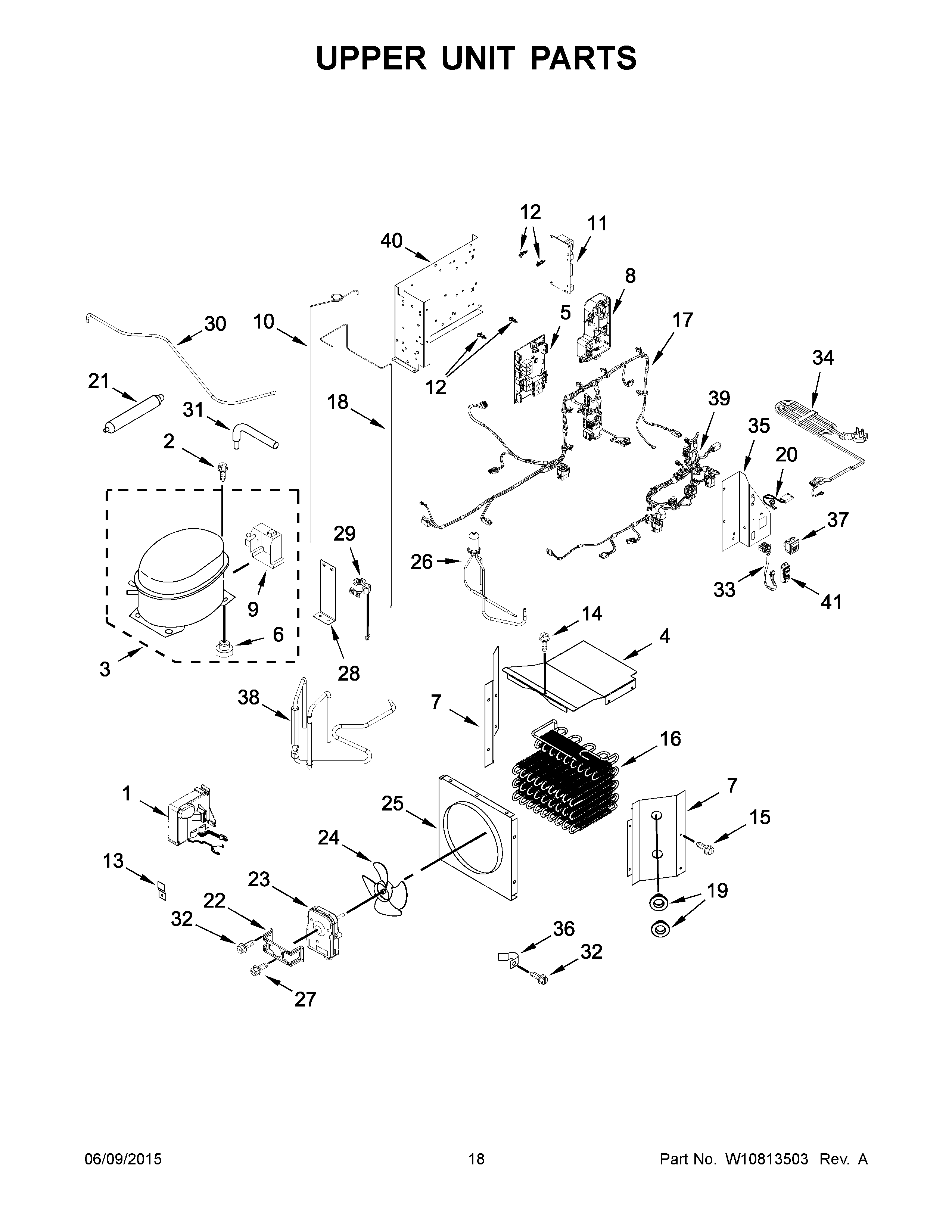

KBFN402EPA01 10 – UPPER UNIT PARTS

KBFN402EPA01 10 – UPPER UNIT PARTS

Written by

in

KBFN402EPA01 10 – UPPER UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
1	W10721030 Whirlpool Refrigerator Inverter Box
2	SCREW
3	8201675 Whirlpool Refrigerator Compressor
4	W10525175 Whirlpool Refrigerator Cover
5	WPW10739408-includeCORE Whirlpool WPW10739408 Refrigerator Electronic Control Board + Core
6	W11661108 Whirlpool Grommet
7A	WPW10525179 Whirlpool Plate
7	WPW10525177 Whirlpool Plate
8	W11368839 Whirlpool Refrigerator Inverter Box
9	2215676 Whirlpool Refrigerator Terminal Cover
10	W10720079 Whirlpool Refrigerator Tube
11	WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
14	WP965173 Whirlpool Dishwasher Screw
15	WP489069 Whirlpool Compactor Screw
16	W10591457 Whirlpool Refrigerator Condenser
17	W10565844 Whirlpool Refrigerator Wire Harness
18	W10720080 Whirlpool Refrigerator Tube
19	GROMMET
20	2310195 Whirlpool Refrigerator Wire Jumper
21	WPW10143759 Whirlpool Dryer Filter
22	W10414681 Whirlpool Bracket
23	W11578915 Whirlpool Condenser Motor
24	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25	W10415670 Whirlpool Orifice
26	W11647768 Whirlpool Refrigerator Valve
27	WP8533993 Whirlpool Refrigerator Screw
28	BRACKET, 3 WAY VALVE
29	WPW10364560 Whirlpool Refrigerator Solenoid
30	W10555310 Whirlpool Refrigerator Tube
31	W10528578 Whirlpool Refrigerator Tube
32	W11624204 Whirlpool Screw
34	2310196 Whirlpool Refrigerator Power Cord
35	W10625531 Whirlpool Refrigerator Bracket
36	549193 Whirlpool Refrigerator Power Clamp
37	WP2266802 Whirlpool Refrigerator Switch
38	W10545389 Whirlpool Refrigerator Tube
39	W10565841 Whirlpool Refrigerator Wire Harness
40	W10550831 Whirlpool Refrigerator Housing
41	W10625259 Whirlpool Refrigerator Jumper Wire
