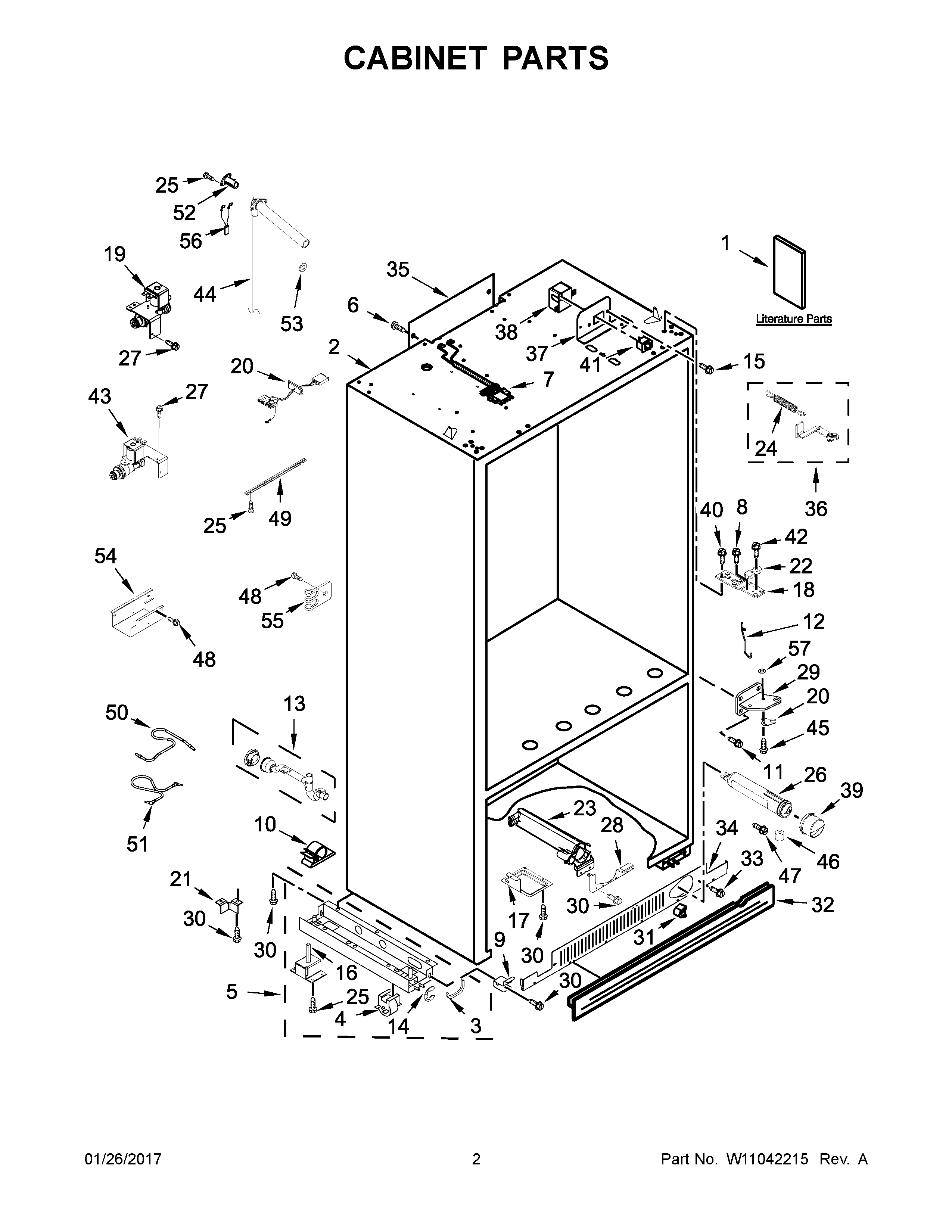

KBFN402EPA02 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
1E	TECH SHEET (FRENCH)
1D	TECH SHEET (ENGLISH)
1B	WIRING DIAGRAM
1C	INSTALLATION INSTRUCTIONS
2	CABINET (NOT A SERVICEABLE PART)
3	2307584 Whirlpool Refrigerator Grommet
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5A	W10860448 Whirlpool Refrigerator Support
6	WP1163283 Whirlpool Air Conditioner Screw
7	W10745694 Whirlpool Refrigerator Jumper Wire
8	WP8281164 Whirlpool Refrigerator Screw
9	W10839844 Whirlpool Refrigerator Bracket
10	CLIP
11	W11474472 Whirlpool Screw
12	WPL W10577944
13	W11291510 Whirlpool Refrigerator Valve
14	2006841 Whirlpool Ring
15	WP965173 Whirlpool Dishwasher Screw
16	2005032 Whirlpool Refrigerator Leveler
17	2318189 Whirlpool Refrigerator Drip Pan
18	W11218690 Whirlpool Refrigerator Door Hinge
19	W11246413 Whirlpool Refrigerator Inlet Valve
20	W10565837 Whirlpool Refrigerator Wire Harness
21	2006617 Whirlpool Refrigerator Bracket
22	W11403572 Whirlpool Refrigerator Bracket
23	WPW10121140 Whirlpool Refrigerator Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	WP489069 Whirlpool Compactor Screw
28	W10674648 Whirlpool Refrigerator Bracket
29	W10337505 Whirlpool Refrigerator Door Hinge
30	WP8533928 Whirlpool Refrigerator Screw
31	WP2260503B Whirlpool Refrigerator Button
32	WPW10188549 Whirlpool Refrigerator Front Grille
34	W10861748 Whirlpool Refrigerator Front Grille
35	2215612 Whirlpool Refrigerator Duct Cover
36A	WP2307857 Whirlpool Refrigerator Extension
36	WPW10121046 Whirlpool Refrigerator Extension
37	W10741112 Whirlpool Refrigerator Bracket
37A	W10741111 Whirlpool Refrigerator Bracket
38	2215938 Whirlpool Refrigerator Switch Cover
39	W11238395 Whirlpool Refrigerator Filter Cap
40	W11189635 Whirlpool Refrigerator Screw
41	W11384469 Whirlpool Door Switch
42	Screw, Door Stop
43	W11225845 Whirlpool Refrigerator Inlet Valve
44	2317847 Whirlpool Refrigerator Water Tube
45	WP488234 Whirlpool Air Conditioner Screw
46	2005433 Whirlpool Refrigerator Spacer
47	WP9741232 Whirlpool Dishwasher Screw
48	WP489464 Whirlpool Refrigerator Screw
49	Support, Valve
50	W10619899 Whirlpool Refrigerator Water Tube
51	W10635851 Whirlpool Refrigerator Water Tube
52	WP2221240 Whirlpool Refrigerator Heater
53	WP1106508 Whirlpool Refrigerator Gasket
54	W10619291 Whirlpool Refrigerator Shield
55	WP488366 Whirlpool Refrigerator Clamp
56	W10482373 Whirlpool Refrigerator Jumper Wire
57	2314023 Whirlpool Bushing
