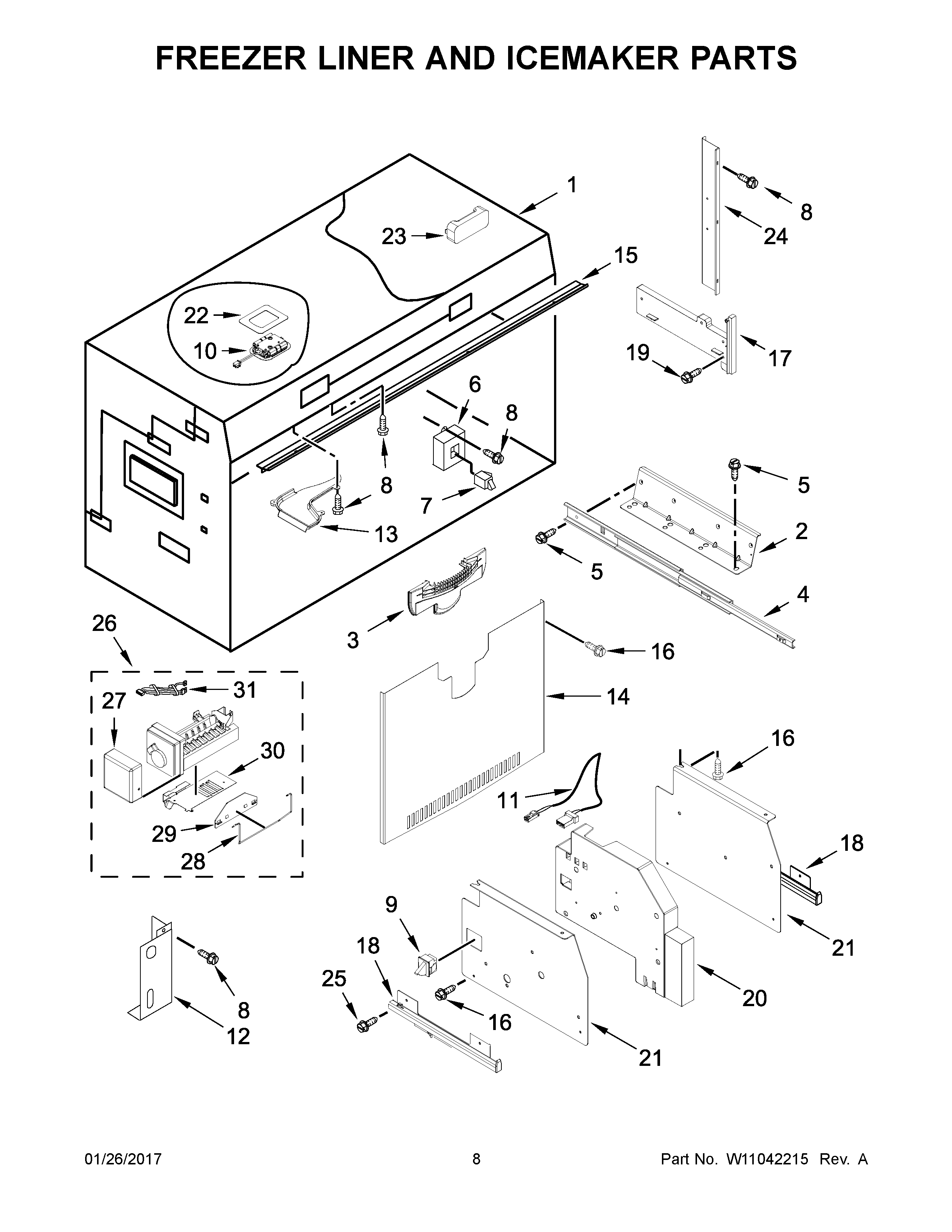

KBFN402EPA02 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10744329 Whirlpool Refrigerator Support
3W10541687 Whirlpool Grille Assembly
4W11650036 Whirlpool Slide
5Screw
6W10606833 Whirlpool Cover
7W11670534 Whirlpool Refrigerator Switch
8W11624204 Whirlpool Screw
9W11396033 Whirlpool Refrigerator Rocker Switch
10W11683242 Whirlpool Refrigerator LED Light Module
11W10568445 Whirlpool Refrigerator Jumper Wire
12Cover, Wiring (Icemaker)
13DUCT, AIR FLOW (ICEMAKER)
14COVER, EVAPORATOR (WHITE)
15W10710401 Whirlpool Refrigerator Deflector
16WPW10001160 Whirlpool Refrigerator Screw
17ASPACER, DRAWER RIGHT HAND (WHITE)
17SPACER, DRAWER LEFT HAND (WHITE)
18A2306116 Whirlpool Refrigerator Slide
182306117 Whirlpool Refrigerator Slide
20DIVIDER, FREEZER (WHITE)
21SUPPORT, SLIDE (LEFT HAND)
21AW10716209 Whirlpool Refrigerator Support
22W10672548 Whirlpool Refrigerator Shim
23W10609678 Whirlpool Refrigerator Cover
24ASSEMBLY, EVAPORATOR COVER RAIL
25WP488163 Whirlpool Refrigerator Screw
26ICEMAKER
27WPW10289690 Whirlpool Ice Maker Cover
28W11342242 Whirlpool Refrigerator Ice Level Arm
29W11215550 Whirlpool Ice Level Arm
30WP2221231 Whirlpool Refrigerator Shield
31W10508673 Whirlpool Refrigerator Wire Harness
