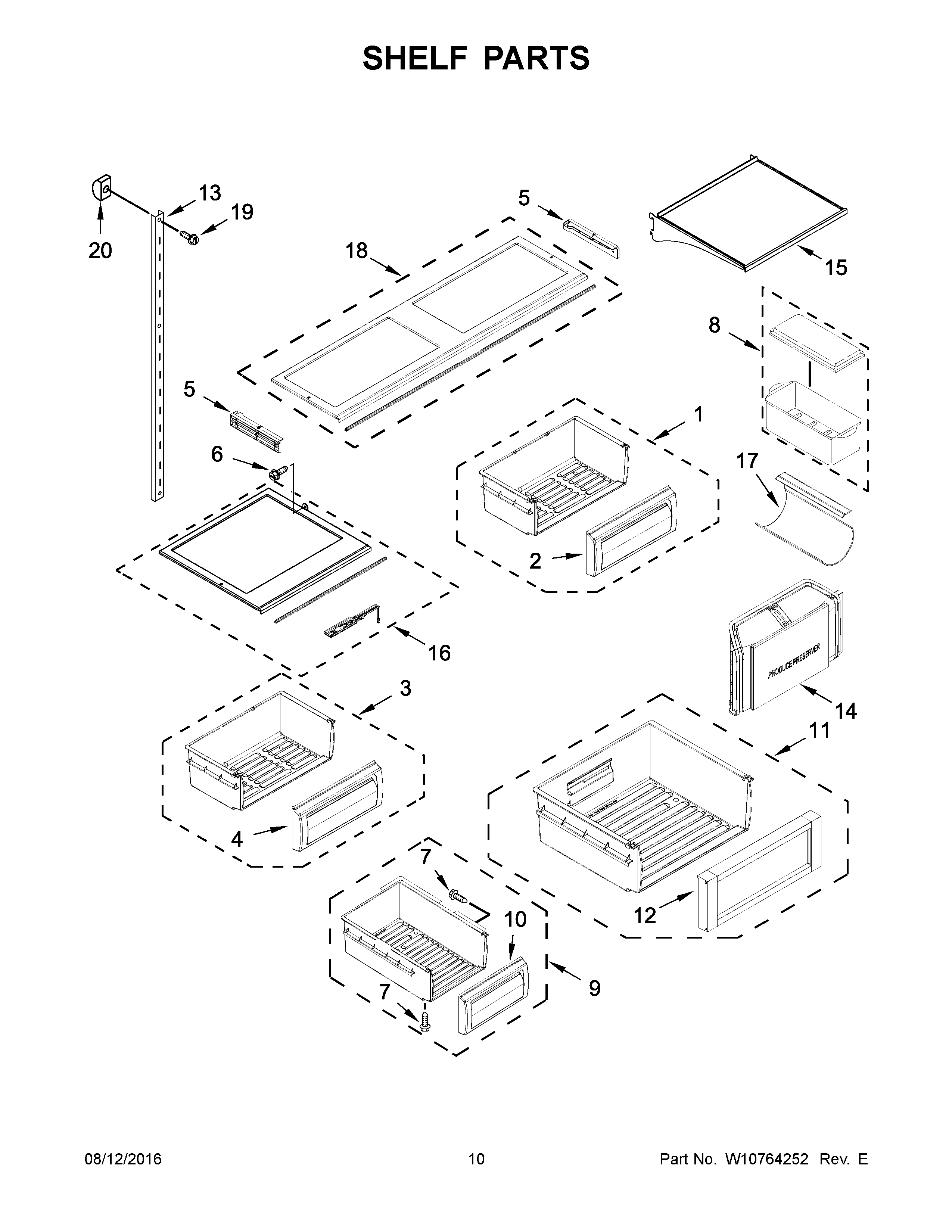

KBFN402ESS00 06 – SHELF PARTS

KBFN402ESS00 06 – SHELF PARTS

Written by

in

KBFN402ESS00 06 – SHELF PARTS

Products

PositionProduct
1ASSEMBLY, CRISPER PAN
2ASSEMBLY, CRISPER PAN FRONT
3W10758321 Whirlpool Refrigerator Crisper Pan
4ASSEMBLY, DELI PAN FRONT
5AW10711390 Whirlpool Refrigerator Support Assembly
5W10711391 Whirlpool Refrigerator Support
62006475 Whirlpool Refrigerator Screw
7WP488787 Whirlpool Refrigerator Screw
8Egg Bin Assembly
9W10733946 Whirlpool Ice Pan
102306175 Whirlpool Refrigerator Front Pan
112327511 Whirlpool Refrigerator Pan
12WP2256367 Whirlpool Refrigerator Front Pan
13ALADDER, SHELF CENTER (WHITE)
13LADDER, SHELF LEFT AND RIGHT HAND (WHITE)
14ASSEMBLY, PRODUCE PRESERVER
15WPW10568583 Whirlpool Refrigerator Glass Shelf
16AWPW10570404 Whirlpool Glass Shelf
16WPW10707766 Whirlpool Glass Shelf
17W10701859 Whirlpool Refrigerator Wine Rack
18WPW10708355 Whirlpool Glass Shelf
19W11624204 Whirlpool Screw
20520965 Whirlpool Refrigerator Support
