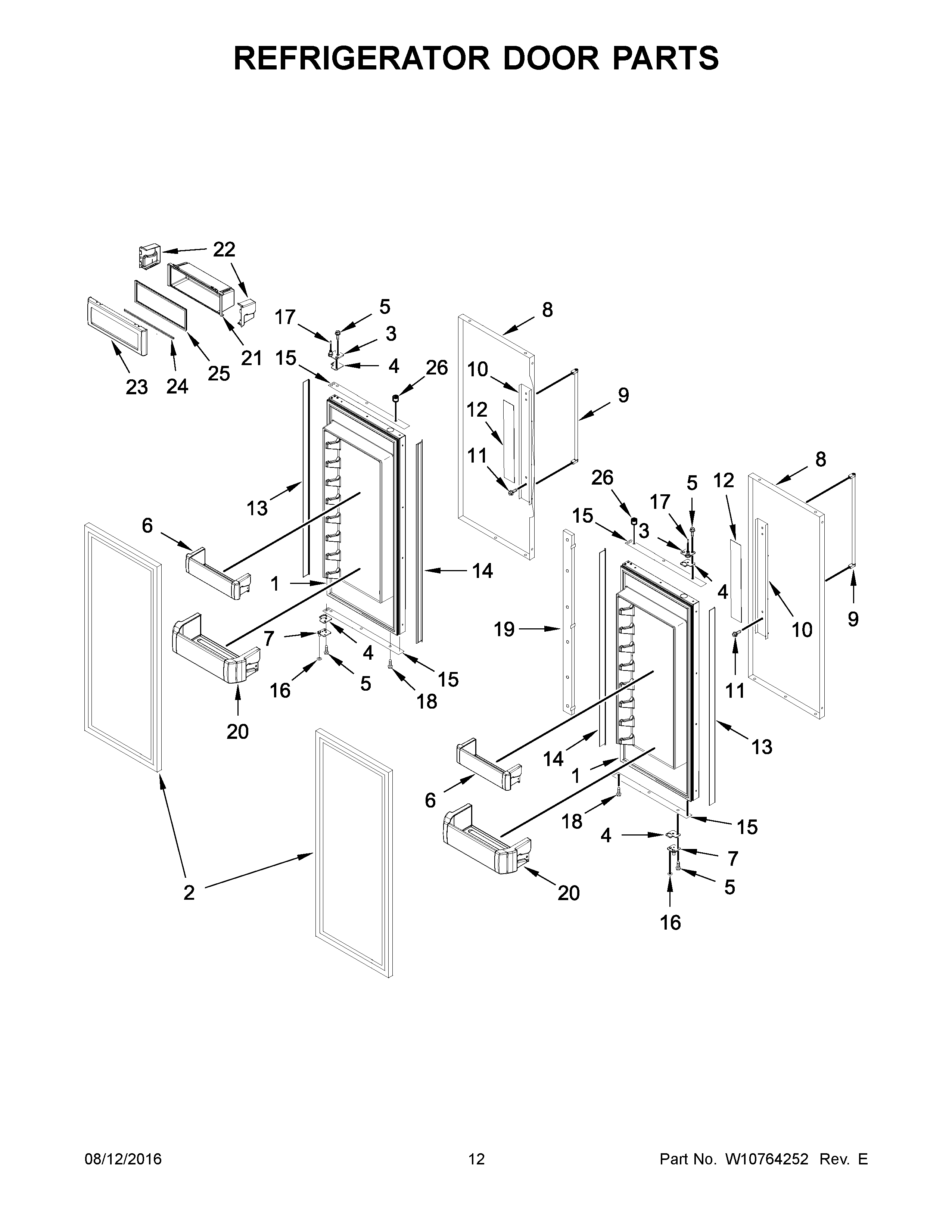

KBFN402ESS00 07 – REFRIGERATOR DOOR PARTS

KBFN402ESS00 07 – REFRIGERATOR DOOR PARTS

Written by

in

KBFN402ESS00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW10782316 Whirlpool Refrigerator Door Assembly
1W10782312 Whirlpool Refrigerator Door Assembly
2W10600741 Whirlpool Refrigerator Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6W10323598 Whirlpool Refrigerator Cantilever Bin
7W10273369 Whirlpool Refrigerator Door Hinge
7AW10273367 Whirlpool Refrigerator Door Hinge
8W10799265 Whirlpool Refrigerator Door Skin
9W10783284 Whirlpool Refrigerator Handle
10W10127710 Whirlpool Refrigerator Plate
11WP308544 Whirlpool Screw
12Filler, Foam
13W10600734 Whirlpool Refrigerator Spacer
14W10600736 Whirlpool Refrigerator Spacer
15W10600732 Whirlpool Spacer Assembly
16WP2006346 Whirlpool Refrigerator Washer
17W11500952 Whirlpool Refrigerator Hinge Bushing
18WP8281250 Whirlpool Refrigerator Screw
19W10757111 Whirlpool Refrigerator Mullion Rail
20W10323746 Whirlpool Refrigerator Cantilever Bin
21WPW10323035 Whirlpool Refrigerator Cantilever Bin
22WPW10323173 Whirlpool Refrigerator Retainer End Cap
22AWPW10323172 Whirlpool Refrigerator Retainer End Cap
23WPW10131132 Whirlpool Refrigerator Door Compressor
242222795 Whirlpool Refrigerator Rail
25WP2222981 Whirlpool Refrigerator Gasket
262005433 Whirlpool Refrigerator Spacer
