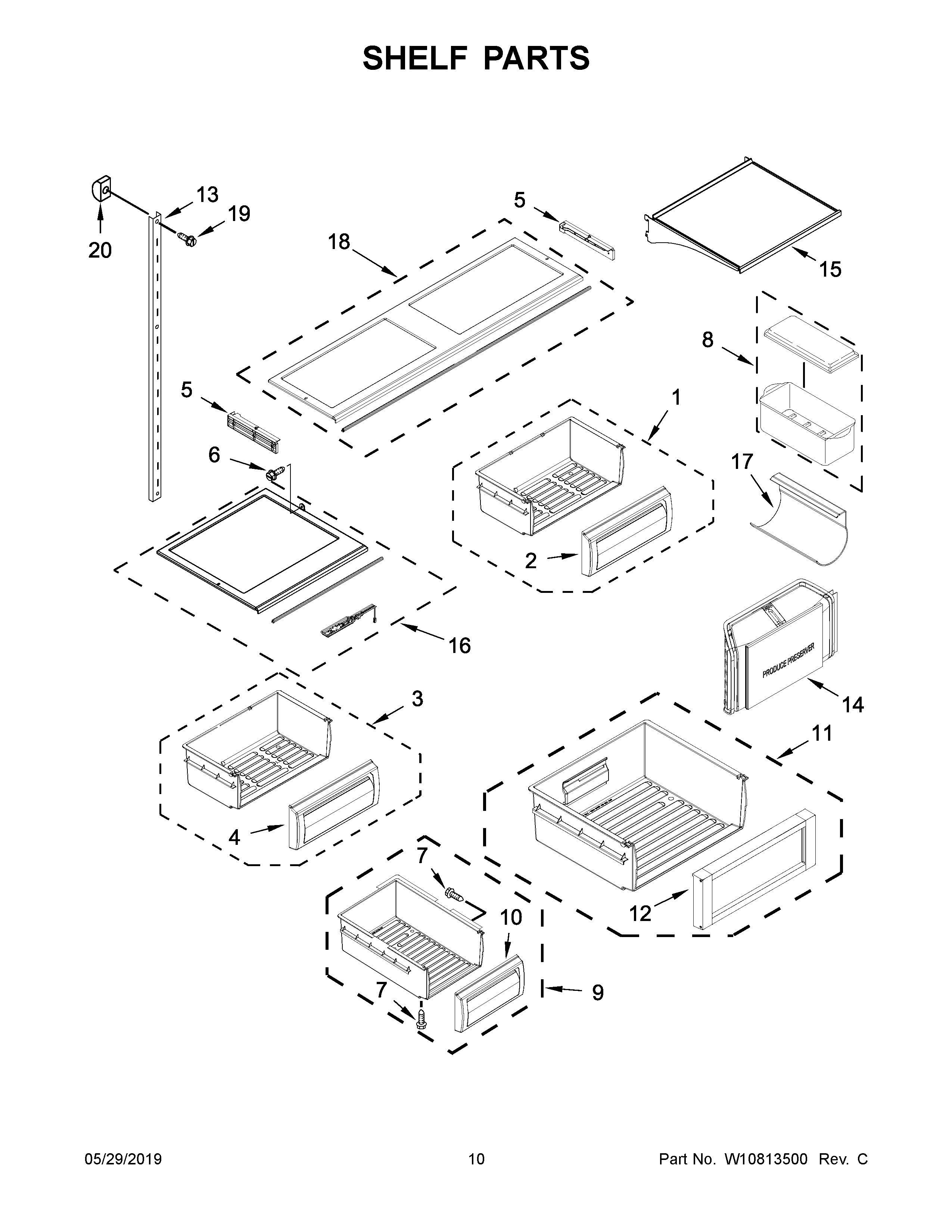

KBFN402ESS01 06 – SHELF PARTS

Products

Position	Product
1	ASSEMBLY, CRISPER PAN
2	ASSEMBLY, CRISPER PAN FRONT
3	W10758321 Whirlpool Refrigerator Crisper Pan
4	ASSEMBLY, DELI PAN FRONT
5A	W10711390 Whirlpool Refrigerator Support Assembly
5	W10711391 Whirlpool Refrigerator Support
6	Screw 8-15 x 1/2 (White)
7	WP488787 Whirlpool Refrigerator Screw
8	Egg Bin Assembly
9	W10733946 Whirlpool Ice Pan
10	2306175 Whirlpool Refrigerator Front Pan
11	2327511 Whirlpool Refrigerator Pan
12	WP2256367 Whirlpool Refrigerator Front Pan
13	LADDER, SHELF LEFT AND RIGHT HAND (WHITE)
13A	LADDER, SHELF CENTER (WHITE)
14	W10826105 Whirlpool Refrigerator Pro Service
15	WPW10568583 Whirlpool Refrigerator Glass Shelf
16	WPW10707766 Whirlpool Glass Shelf
16A	WPW10570404 Whirlpool Glass Shelf
17	W10701859 Whirlpool Refrigerator Wine Rack
18	WPW10708355 Whirlpool Glass Shelf
19	SCREW
20	520965 Whirlpool Refrigerator Support
