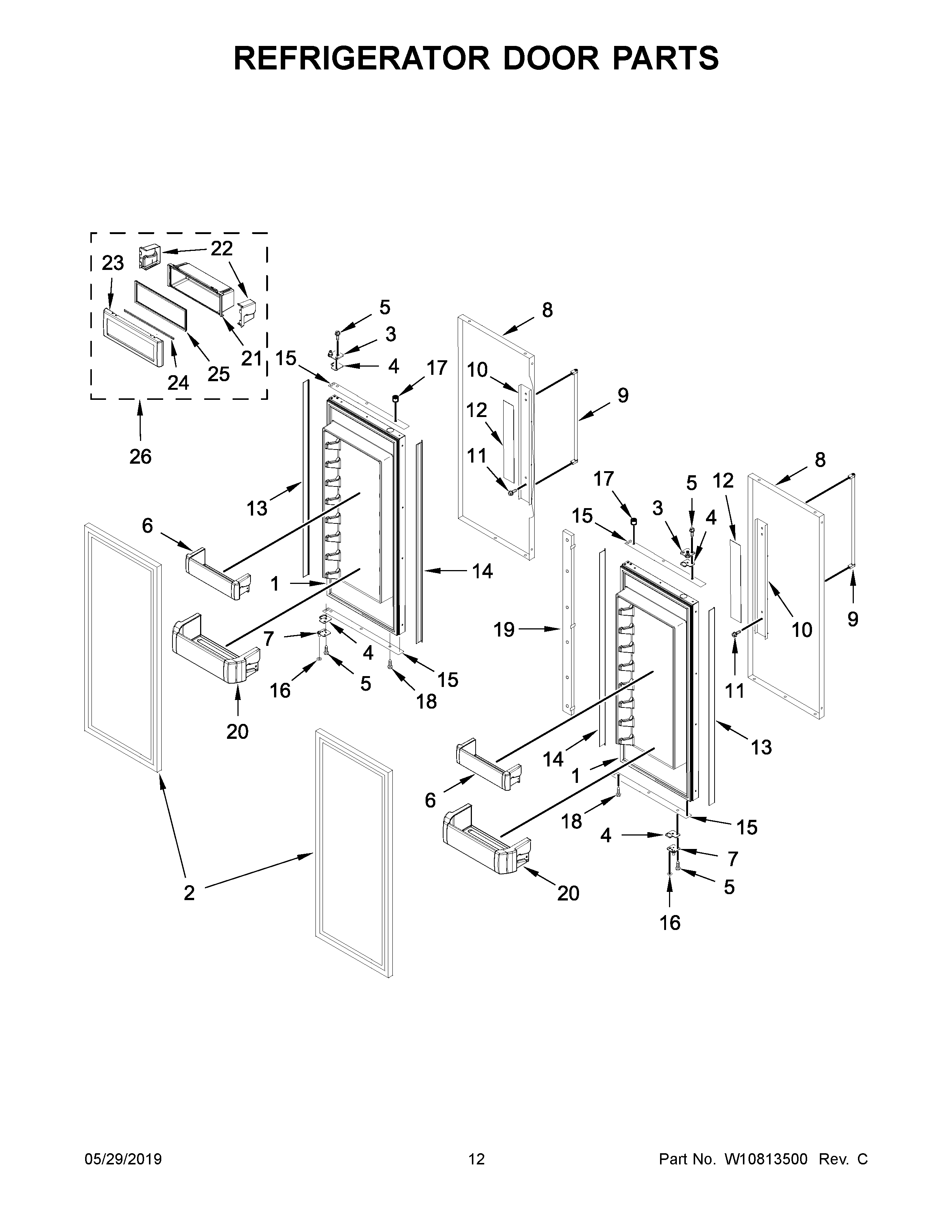

KBFN402ESS01 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W10854246 Whirlpool Refrigerator Door Assembly
1A	W10782316 Whirlpool Refrigerator Door Assembly
2	W10600741 Whirlpool Refrigerator Gasket
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	W10323598 Whirlpool Refrigerator Cantilever Bin
7A	W10273367 Whirlpool Refrigerator Door Hinge
7	W10273369 Whirlpool Refrigerator Door Hinge
8	W10799265 Whirlpool Refrigerator Door Skin
9	W10783284 Whirlpool Refrigerator Handle
10	W10127710 Whirlpool Refrigerator Plate
11	WP308544 Whirlpool Screw
12	FILLER, FOAM BOARD
13	W10600734 Whirlpool Refrigerator Spacer
14	W10600736 Whirlpool Refrigerator Spacer
15	W10600732 Whirlpool Spacer Assembly
16	WP2006346 Whirlpool Refrigerator Washer
17	2005433 Whirlpool Refrigerator Spacer
18	WP8281250 Whirlpool Refrigerator Screw
19	W10732110 Whirlpool Refrigerator Mullion Rail
20	W10323746 Whirlpool Refrigerator Cantilever Bin
21	WPW10323035 Whirlpool Refrigerator Cantilever Bin
22	WPW10323173 Whirlpool Refrigerator Retainer End Cap
22A	WPW10323172 Whirlpool Refrigerator Retainer End Cap
23	WPW10131132 Whirlpool Refrigerator Door Compressor
24	2222795 Whirlpool Refrigerator Rail
25	WP2222981 Whirlpool Refrigerator Gasket
26	W10323045 Whirlpool Refrigerator Bin
