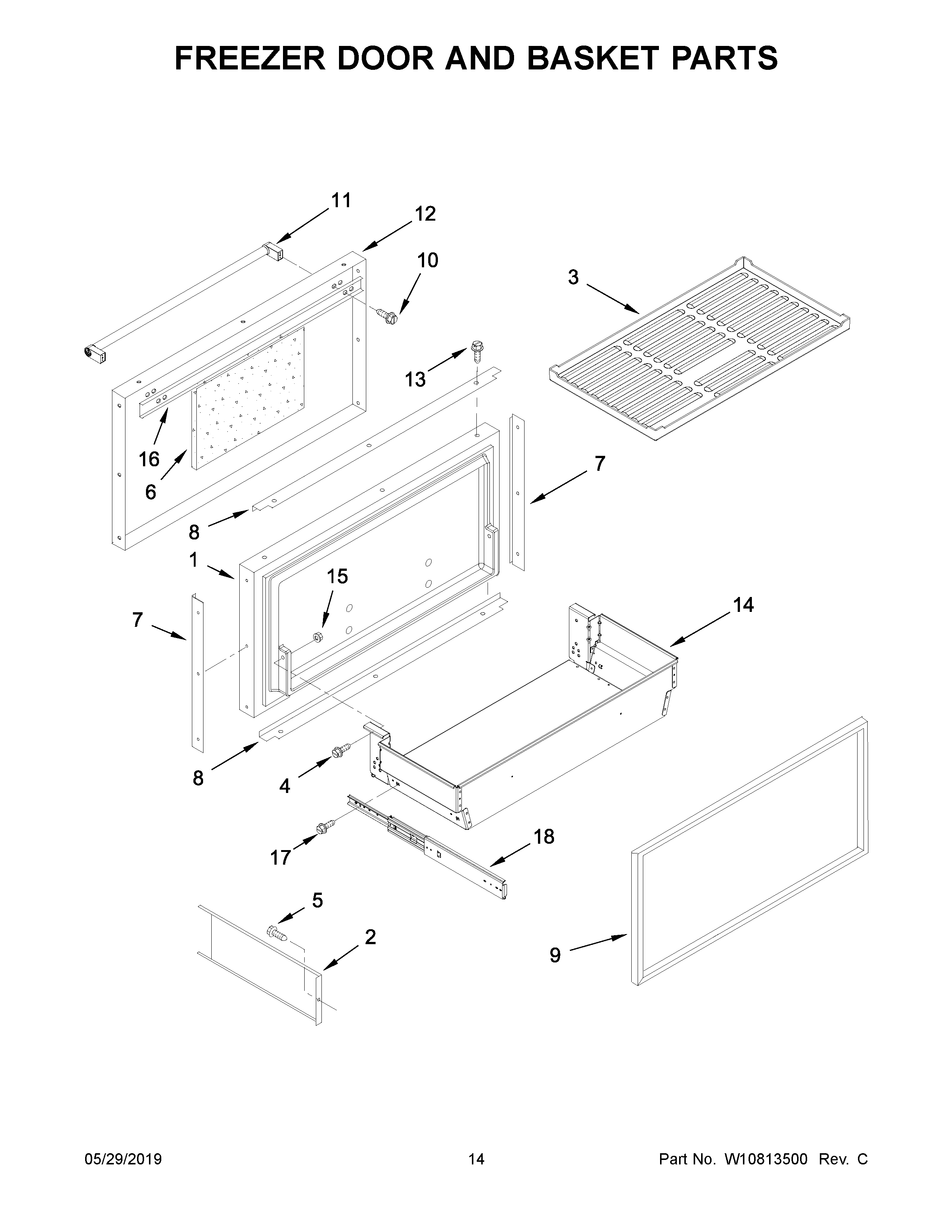

KBFN402ESS01 08 – FREEZER DOOR AND BASKET PARTS

KBFN402ESS01 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBFN402ESS01 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782357 Whirlpool Refrigerator Door Assembly
2Divider, Basket (2)
3W10665413 Whirlpool Refrigerator Mat
4W10761334 Whirlpool Screw Assembly
5WP488234 Whirlpool Air Conditioner Screw
62309219 Whirlpool Refrigerator Filler
7W10600723 Whirlpool Refrigerator Spacer
8W10600721 Whirlpool Refrigerator Spacer
9W10803138 Whirlpool Refrigerator Gasket
10WP308544 Whirlpool Screw
11W10783283 Whirlpool Refrigerator Handle
12W10799261 Whirlpool Refrigerator Door Skin
13WP8281250 Whirlpool Refrigerator Screw
14W10770922 Whirlpool Refrigerator Freezer Basket
15NUT
16W10127710 Whirlpool Refrigerator Plate
17W10109030 Whirlpool Refrigerator Screw
18SLIDE, BASKET (LEFT HAND)
18ASLIDE, BASKET (RIGHT HAND)
