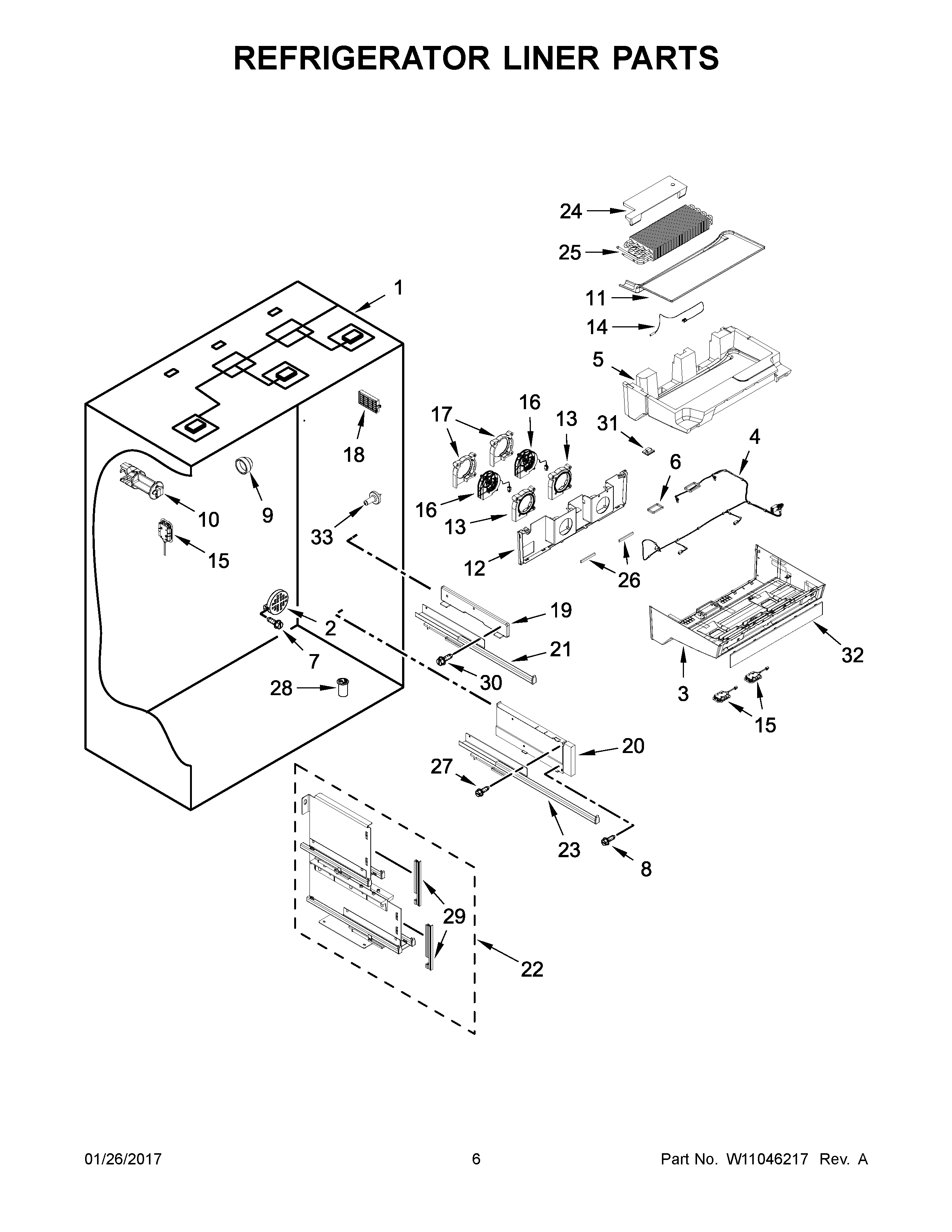

KBFN402ESS02 04 – REFRIGERATOR LINER PARTS
Written by
in
KBFN402ESS02 04 – REFRIGERATOR LINER PARTS
Products
Position
Product
1
CABINET (NOT A SERVICEABLE PART)
2
2317004 Whirlpool Refrigerator Air Cover
3
W10686637 Whirlpool Refrigerator Evaporator Cover
4
W11661567 Whirlpool Wire Harness
5
W11712700 Whirlpool Insulation
6
W10638137 Whirlpool Refrigerator Gasket
7
WP488729 Whirlpool Refrigerator Door Screw
8
W10215666 Whirlpool Refrigerator Screw
9
SUPPORT, EVAPORATOR ASSEMBLY
10
W10555493 Whirlpool Clip
11
W10555480 Whirlpool Refrigerator Shield
12
HOUSING, REAR EVAPORATOR COVER (WHITE)
13
W10538315 Whirlpool Refrigerator Housing
14
W11661569 Whirlpool Thermistor
15
W11683242 Whirlpool Refrigerator LED Light Module
16
W11678257 Whirlpool Fan
17
W10538317 Whirlpool Refrigerator Housing
18
W10311524 Whirlpool FreshFlow Refrigerator Air Filter
19
SPACER, CRISPER SLIDE (WHITE)
20
SPACER, DELI LEFT HAND (WHITE)
20A
SPACER, DELI RIGHT HAND (WHITE)
21A
W10569886 Whirlpool Refrigerator Slide
21
W10569887 Whirlpool Refrigerator Slide
22
ASSEMBLY, CENTER SUPPORT
23
W10569892 Whirlpool Refrigerator Slide
23A
W10569891 Whirlpool Refrigerator Slide
24
W10555472 Whirlpool Refrigerator Insulation
25
W11553229 Whirlpool Refrigerator Evaporator
26
W10740077 Whirlpool Refrigerator Gasket
27
WP3400886 Whirlpool Refrigerator Screw
28
WP2210509 Whirlpool Refrigerator Tub Valve
29
TRIM, CENTER SUPPORT DELI (WHITE)
29A
TRIM, CENTER SUPPORT CRISPER (WHITE)
30
WP8533928 Whirlpool Refrigerator Screw
31
CLIP, WIRING
32
W11411871-includeCORE Whirlpool W11411871 Refrigerator UI Panel with Core
33
W11527119 Whirlpool Refrigerator Shelf Stud
←
