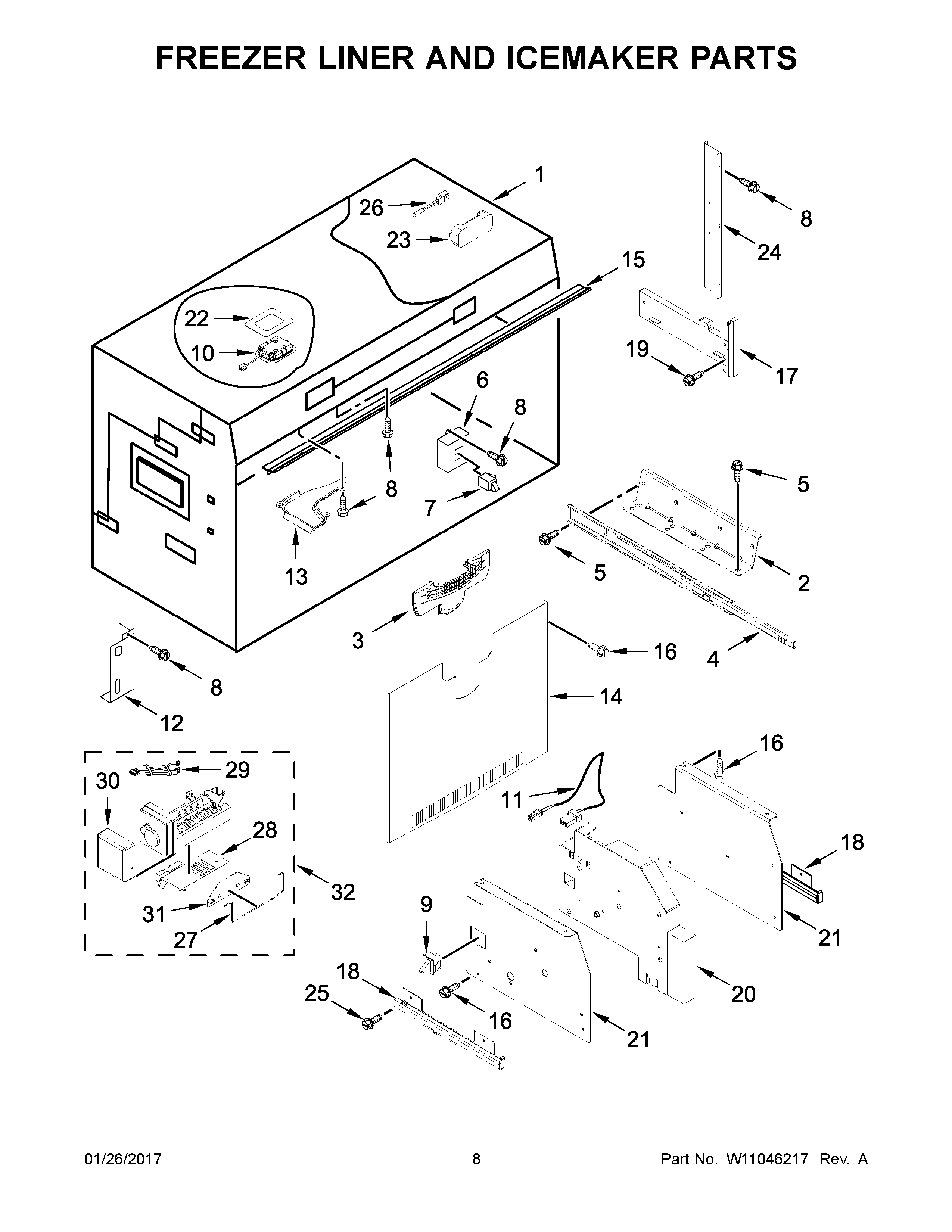

KBFN402ESS02 05 – FREEZER LINER AND ICEMAKER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10744329 Whirlpool Refrigerator Support
3	W10541687 Whirlpool Grille Assembly
4	W11650036 Whirlpool Slide
5	Screw
6	W10606833 Whirlpool Cover
7	W11670534 Whirlpool Refrigerator Switch
8	W11624204 Whirlpool Screw
9	W11396033 Whirlpool Refrigerator Rocker Switch
10	W11683242 Whirlpool Refrigerator LED Light Module
11	W10568445 Whirlpool Refrigerator Jumper Wire
12	Cover, Wiring (Icemaker)
13	DUCT, AIR FLOW (ICEMAKER)
14	COVER, EVAPORATOR (WHITE)
15	W10710401 Whirlpool Refrigerator Deflector
16	WPW10001160 Whirlpool Refrigerator Screw
17A	SPACER, DRAWER RIGHT HAND (WHITE)
17	SPACER, DRAWER LEFT HAND (WHITE)
18A	2306116 Whirlpool Refrigerator Slide
18	2306117 Whirlpool Refrigerator Slide
20	DIVIDER, FREEZER (WHITE)
21A	W10716209 Whirlpool Refrigerator Support
21	SUPPORT, SLIDE (LEFT HAND)
22	W10672548 Whirlpool Refrigerator Shim
23	W10609678 Whirlpool Refrigerator Cover
24	ASSEMBLY, EVAPORATOR COVER RAIL
25	WP488163 Whirlpool Refrigerator Screw
26	THERMISTOR
27	W11342242 Whirlpool Refrigerator Ice Level Arm
28	WP2221231 Whirlpool Refrigerator Shield
29	W10508673 Whirlpool Refrigerator Wire Harness
30	WPW10289690 Whirlpool Ice Maker Cover
31	W11215550 Whirlpool Ice Level Arm
32	ICEMAKER
