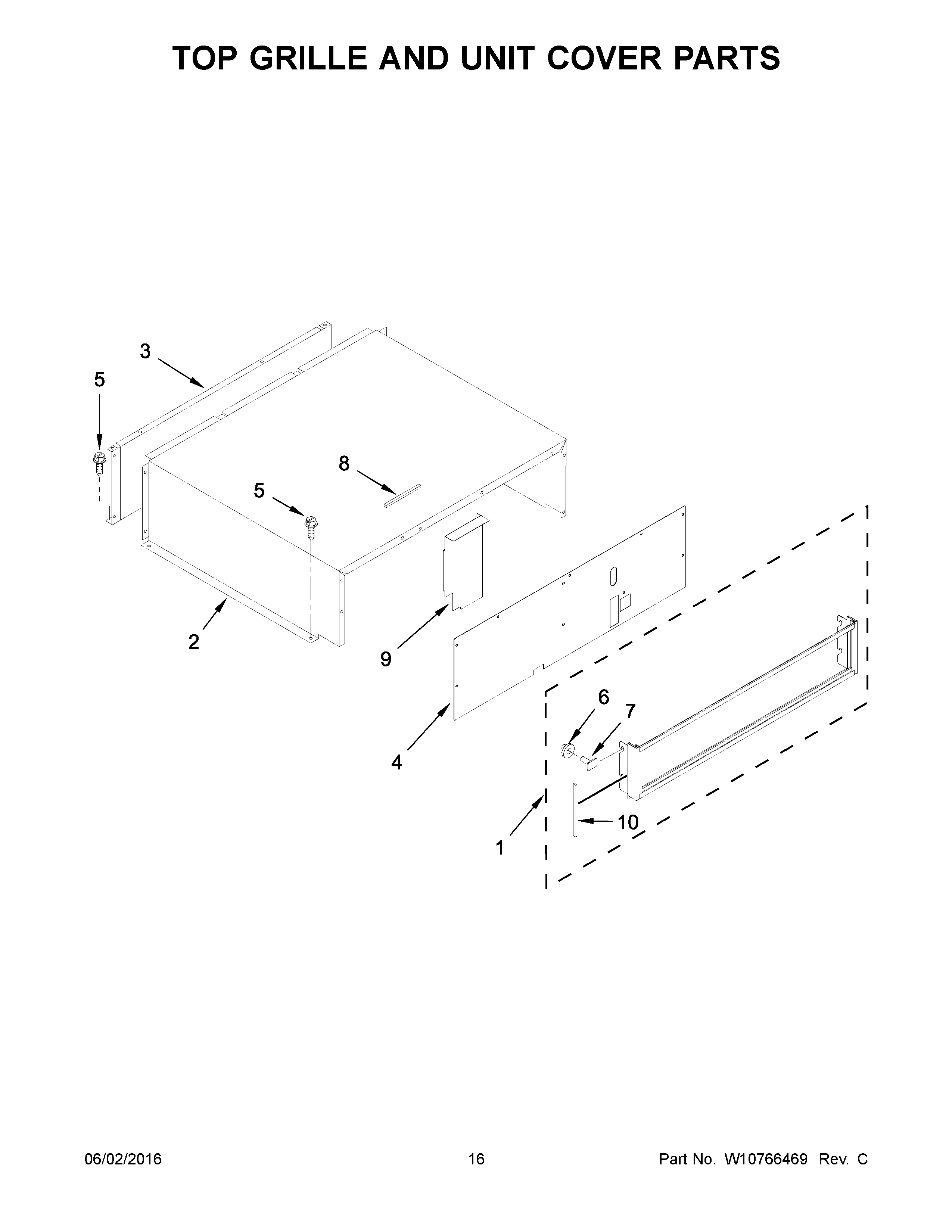

KBFN406EPA00 09 – TOP GRILLE AND UNIT COVER PARTS

KBFN406EPA00 09 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBFN406EPA00 09 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1W10780417 Whirlpool Refrigerator Upper Grille
2W10545068 Whirlpool Refrigerator Unit Cover
32256466 Whirlpool Refrigerator Unit Cover
4W10694113 Whirlpool Refrigerator Unit Cover
5WP489069 Whirlpool Compactor Screw
6WP488130 Whirlpool Air Conditioner Nut
72003347 Whirlpool Screw
8GASKET, UNIT COVER
9W10645086 Whirlpool Refrigerator Divider
10GASKET, FOAM
