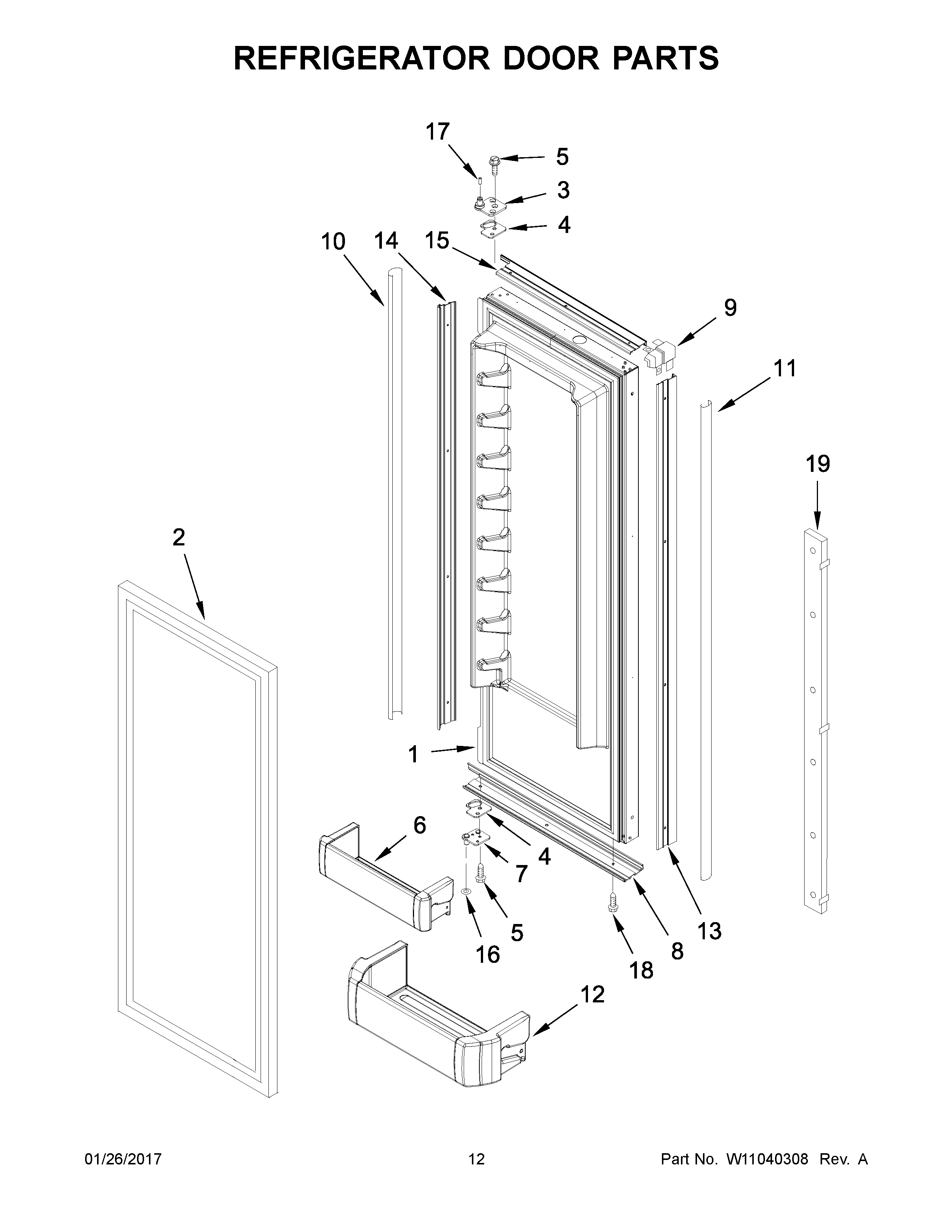

KBFN406EPA01 07 – REFRIGERATOR DOOR PARTS

KBFN406EPA01 07 – REFRIGERATOR DOOR PARTS

Written by

in

KBFN406EPA01 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW10782301 Whirlpool Refrigerator Door Assembly
1W10782300 Whirlpool Refrigerator Door Assembly
2W10871887 Whirlpool Refrigerator FIP Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6W10707724 Whirlpool Bin Controller
7AW10273367 Whirlpool Refrigerator Door Hinge
7W10273369 Whirlpool Refrigerator Door Hinge
8W10570040 Whirlpool Refrigerator Door Trim
92207457 Whirlpool Refrigerator Door Trim
10Cover, Trim (Handle Side)
112209084S Whirlpool Refrigerator Trim Cover
12W10707726 Whirlpool Control Bin
132314030S Whirlpool Refrigerator Door Trim
142309031S Whirlpool Refrigerator Door Trim
15W10570038 Whirlpool Refrigerator Door Trim
16WP2006346 Whirlpool Refrigerator Washer
17W11500952 Whirlpool Refrigerator Hinge Bushing
18WP8281250 Whirlpool Refrigerator Screw
19W10732107 Whirlpool Refrigerator Mullion Rail
