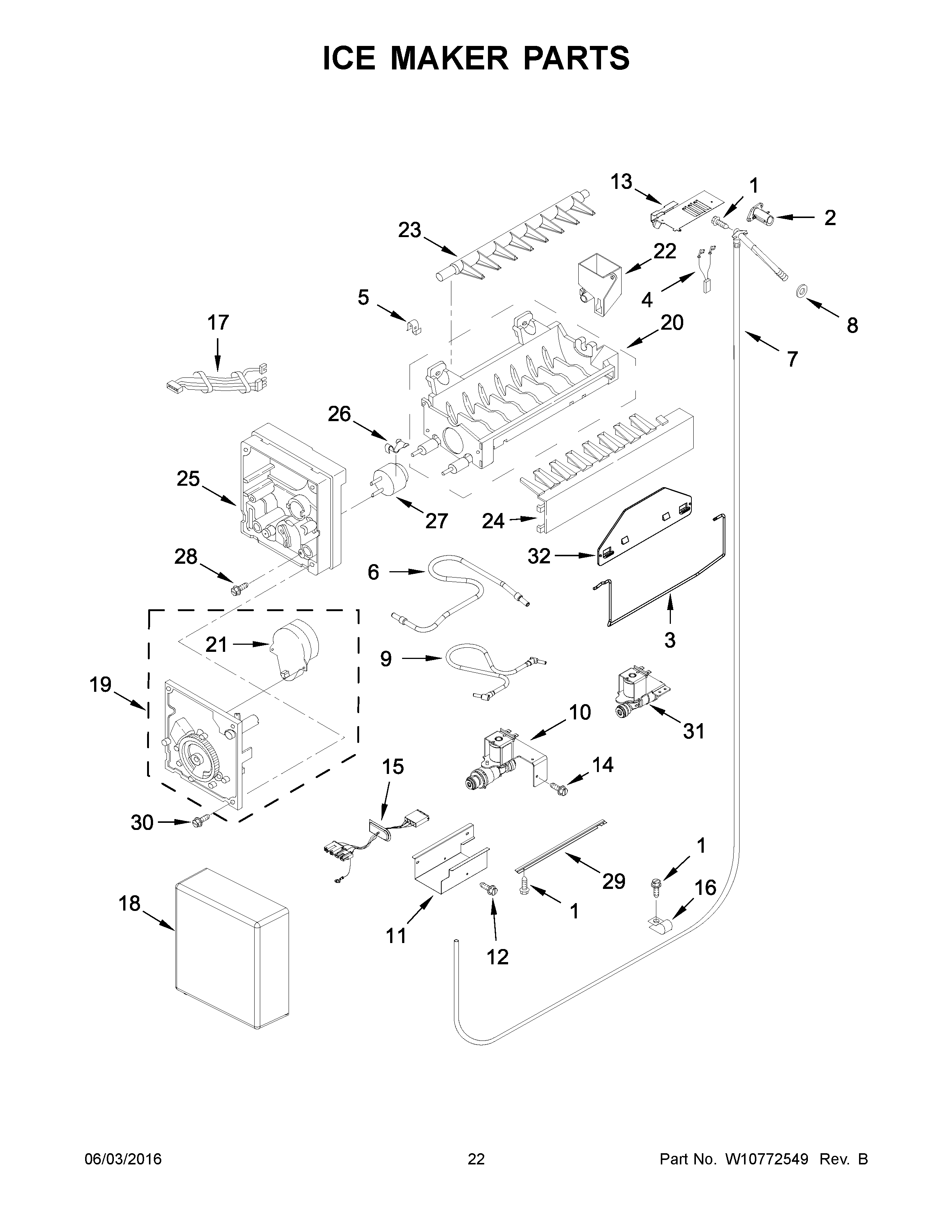

KBFN406ESS00 12 – ICE MAKER PARTS

Products

Position	Product
1	W11624204 Whirlpool Screw
2	WP2221240 Whirlpool Refrigerator Heater
3	W11342242 Whirlpool Refrigerator Ice Level Arm
4	W10482373 Whirlpool Refrigerator Jumper Wire
5	WP628379 Whirlpool Refrigerator Clip
6	W10619899 Whirlpool Refrigerator Water Tube
7	2317847 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	W10635851 Whirlpool Refrigerator Water Tube
10	W11225845 Whirlpool Refrigerator Inlet Valve
11	W10619291 Whirlpool Refrigerator Shield
12	WPW10141604 Whirlpool Screw
13	WP2221231 Whirlpool Refrigerator Shield
14	WP489069 Whirlpool Compactor Screw
15	W10565837 Whirlpool Refrigerator Wire Harness
16	WP488366 Whirlpool Refrigerator Clamp
17	W10508673 Whirlpool Refrigerator Wire Harness
18	WPW10289690 Whirlpool Ice Maker Cover
19	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	CABINET (NOT A SERVICEABLE PART)
22	W10392442 Whirlpool Refrigerator Cup Fill
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10788834 Whirlpool Strip Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	W10001280 Whirlpool Refrigerator Screw
29	Support, Valve
30	WP681249 Whirlpool Screw Assembly
31	W11246413 Whirlpool Refrigerator Inlet Valve
32	W11215550 Whirlpool Ice Level Arm
100	ICEMAKER
