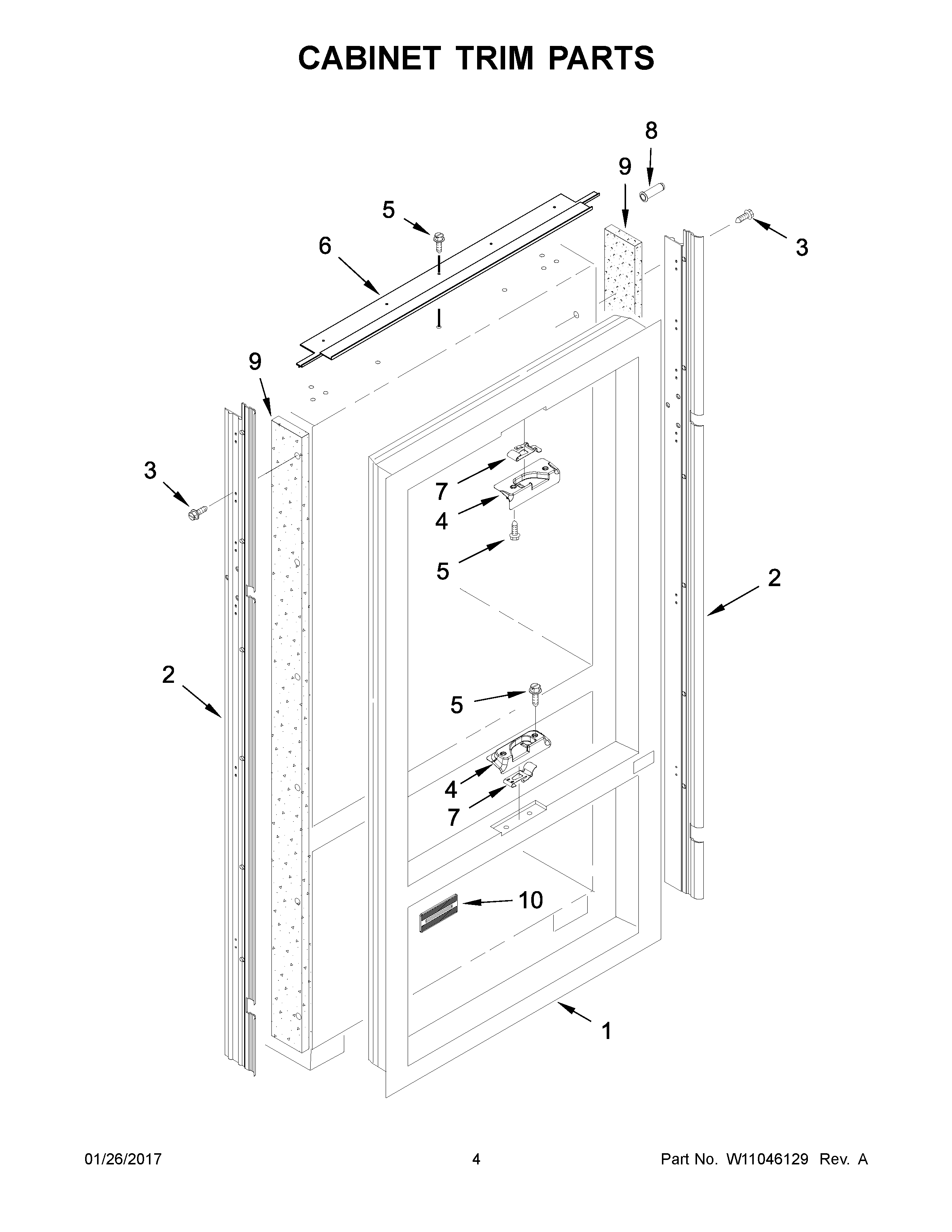

KBFN406ESS01 03 – CABINET TRIM PARTS

KBFN406ESS01 03 – CABINET TRIM PARTS

Written by

in

KBFN406ESS01 03 – CABINET TRIM PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AW11173663 Whirlpool Refrigerator Cabinet Trim
2W11173662 Whirlpool Refrigerator Cabinet Trim
3SCREW
4AW10672326 Whirlpool Refrigerator Slide
4BLOCK, PIVOT (TOP)
5W10673480 Whirlpool Refrigerator Screw
6TRIM, CABINET (TOP) (ALUMINUM)
7A2309231 Whirlpool Refrigerator Clip
72309230 Whirlpool Refrigerator Clip
8WPW10121451 Whirlpool Refrigerator Insert
9Seal, Side Trim
10COVER, HINGE (WHITE)
