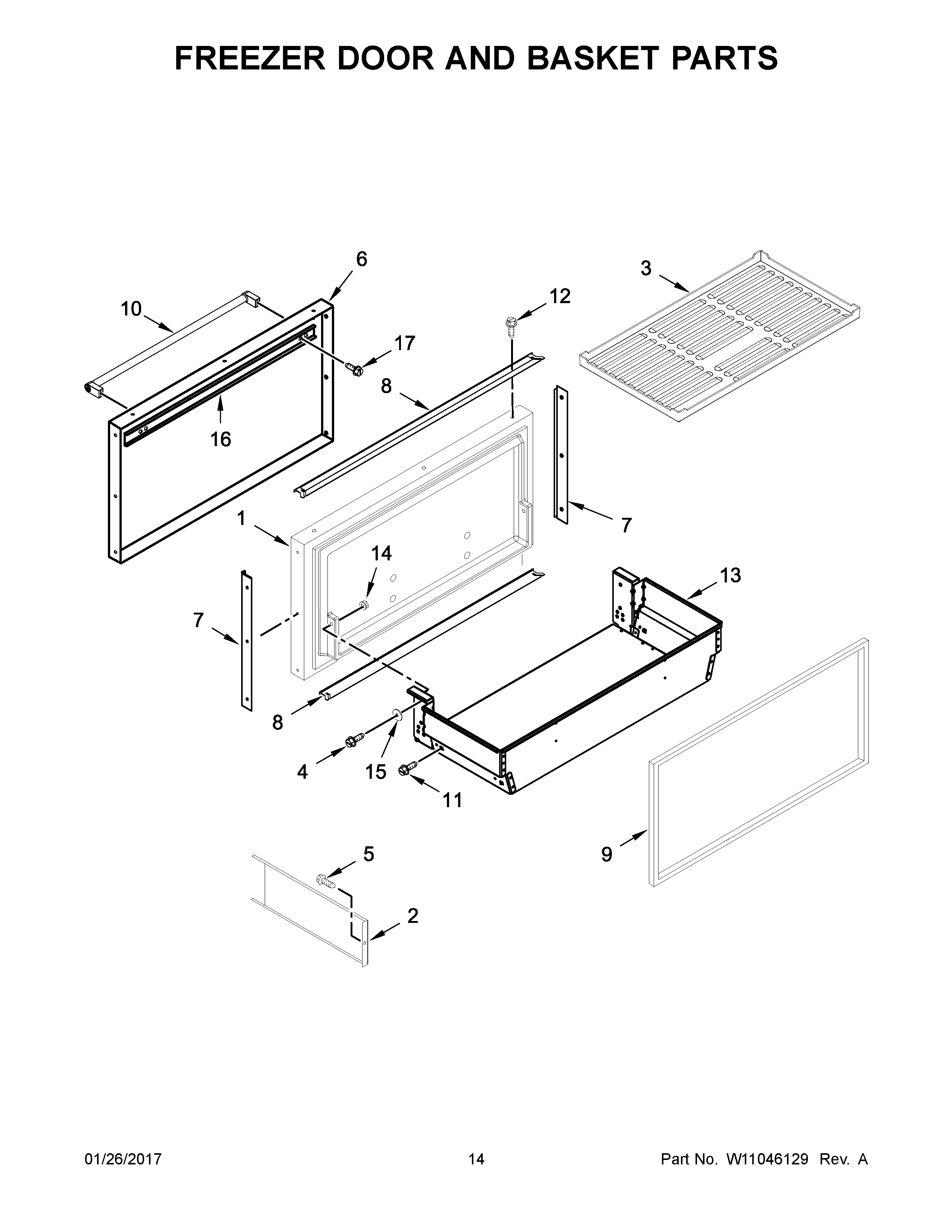

KBFN406ESS01 08 – FREEZER DOOR AND BASKET PARTS

KBFN406ESS01 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBFN406ESS01 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782351 Whirlpool Refrigerator Door Assembly
2Divider, Basket (2)
3W10665412 Whirlpool Mat
4W10761334 Whirlpool Screw Assembly
5WP488234 Whirlpool Air Conditioner Screw
6W10799262 Whirlpool Refrigerator Door Skin
7SPACER, DOOR EDGE (SIDE)
8SPACER, DOOR EDGE (TOP AND BOTTOM)
9W11625085 Whirlpool Refrigerator FIP Gasket
10W10783283 Whirlpool Refrigerator Handle
11W10109030 Whirlpool Refrigerator Screw
12WP8281250 Whirlpool Refrigerator Screw
13ASSEMBLY, FREEZER BASKET
14NUT
15WASHER
16W10127710 Whirlpool Refrigerator Plate
17WP308544 Whirlpool Screw
