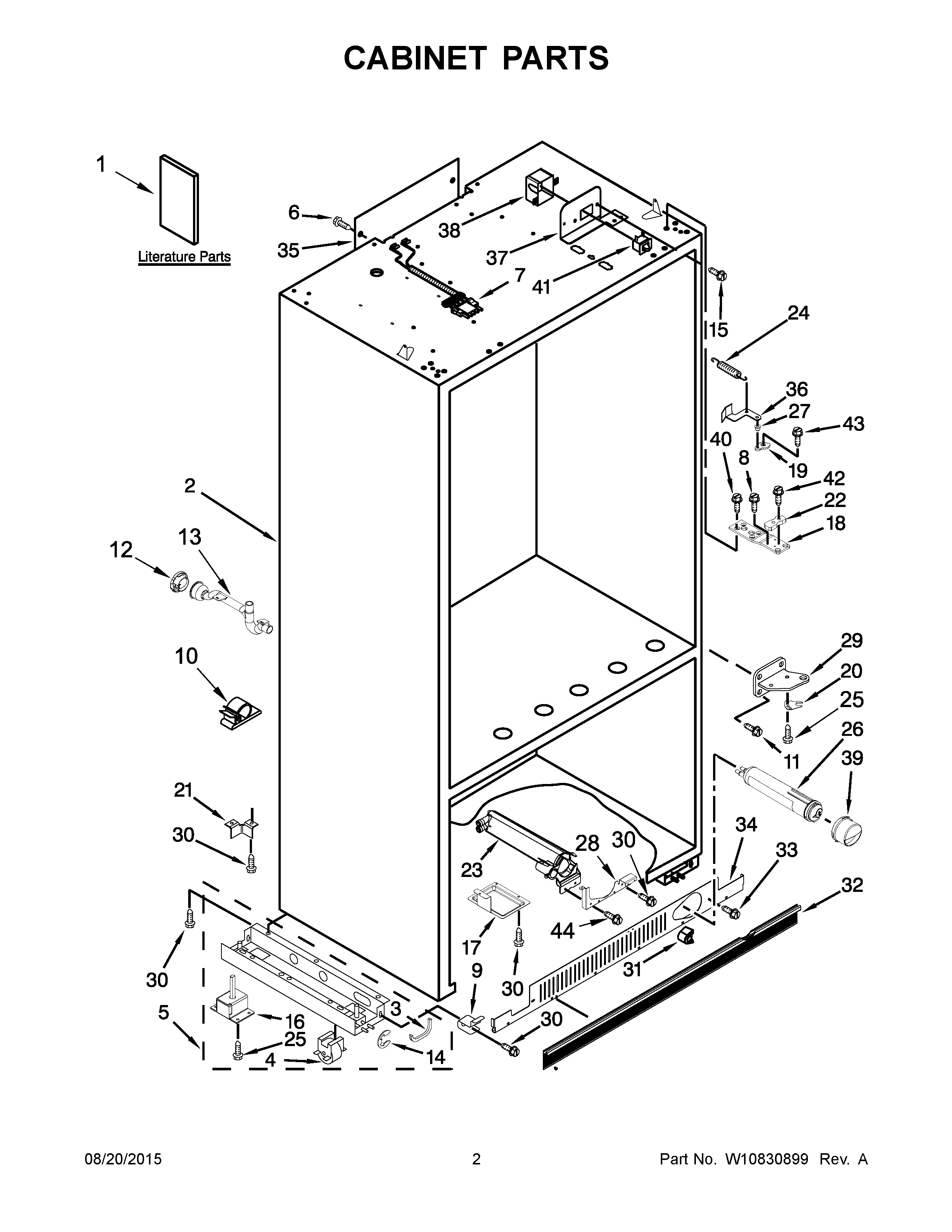

KBFN502EBS01 02 – CABINET PARTS

Products

Position	Product
1B	WIRING DIAGRAM
1A	ENERGY GUIDE
1E	TECH SHEET (FRENCH)
1C	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1D	TECH SHEET (ENGLISH)
2	CABINET (NOT A SERVICEABLE PART)
3	2307584 Whirlpool Refrigerator Grommet
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5A	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	WP1163283 Whirlpool Air Conditioner Screw
7	W10745694 Whirlpool Refrigerator Jumper Wire
8	WP8281164 Whirlpool Refrigerator Screw
9	W10839844 Whirlpool Refrigerator Bracket
10	CLIP
11	W11474472 Whirlpool Screw
12	W11291510 Whirlpool Refrigerator Valve
14	2006841 Whirlpool Ring
15	WP965173 Whirlpool Dishwasher Screw
16	2005032 Whirlpool Refrigerator Leveler
17	2318189 Whirlpool Refrigerator Drip Pan
18	W11218690 Whirlpool Refrigerator Door Hinge
19	WP2320509 Whirlpool Refrigerator Door Cam
20	WP2004994 Whirlpool Refrigerator Hinge Bushing
21	2006617 Whirlpool Refrigerator Bracket
22	W11403572 Whirlpool Refrigerator Bracket
23	WPW10121140 Whirlpool Refrigerator Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	WP2316859 Whirlpool Refrigerator Bushing
28	W10674648 Whirlpool Refrigerator Bracket
29	W10337505 Whirlpool Refrigerator Door Hinge
30	WP9741232 Whirlpool Dishwasher Screw
31	WP2260503B Whirlpool Refrigerator Button
32	WPW10188549 Whirlpool Refrigerator Front Grille
33	WP489464 Whirlpool Refrigerator Screw
34	W10861748 Whirlpool Refrigerator Front Grille
35	W10426957 Whirlpool Duct Cover
36	W11298172 Whirlpool Refrigerator Extension
36A	W10847927 Whirlpool Refrigerator Extension
37A	W10741111 Whirlpool Refrigerator Bracket
37	W10741112 Whirlpool Refrigerator Bracket
38	2215938 Whirlpool Refrigerator Switch Cover
39	W11238395 Whirlpool Refrigerator Filter Cap
40	W11189635 Whirlpool Refrigerator Screw
41	W11384469 Whirlpool Door Switch
42	Screw, Door Stop
43	WP8533980 Whirlpool Refrigerator Screw
44	WP8533928 Whirlpool Refrigerator Screw
