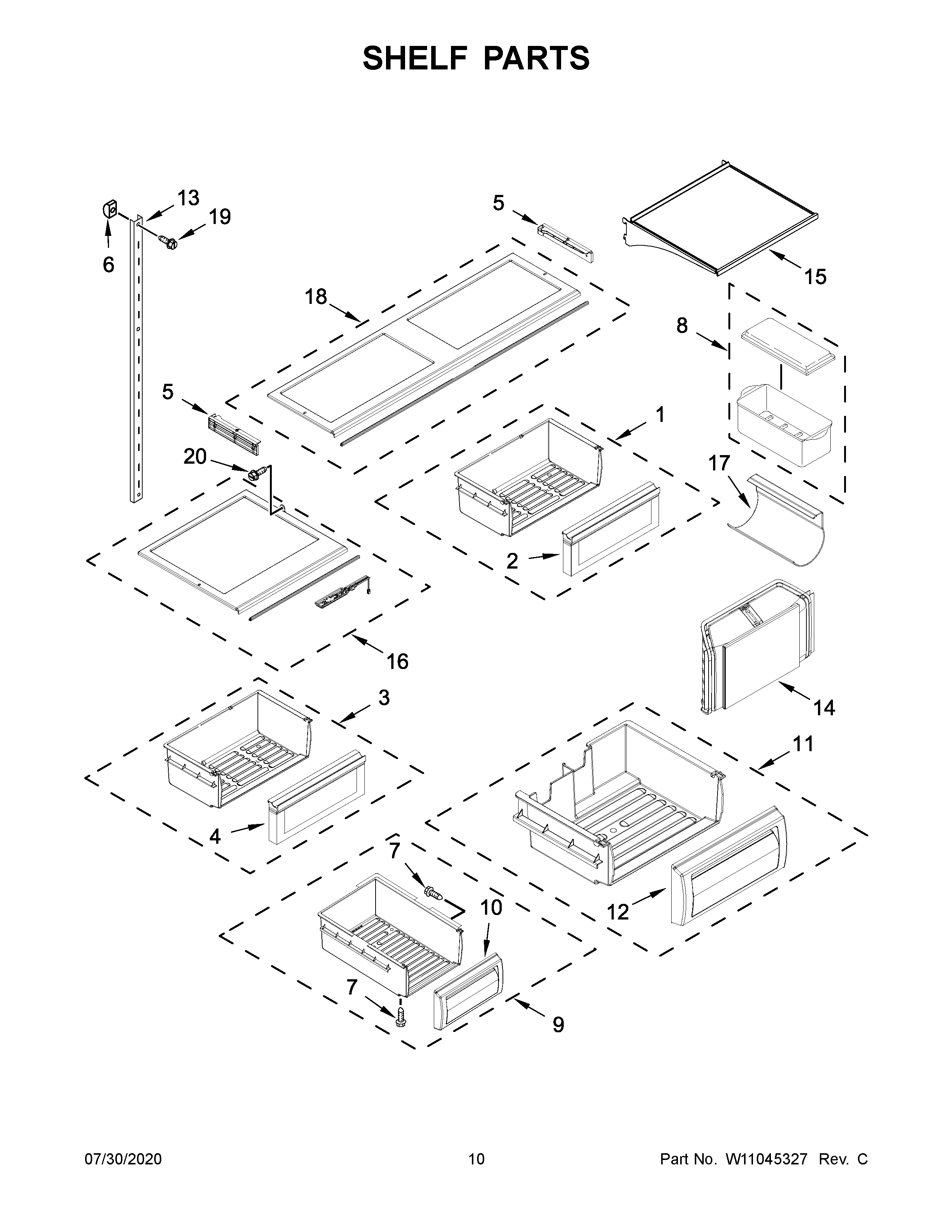

KBFN502EBS02 06 – SHELF PARTS

Products

Position	Product
1	W10529578 Whirlpool Refrigerator Crisper Drawer
2	ASSEMBLY, CRISPER PAN FRONT
3	W10529585 Whirlpool Refrigerator Crisper Drawer
4	ASSEMBLY, DELI PAN FRONT
5	SUPPORT
5A	SUPPORT
6	520965 Whirlpool Refrigerator Support
7	WP488787 Whirlpool Refrigerator Screw
8	Egg Bin Assembly
9	W10600690 Whirlpool Refrigerator Ice Pan
10	W10600687 Whirlpool Front Pan
11	W10600700 Whirlpool Refrigerator Pan
12	W10600696 Whirlpool Refrigerator Front Panel
13	W10633565 Whirlpool Refrigerator Ladder
13A	LADDER
14	W10826105 Whirlpool Refrigerator Pro Service
15	WPW10568583 Whirlpool Refrigerator Glass Shelf
16	WPW10570403 Whirlpool Refrigerator Glass Shelf
16A	WPW10570404 Whirlpool Glass Shelf
17	W10701859 Whirlpool Refrigerator Wine Rack
18	WPW10578274 Whirlpool Refrigerator Glass Shelf
19	SCREW
20	SCREW (METEORITE)
