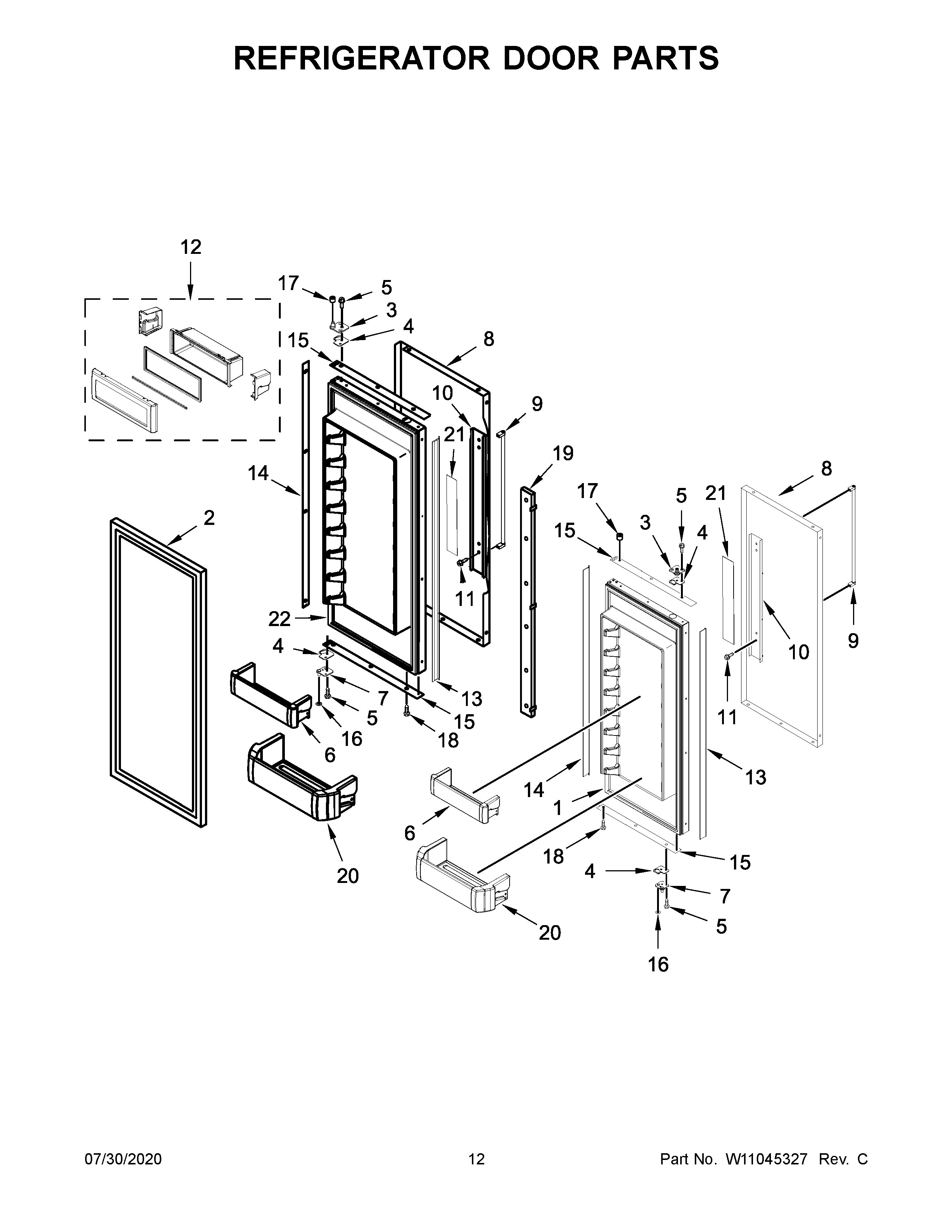

KBFN502EBS02 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10854244 Whirlpool Refrigerator Door Assembly
2W10600741 Whirlpool Refrigerator Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6W10529548 Whirlpool Refrigerator Cantilever Bin
7W10273369 Whirlpool Refrigerator Door Hinge
7AW10273367 Whirlpool Refrigerator Door Hinge
8AW10799265 Whirlpool Refrigerator Door Skin
8W10799264 Whirlpool Refrigerator Door Skin
9W10783284 Whirlpool Refrigerator Handle
10W10127710 Whirlpool Refrigerator Plate
11WP308544 Whirlpool Screw
12W10798556 Whirlpool Refrigerator Cantilever Bin
13W10600736 Whirlpool Refrigerator Spacer
14W10600734 Whirlpool Refrigerator Spacer
15W10600732 Whirlpool Spacer Assembly
16WP2006346 Whirlpool Refrigerator Washer
17WP2316859 Whirlpool Refrigerator Bushing
18AWP8281250 Whirlpool Refrigerator Screw
18W10851443 Whirlpool Refrigerator Screw
19W11590864 Whirlpool Mullion Rail
20W10529544 Whirlpool Refrigerator Cantilever Bin
21FILLER, FOAM BOARD
22W10782299 Whirlpool Refrigerator Door Assembly
