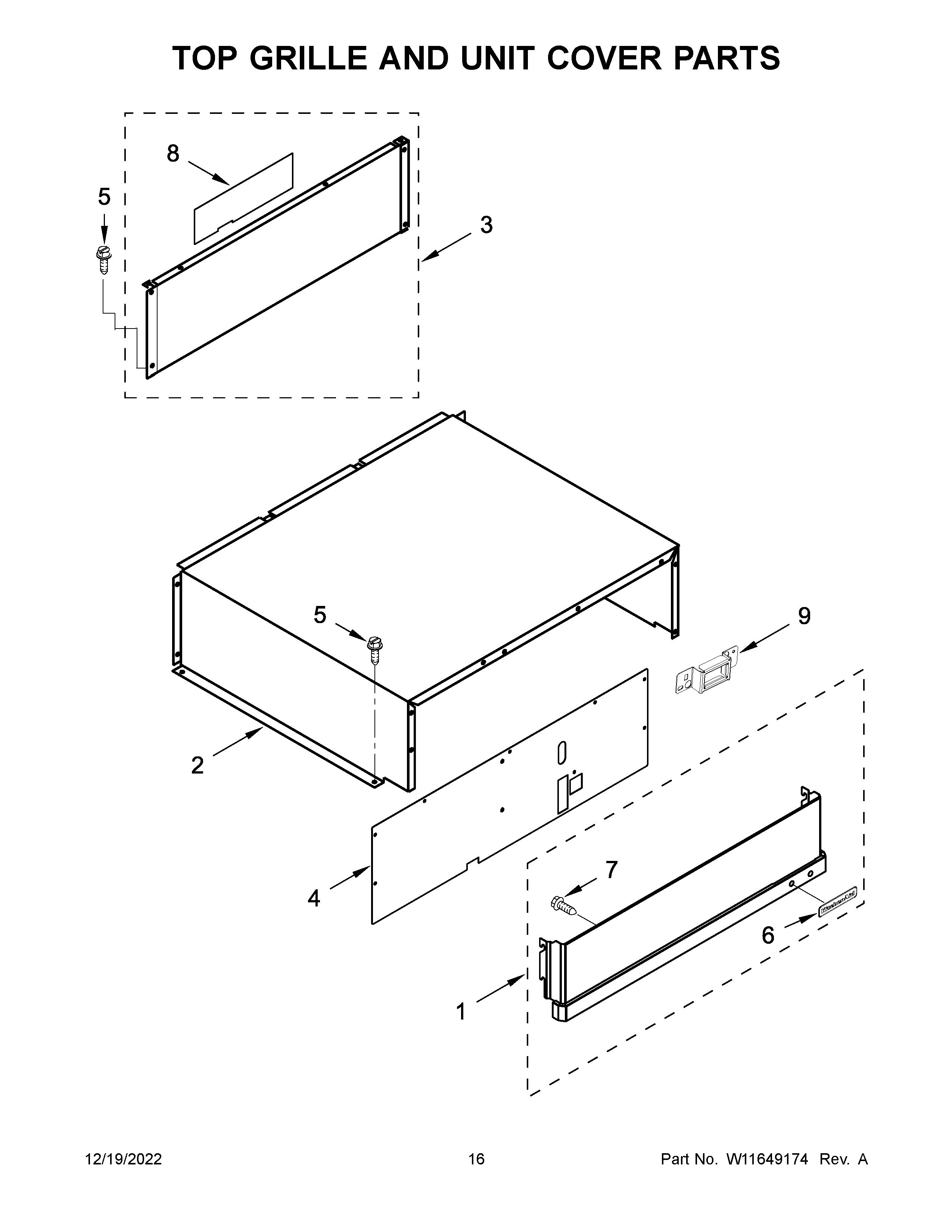

KBFN502EBS05 09 – TOP GRILLE AND UNIT COVER PARTS

Written by

Products

Position	Product
1	GRILL-UPPR
1A	GRILL-UPPR
2	W10545068 Whirlpool Refrigerator Unit Cover
3	2256466 Whirlpool Refrigerator Unit Cover
4	COVER, UNIT FRONT
5	WP489069 Whirlpool Compactor Screw
6	W10839793 Whirlpool Refrigerator Nameplate
7	WP489399 Whirlpool Refrigerator Screw
8	INSULATION, UNIT BACK PANEL
9	COVER, SAFETY SWITCH
