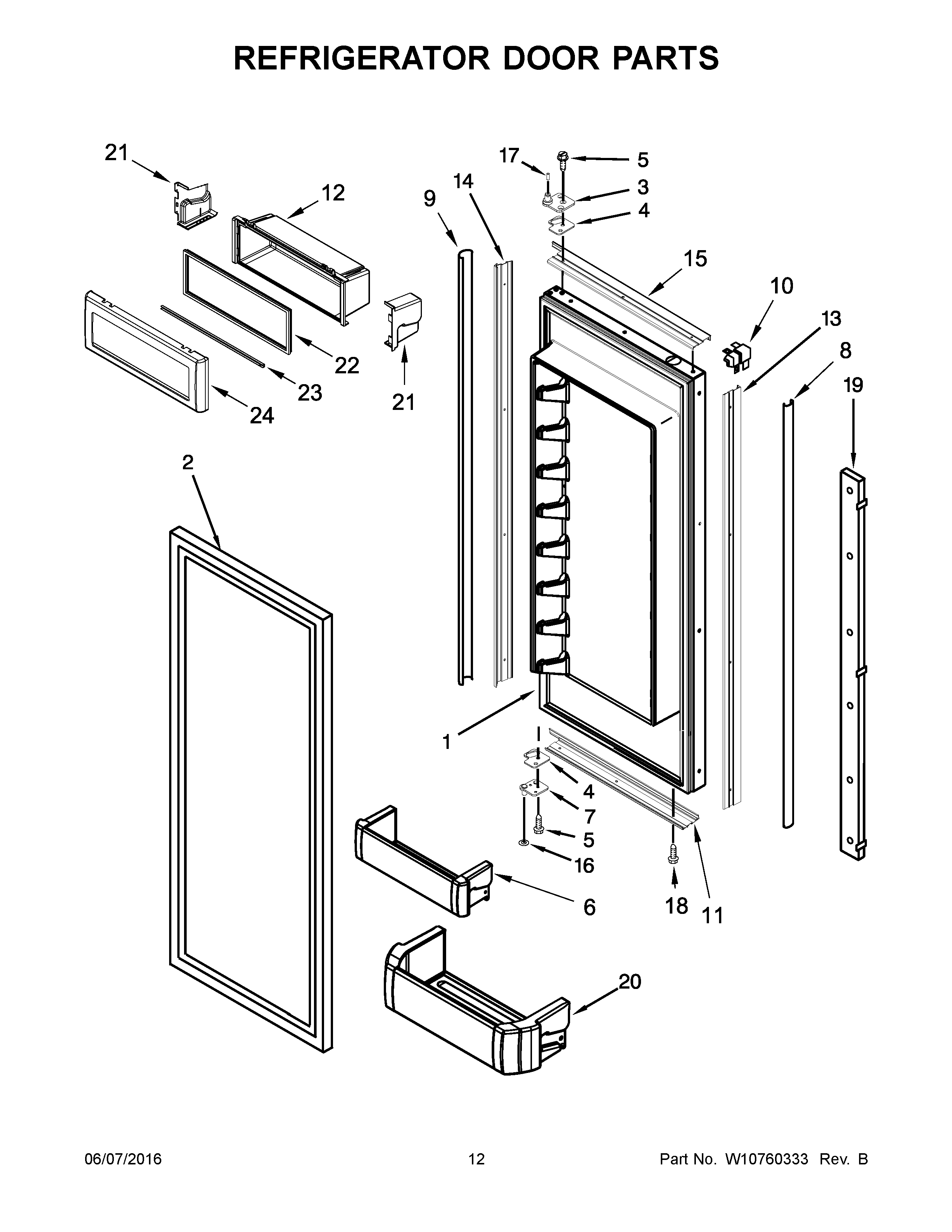

KBFN502EPA00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W10782295 Whirlpool Refrigerator Door Assembly
1A	W10782299 Whirlpool Refrigerator Door Assembly
2	W10600741 Whirlpool Refrigerator Gasket
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	W10529548 Whirlpool Refrigerator Cantilever Bin
7A	W10273367 Whirlpool Refrigerator Door Hinge
7	W10273369 Whirlpool Refrigerator Door Hinge
8	2309021S Whirlpool Refrigerator Cover Trim
9	2309022S Whirlpool Refrigerator Trim Cover
10	2207457 Whirlpool Refrigerator Door Trim
11	2314031S Whirlpool Refrigerator Door Trim
12	W10578281 Whirlpool Refrigerator Cantilever Bin
13	2314030S Whirlpool Refrigerator Door Trim
14	2309031S Whirlpool Refrigerator Door Trim
15	2314028S Whirlpool Refrigerator Door Trim
16	WP2006346 Whirlpool Refrigerator Washer
17	W11500952 Whirlpool Refrigerator Hinge Bushing
18	WP8281250 Whirlpool Refrigerator Screw
19	W10732103 Whirlpool Refrigerator Mullion Rail
20	W10529544 Whirlpool Refrigerator Cantilever Bin
21	W10769396 Whirlpool Refrigerator Endcap Trim
21A	W10768113 Whirlpool Refrigerator Endcap Trim
22	W10578284 Whirlpool Refrigerator Gasket
23	W10608799 Whirlpool Refrigerator Rail
24	W10600702 Whirlpool Refrigerator Door Assembly
