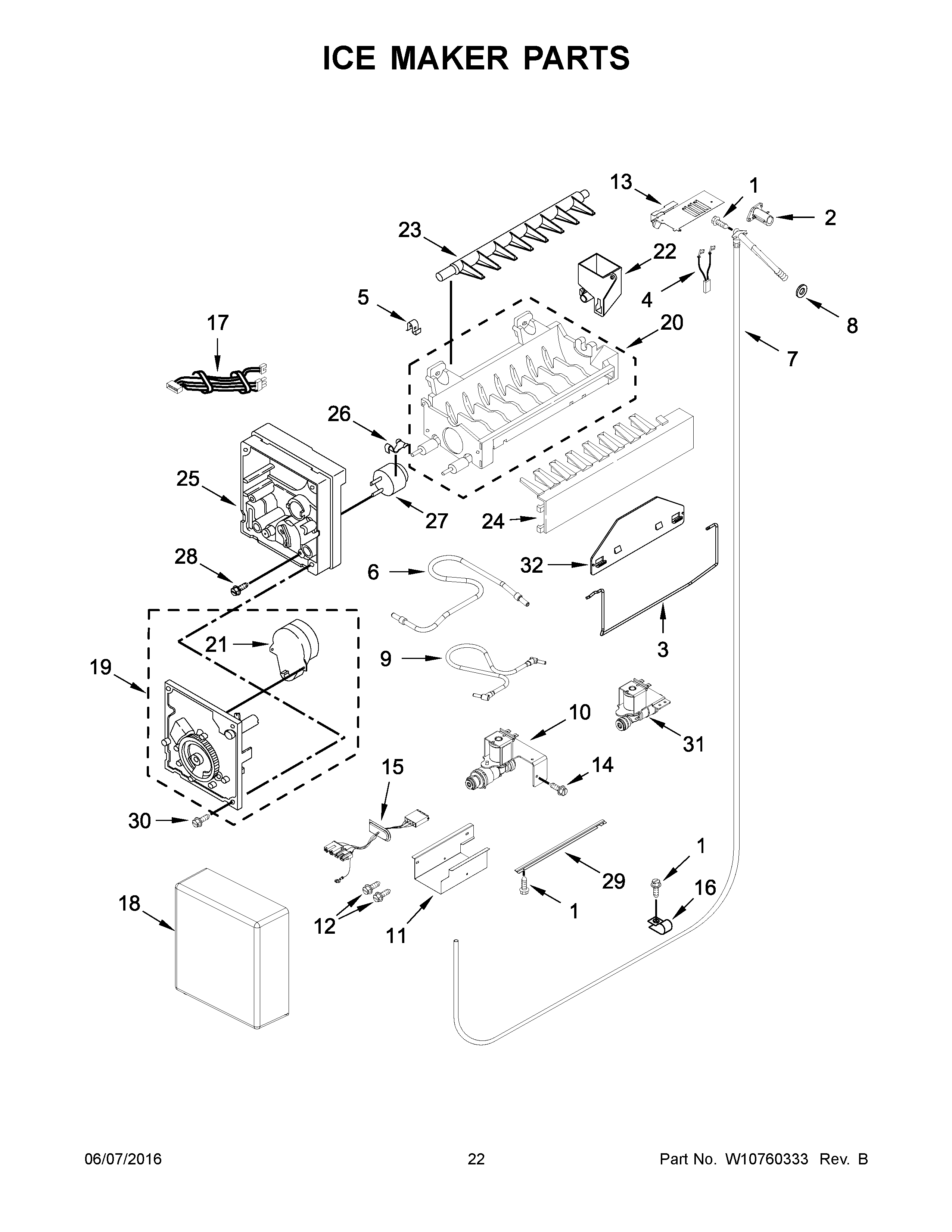

KBFN502EPA00 12 – ICE MAKER PARTSadmin2025-04-26T11:45:56+00:00KBFN502EPA00 12 – ICE MAKER PARTS ProductsPositionProduct1W11624204 Whirlpool Screw2WP2221240 Whirlpool Refrigerator Heater3W11342242 Whirlpool Refrigerator Ice Level Arm4W10482373 Whirlpool Refrigerator Jumper Wire5WP628379 Whirlpool Refrigerator Clip6W10619899 Whirlpool Refrigerator Water Tube72317847 Whirlpool Refrigerator Water Tube8WP1106508 Whirlpool Refrigerator Gasket9W10635851 Whirlpool Refrigerator Water Tube10W11225845 Whirlpool Refrigerator Inlet Valve11W10619291 Whirlpool Refrigerator Shield12WP489464 Whirlpool Refrigerator Screw13WP2221231 Whirlpool Refrigerator Shield14WPW10141604 Whirlpool Screw15W10565837 Whirlpool Refrigerator Wire Harness16WP488366 Whirlpool Refrigerator Clamp17W10508673 Whirlpool Refrigerator Wire Harness18WPW10289690 Whirlpool Ice Maker Cover198201515 Whirlpool Refrigerator Motor and Gear Module Kit20WPW10190929 Whirlpool Refrigerator Ice Maker Mold21CABINET (NOT A SERVICEABLE PART)22W10392442 Whirlpool Refrigerator Cup Fill23WP627843 Whirlpool Refrigerator Ejector Arm24W10788834 Whirlpool Strip Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat28W10001280 Whirlpool Refrigerator Screw29Support, Valve30WP681249 Whirlpool Screw Assembly31W11246413 Whirlpool Refrigerator Inlet Valve32W11215550 Whirlpool Ice Level Arm100ICEMAKER
