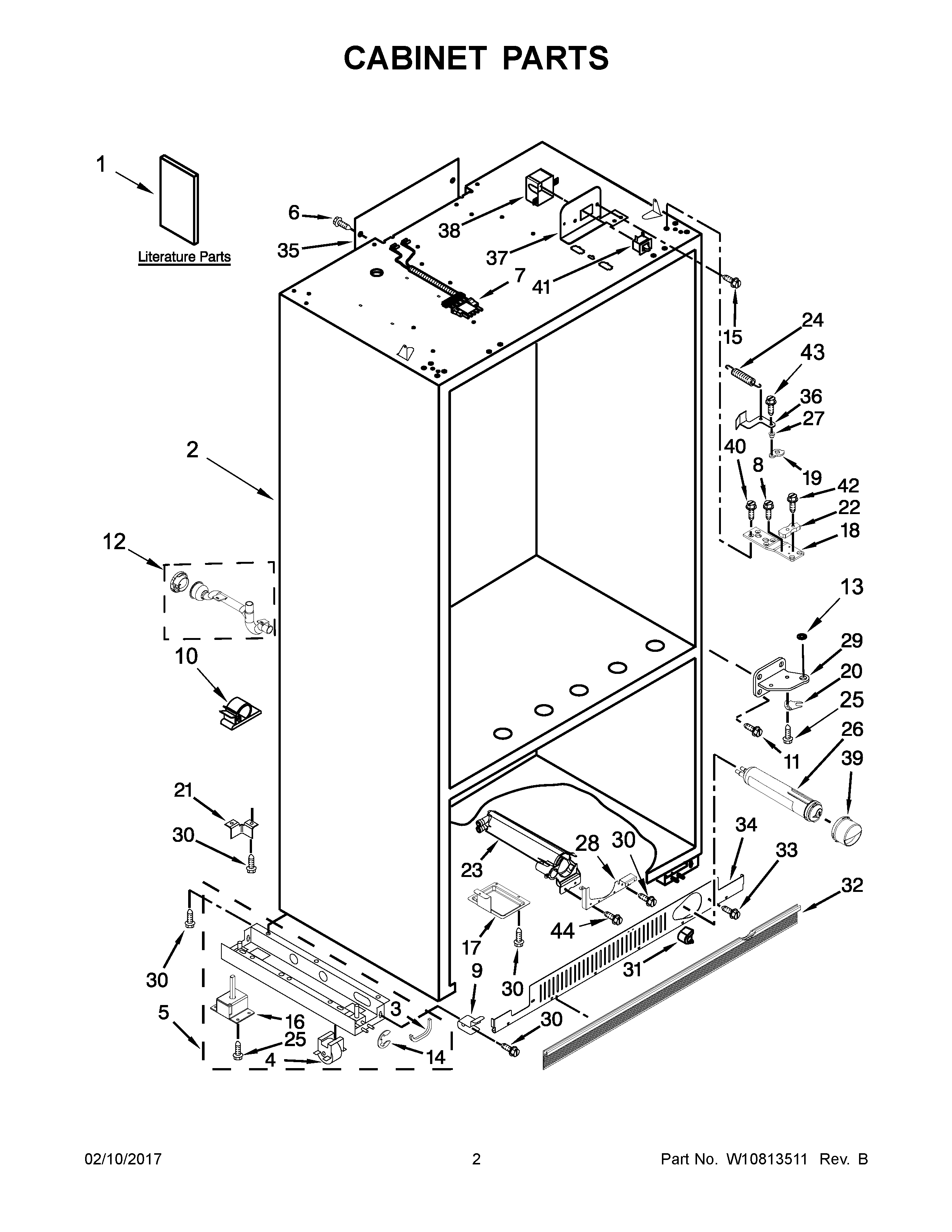

KBFN502EPA01 02 – CABINET PARTSadmin2025-04-26T11:41:34+00:00KBFN502EPA01 02 – CABINET PARTS ProductsPositionProduct1DTECH SHEET (ENGLISH)1USE AND CARE GUIDE1AENERGY GUIDE1ETECH SHEET (FRENCH)1BWIRING DIAGRAM1CINSTALLATION INSTRUCTIONS2CABINET (NOT A SERVICEABLE PART)32307584 Whirlpool Refrigerator Grommet4WPW10138054 Whirlpool Refrigerator Cabinet Roller5W10860229 Whirlpool Refrigerator Support5AW10860448 Whirlpool Refrigerator Support6WP1163283 Whirlpool Air Conditioner Screw7W10745694 Whirlpool Refrigerator Jumper Wire8WP8281164 Whirlpool Refrigerator Screw9W10839844 Whirlpool Refrigerator Bracket10CLIP11W11474472 Whirlpool Screw12W11291510 Whirlpool Refrigerator Valve132314023 Whirlpool Bushing142006841 Whirlpool Ring15WP965173 Whirlpool Dishwasher Screw162005032 Whirlpool Refrigerator Leveler172318189 Whirlpool Refrigerator Drip Pan18W11218690 Whirlpool Refrigerator Door Hinge19WP2320509 Whirlpool Refrigerator Door Cam20WP2004994 Whirlpool Refrigerator Hinge Bushing212006617 Whirlpool Refrigerator Bracket22W11403572 Whirlpool Refrigerator Bracket23WPW10121140 Whirlpool Refrigerator Housing24WP2004517 Whirlpool Refrigerator Spring25W11624204 Whirlpool Screw26FILTER 3-SINGLE TEAL27WP2316859 Whirlpool Refrigerator Bushing28W10674648 Whirlpool Refrigerator Bracket29W10337505 Whirlpool Refrigerator Door Hinge30WP9741232 Whirlpool Dishwasher Screw31WP2260503B Whirlpool Refrigerator Button32WPW10188549 Whirlpool Refrigerator Front Grille33WP489464 Whirlpool Refrigerator Screw34W10861748 Whirlpool Refrigerator Front Grille352215612 Whirlpool Refrigerator Duct Cover36AW10847927 Whirlpool Refrigerator Extension36W11298172 Whirlpool Refrigerator Extension37AW10741111 Whirlpool Refrigerator Bracket37W10741112 Whirlpool Refrigerator Bracket382215938 Whirlpool Refrigerator Switch Cover39W11238395 Whirlpool Refrigerator Filter Cap40W11189635 Whirlpool Refrigerator Screw41W11384469 Whirlpool Door Switch42Screw, Door Stop43W11177574 Whirlpool Refrigerator Screw44WP8533928 Whirlpool Refrigerator Screw
