KBFN502EPA01 06 – SHELF PARTS

KBFN502EPA01 06 – SHELF PARTS

Written by

in

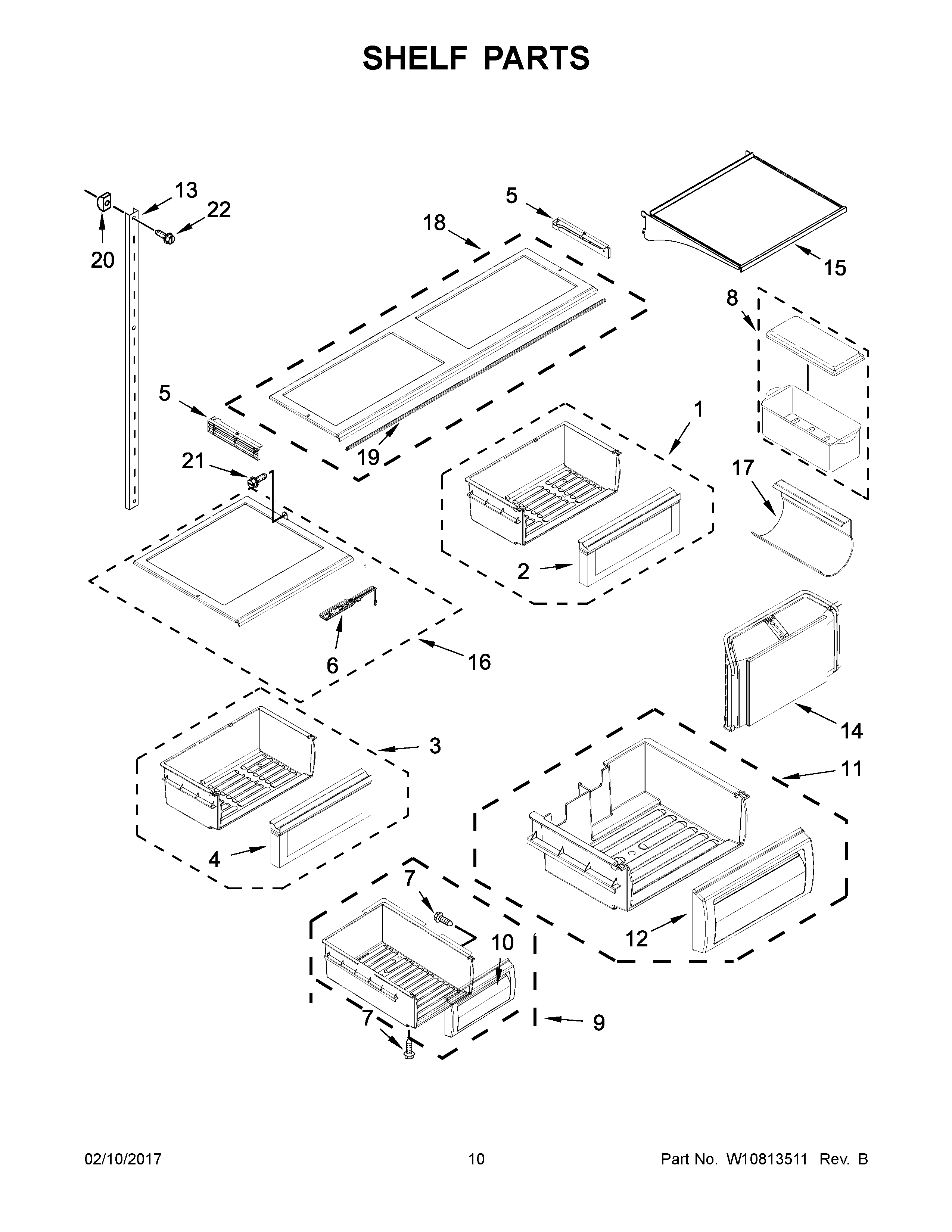

KBFN502EPA01 06 – SHELF PARTS

Products

PositionProduct
1W10529578 Whirlpool Refrigerator Crisper Drawer
2ASSEMBLY, CRISPER PAN FRONT
3W10529585 Whirlpool Refrigerator Crisper Drawer
4ASSEMBLY, DELI PAN FRONT
5ASUPPORT
5SUPPORT
6ASSEMBLY, DELI LED
7WP488787 Whirlpool Refrigerator Screw
8Egg Bin Assembly
9W10600690 Whirlpool Refrigerator Ice Pan
10W10600687 Whirlpool Front Pan
11W10600700 Whirlpool Refrigerator Pan
12W10600696 Whirlpool Refrigerator Front Panel
13W10633565 Whirlpool Refrigerator Ladder
13ALADDER
14W10826105 Whirlpool Refrigerator Pro Service
15WPW10568583 Whirlpool Refrigerator Glass Shelf
16WPW10570403 Whirlpool Refrigerator Glass Shelf
16AWPW10570404 Whirlpool Glass Shelf
17W10701859 Whirlpool Refrigerator Wine Rack
18WPW10578274 Whirlpool Refrigerator Glass Shelf
19GASKET, CRISPER COVER (FRONT)
20520965 Whirlpool Refrigerator Support
21W10759522 Whirlpool Screw
22SCREW
