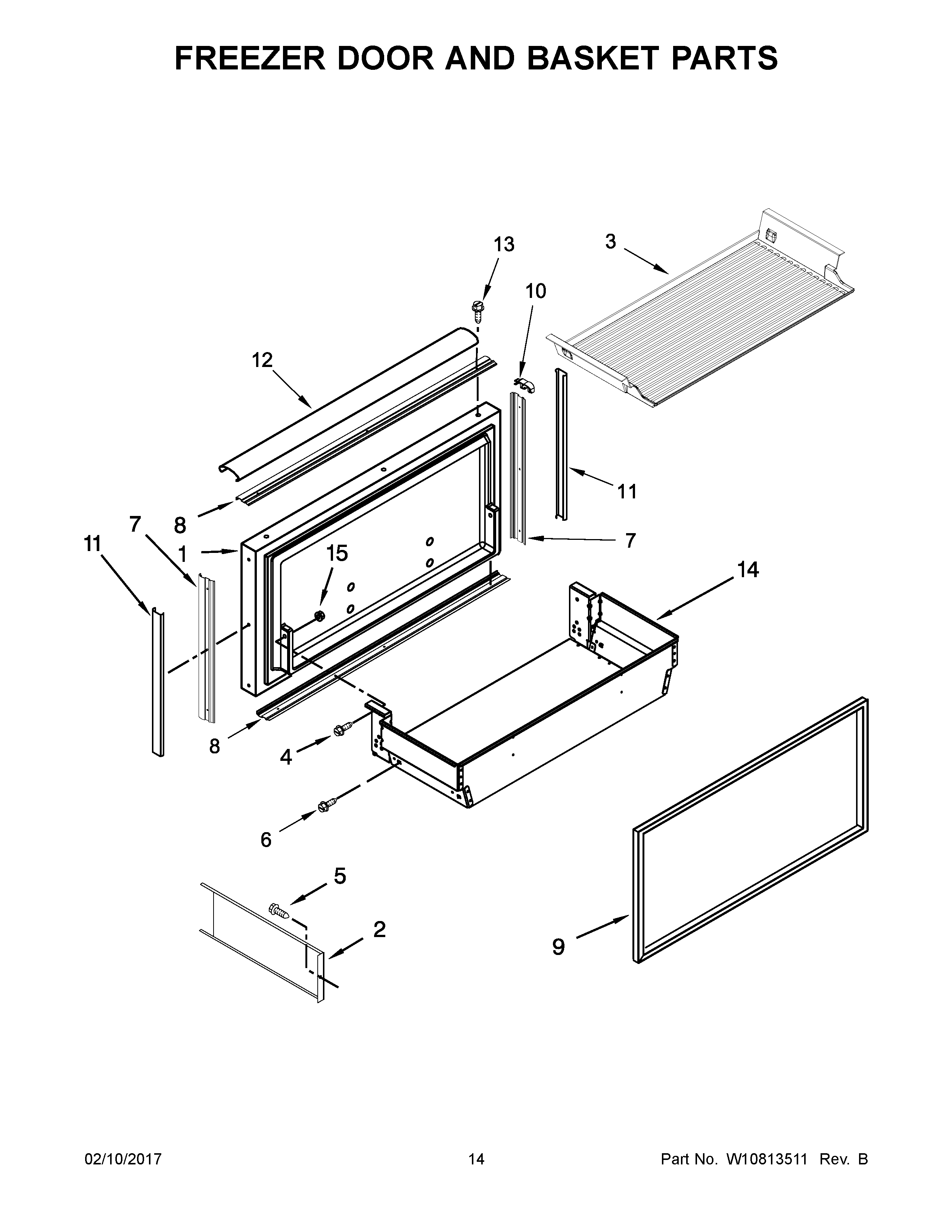

KBFN502EPA01 08 – FREEZER DOOR AND BASKET PARTS

KBFN502EPA01 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBFN502EPA01 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782356 Whirlpool Refrigerator Door Assembly
2DIVIDER, BASKET
3W10665413 Whirlpool Refrigerator Mat
4NUT
5WP488234 Whirlpool Air Conditioner Screw
6W10109030 Whirlpool Refrigerator Screw
72313999S Whirlpool Refrigerator Door Trim
82313998S Whirlpool Refrigerator Door Trim
9W10803138 Whirlpool Refrigerator Gasket
102258903 Whirlpool Refrigerator Door Trim
112309213S Whirlpool Refrigerator Cover Trim
12Cover-Trim, Top
13WP8281250 Whirlpool Refrigerator Screw
14W10770921 Whirlpool Refrigerator Grille
15WP2207454 Whirlpool Refrigerator Nut
