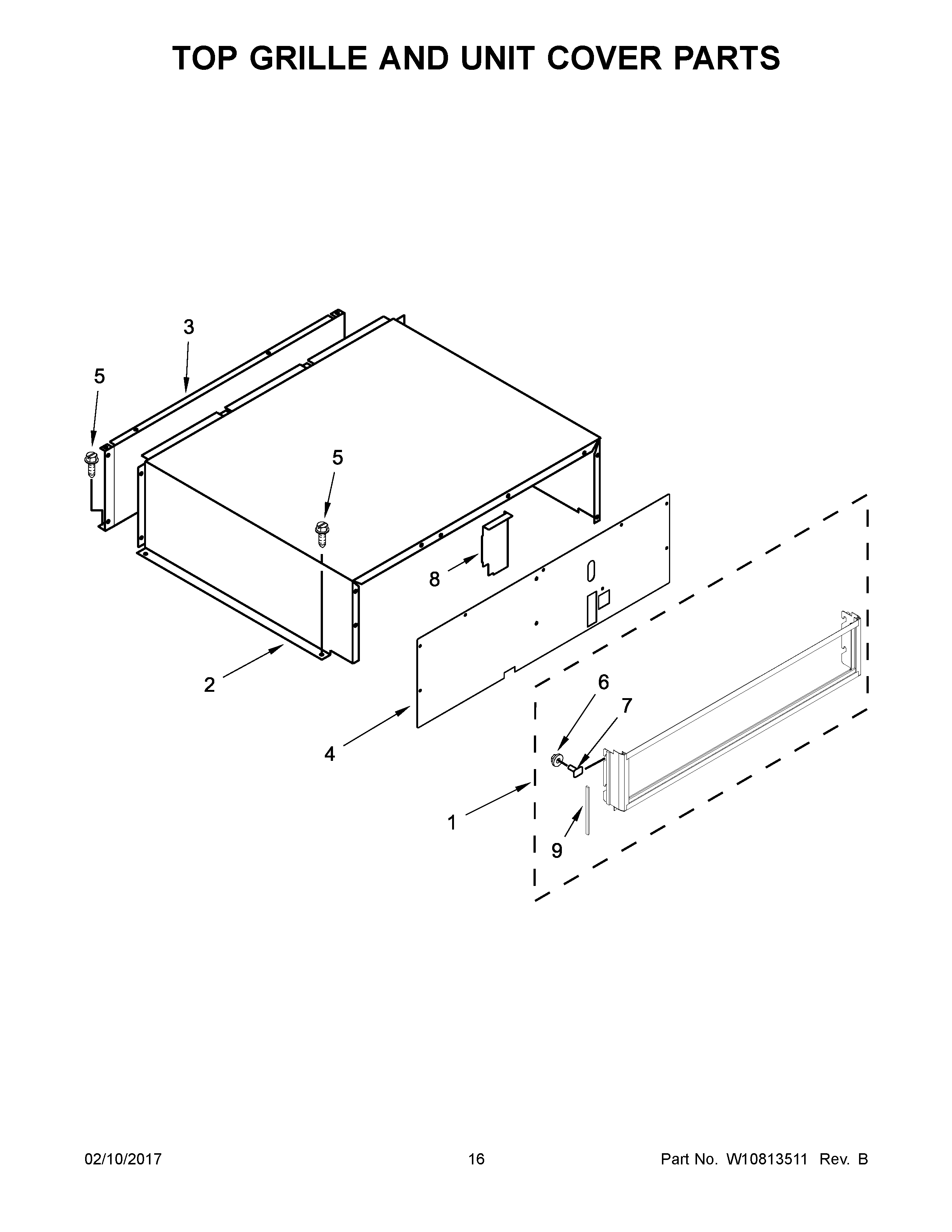

KBFN502EPA01 09 – TOP GRILLE AND UNIT COVER PARTS

KBFN502EPA01 09 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBFN502EPA01 09 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1WP2317080S Whirlpool Upper Grille
2W10545068 Whirlpool Refrigerator Unit Cover
32256466 Whirlpool Refrigerator Unit Cover
4W10694113 Whirlpool Refrigerator Unit Cover
5WP489069 Whirlpool Compactor Screw
6WP488130 Whirlpool Air Conditioner Nut
72003347 Whirlpool Screw
8W10645086 Whirlpool Refrigerator Divider
9GASKET, FOAM
