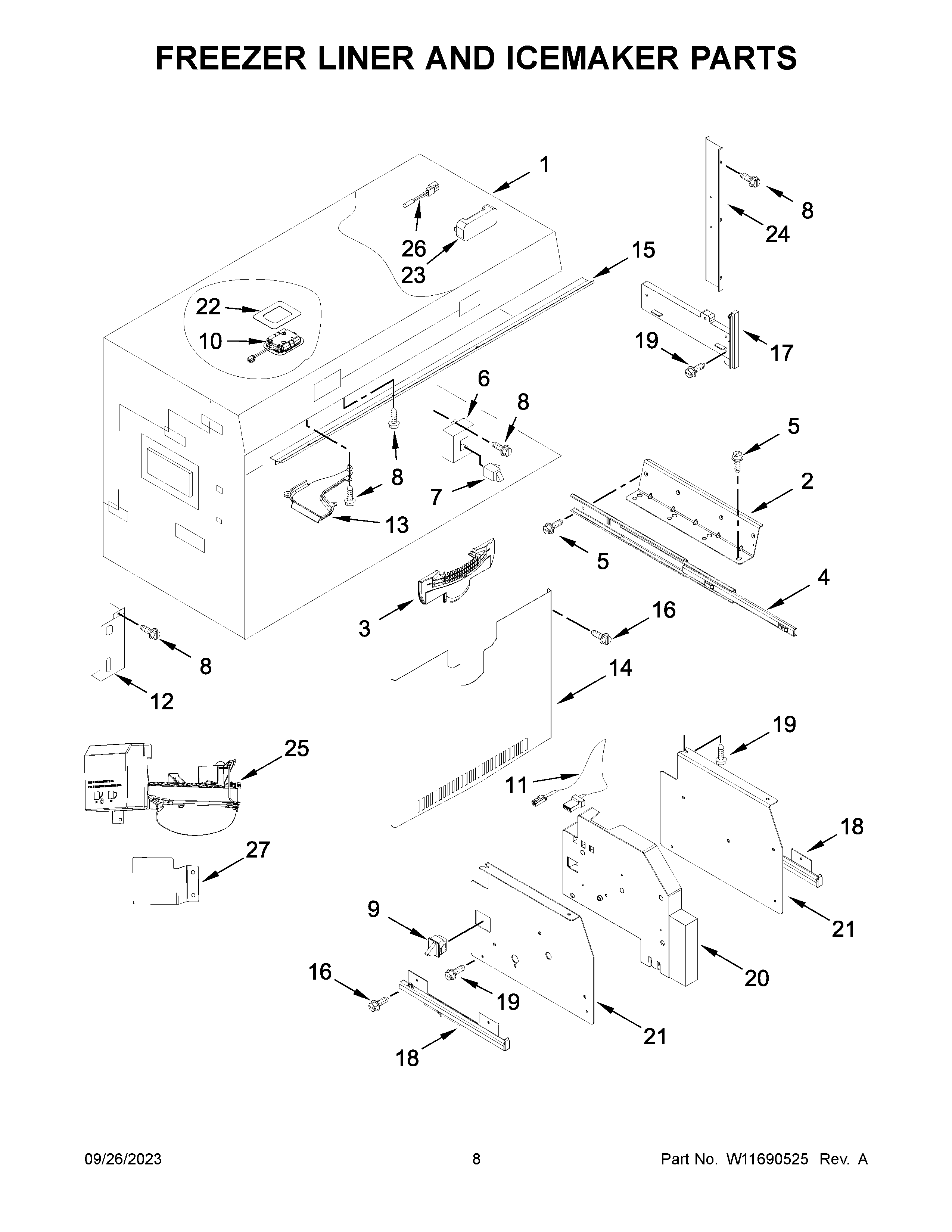

KBFN502EPA05 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1LINER, FREEZER (NOT SERVICABLE)
2W10744328 Whirlpool Refrigerator Support Assembly
3W10541687 Whirlpool Grille Assembly
4W11650036 Whirlpool Slide
5Screw
6W10606833 Whirlpool Cover
7W11670534 Whirlpool Refrigerator Switch
8W11624204 Whirlpool Screw
9W11289496 Whirlpool Refrigerator Switch
10W11484836 Whirlpool Refrigerator Module
11W10568445 Whirlpool Refrigerator Jumper Wire
12COVER, ICEMAKER WIRING
13DUCT, AIR FLOW (ICEMAKER)
14COVER, EVAPORATOR
15W10710401 Whirlpool Refrigerator Deflector
16WPW10001160 Whirlpool Refrigerator Screw
17W10664384 Whirlpool Refrigerator Track
17ATRACK
18A2306116 Whirlpool Refrigerator Slide
182306117 Whirlpool Refrigerator Slide
19WP488163 Whirlpool Refrigerator Screw
20DIVIDER, FREEZER (GREY)
21W10600630 Whirlpool Refrigerator Support
21ASUPPORT, SLIDE (RIGHT HAND)
22W10672548 Whirlpool Refrigerator Shim
23W10609678 Whirlpool Refrigerator Cover
24ASSEMBLY, EVAPORATOR COVER RAIL
25ICEMAKER
26THERMISTOR
27EXTENSION, ICEMAKER WIRING COVER
