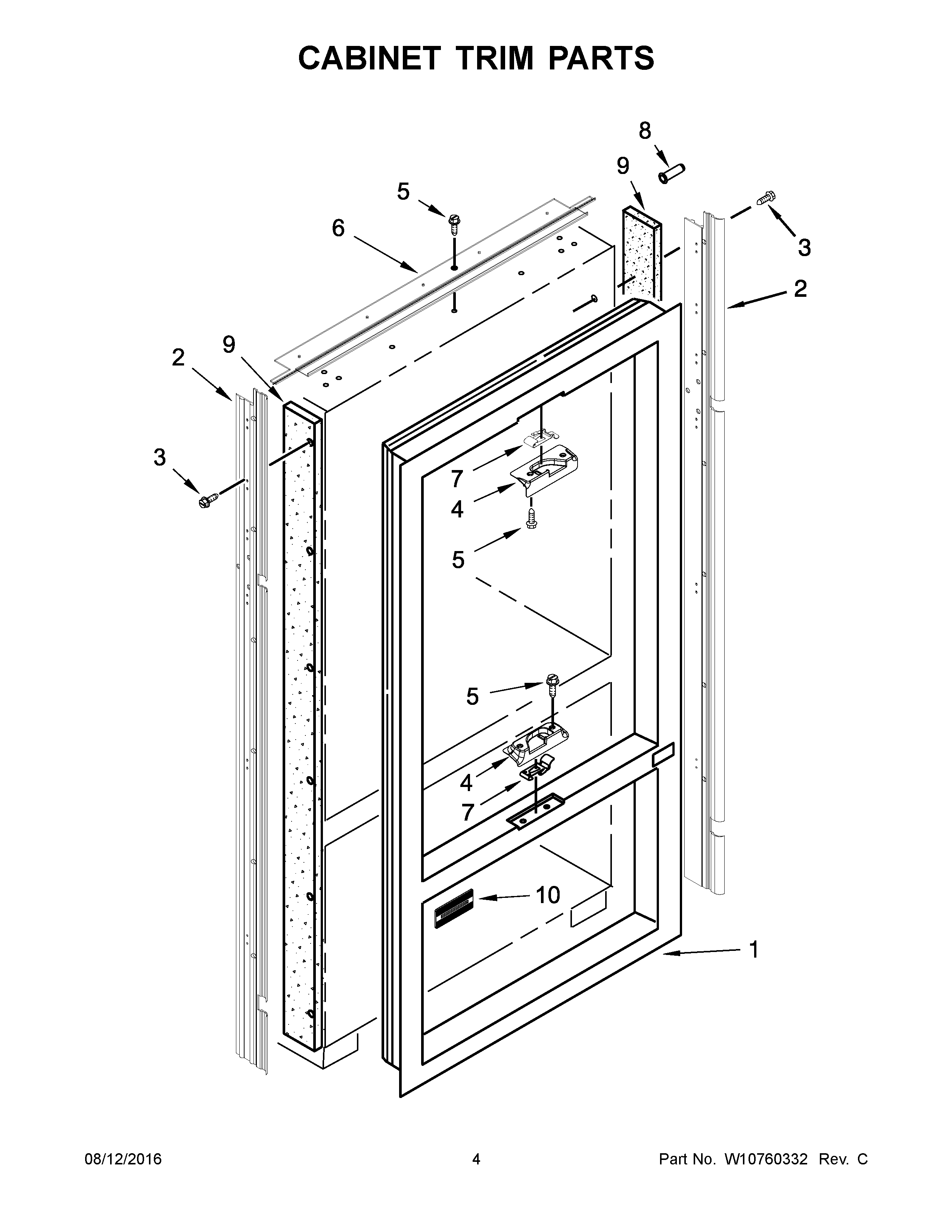

KBFN502ESS00 03 – CABINET TRIM PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AW11173663 Whirlpool Refrigerator Cabinet Trim
2W11173662 Whirlpool Refrigerator Cabinet Trim
3SCREW
4ASLIDE, CAM (BOTTOM)
4SLIDE, CAM (TOP)
5W11624204 Whirlpool Screw
62314017 Whirlpool Refrigerator Cabinet Trim
7A2309231 Whirlpool Refrigerator Clip
72309230 Whirlpool Refrigerator Clip
8WPW10121451 Whirlpool Refrigerator Insert
9Seal, Side Trim
10W10708610 Whirlpool Cover Assembly
