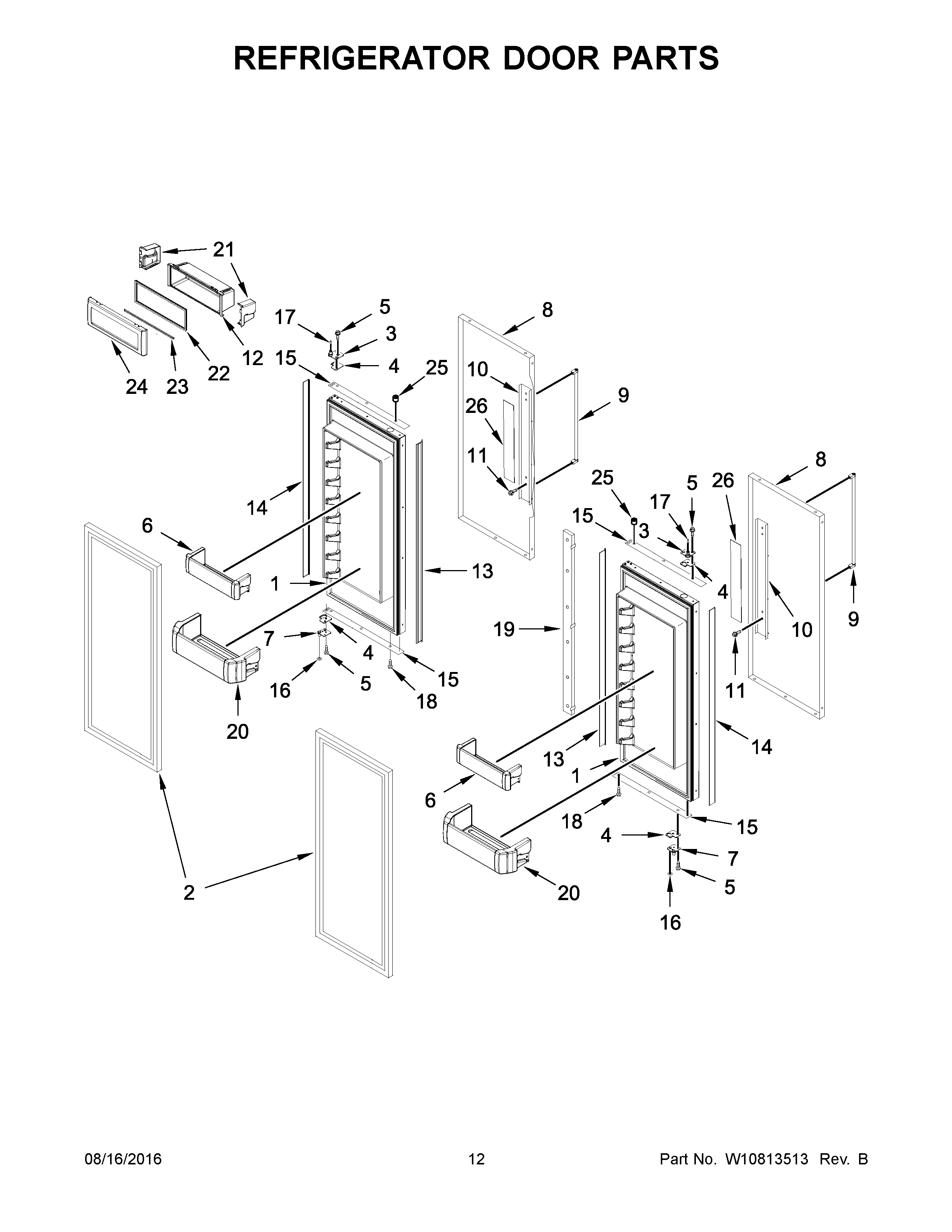

KBFN502ESS01 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	W10782299 Whirlpool Refrigerator Door Assembly
1	W10854244 Whirlpool Refrigerator Door Assembly
2	W10600741 Whirlpool Refrigerator Gasket
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	W10529548 Whirlpool Refrigerator Cantilever Bin
7A	W10273367 Whirlpool Refrigerator Door Hinge
7	W10273369 Whirlpool Refrigerator Door Hinge
8	W10799265 Whirlpool Refrigerator Door Skin
9	W10783284 Whirlpool Refrigerator Handle
10	W10127710 Whirlpool Refrigerator Plate
11	WP308544 Whirlpool Screw
12	W10578281 Whirlpool Refrigerator Cantilever Bin
13	W10600736 Whirlpool Refrigerator Spacer
14	W10600734 Whirlpool Refrigerator Spacer
15	W10600732 Whirlpool Spacer Assembly
16	WP2006346 Whirlpool Refrigerator Washer
17	W11500952 Whirlpool Refrigerator Hinge Bushing
18	WP8281250 Whirlpool Refrigerator Screw
19	W11590864 Whirlpool Mullion Rail
20	W10529544 Whirlpool Refrigerator Cantilever Bin
21	W10769396 Whirlpool Refrigerator Endcap Trim
21A	W10768113 Whirlpool Refrigerator Endcap Trim
22	W10578284 Whirlpool Refrigerator Gasket
23	W10608799 Whirlpool Refrigerator Rail
24	W10600702 Whirlpool Refrigerator Door Assembly
25	2005433 Whirlpool Refrigerator Spacer
26	Filler, Foam
