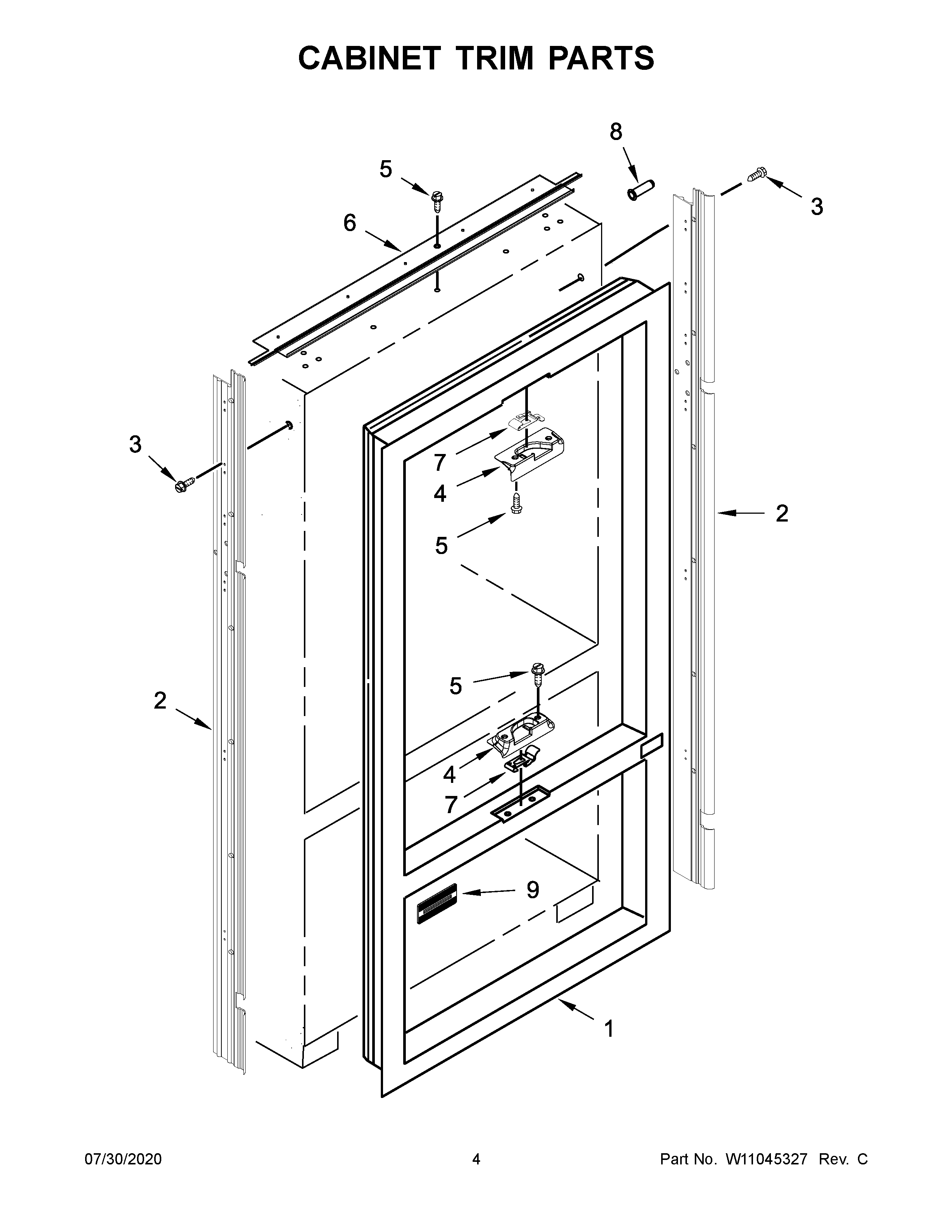

KBFN502ESS02 03 – CABINET TRIM PARTS

KBFN502ESS02 03 – CABINET TRIM PARTS

Written by

in

KBFN502ESS02 03 – CABINET TRIM PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AW11173663 Whirlpool Refrigerator Cabinet Trim
2W11173662 Whirlpool Refrigerator Cabinet Trim
3SCREW
4AW10672302 Whirlpool Refrigerator Slide
4W10672300 Whirlpool Refrigerator Slide Assembly
5W11624204 Whirlpool Screw
62314017 Whirlpool Refrigerator Cabinet Trim
7A2309231 Whirlpool Refrigerator Clip
72309230 Whirlpool Refrigerator Clip
8WPW10121451 Whirlpool Refrigerator Insert
9W10708610 Whirlpool Cover Assembly
