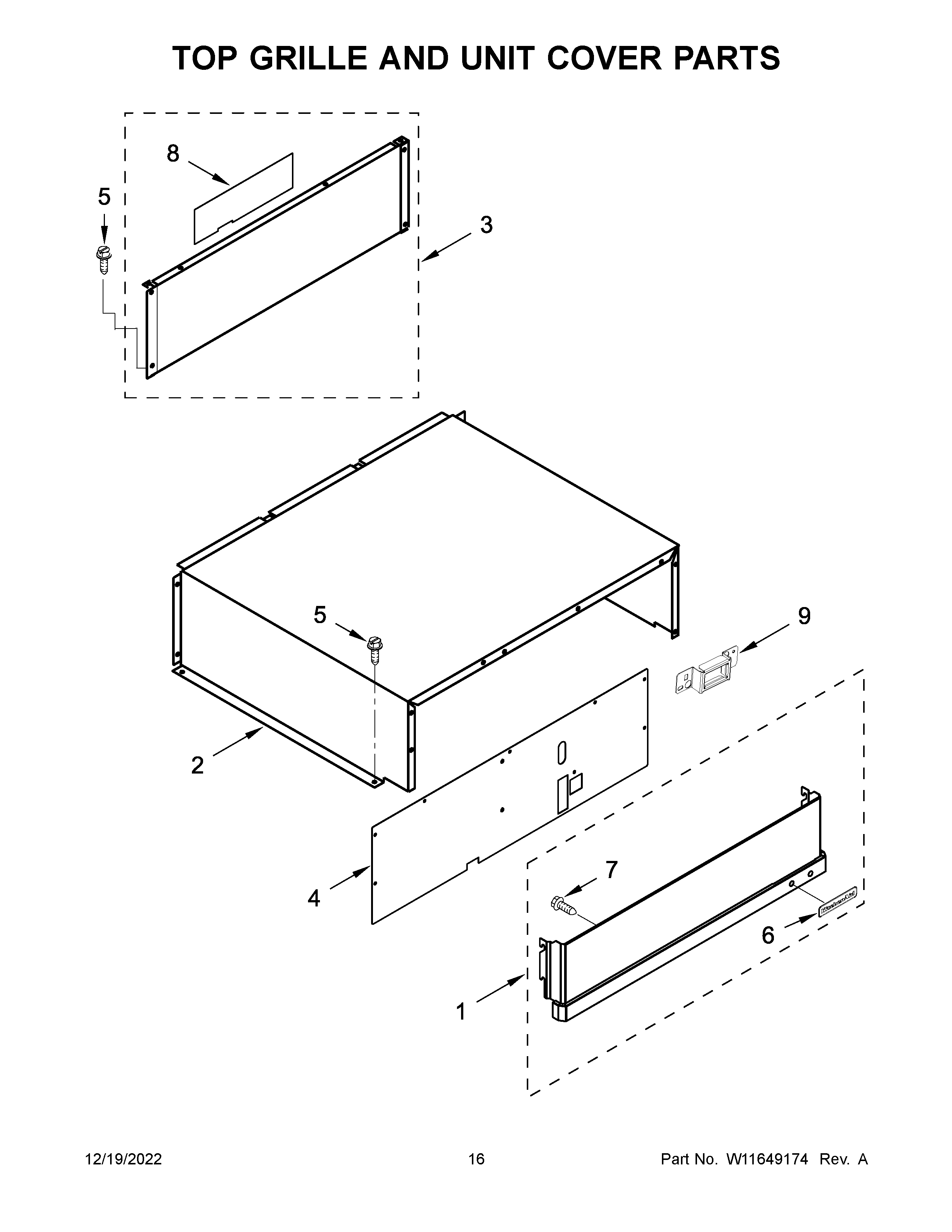

KBFN502ESS05 09 – TOP GRILLE AND UNIT COVER PARTS

KBFN502ESS05 09 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBFN502ESS05 09 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1GRILL-UPPR
1AGRILL-UPPR
2W10545068 Whirlpool Refrigerator Unit Cover
32256466 Whirlpool Refrigerator Unit Cover
4COVER, UNIT FRONT
5WP489069 Whirlpool Compactor Screw
6W10839793 Whirlpool Refrigerator Nameplate
7WP489399 Whirlpool Refrigerator Screw
8INSULATION, UNIT BACK PANEL
9COVER, SAFETY SWITCH
