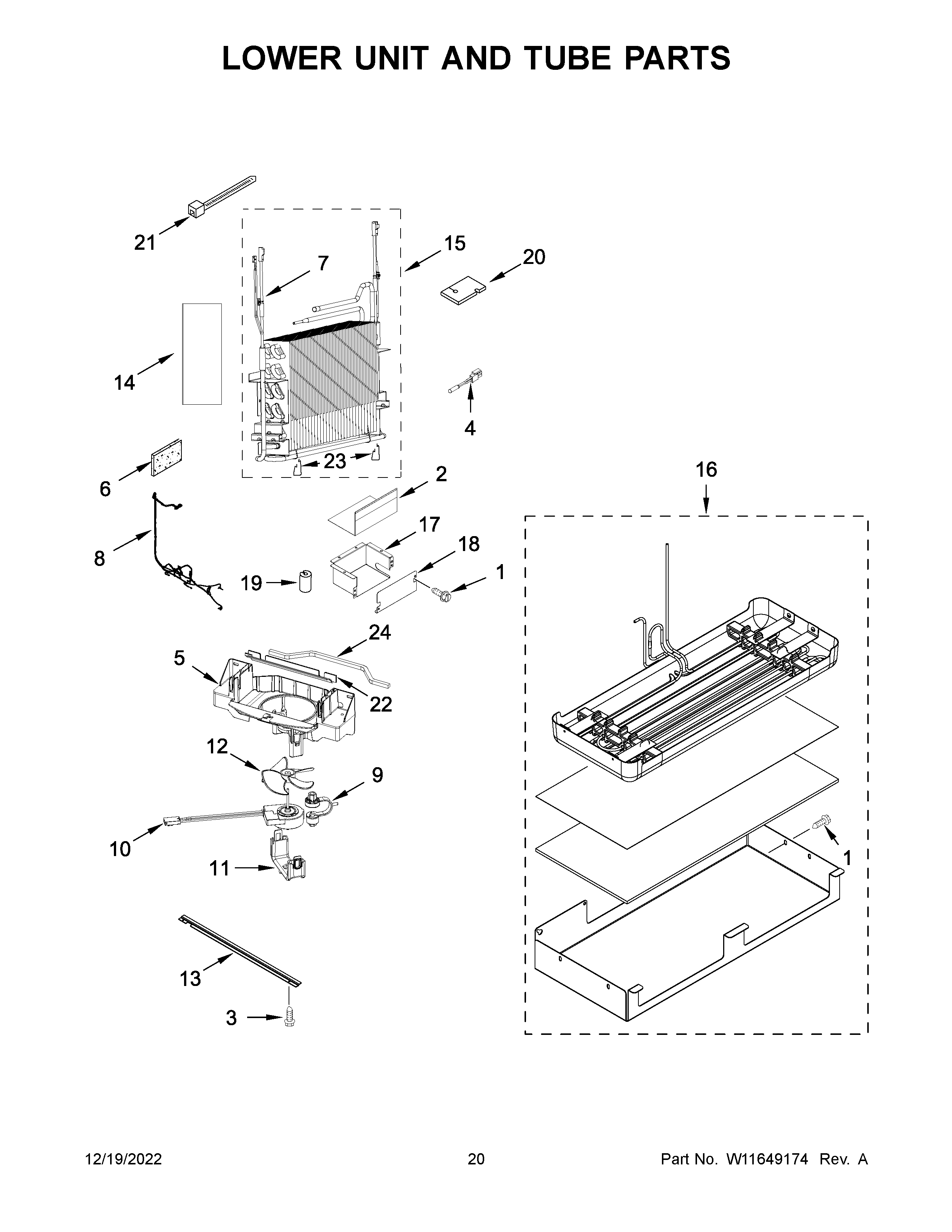

KBFN502ESS05 11 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1WP489069 Whirlpool Compactor Screw
2W10321050 Whirlpool Refrigerator Shield
3W11624204 Whirlpool Screw
4W11649686 Whirlpool Thermistor
5W10803566 Whirlpool Shroud Assembly
6W11553819 Whirlpool Refrigerator Insulation
7W11311043 Whirlpool Heater
8ASSEMBLY, FREEZER WIRE (NOT SERVICED)
9W11676465 Whirlpool Grommet
10W11396715 Whirlpool Refrigerator Evaporator Motor
11W11712696 Whirlpool Clip
12WP2163777 Whirlpool Refrigerator Fan Blade
132320554 Whirlpool Bracket
14GASKET, EVAPORATOR BYPASS
15W11649689 Whirlpool Evaporator
16W10735008 Whirlpool Refrigerator Drain Pan Heater
17WIRE BOX COVER
18WPW10309012 Whirlpool Wire Cover
19W10852725 Whirlpool Refrigerator Grommet
20BLOCK, EVAPORATOR SIDE
21WPW10339879 Whirlpool Wire Tie
22W10567169 Whirlpool Diverter
23CLIP, DEFROST HEATER
24GASKET
