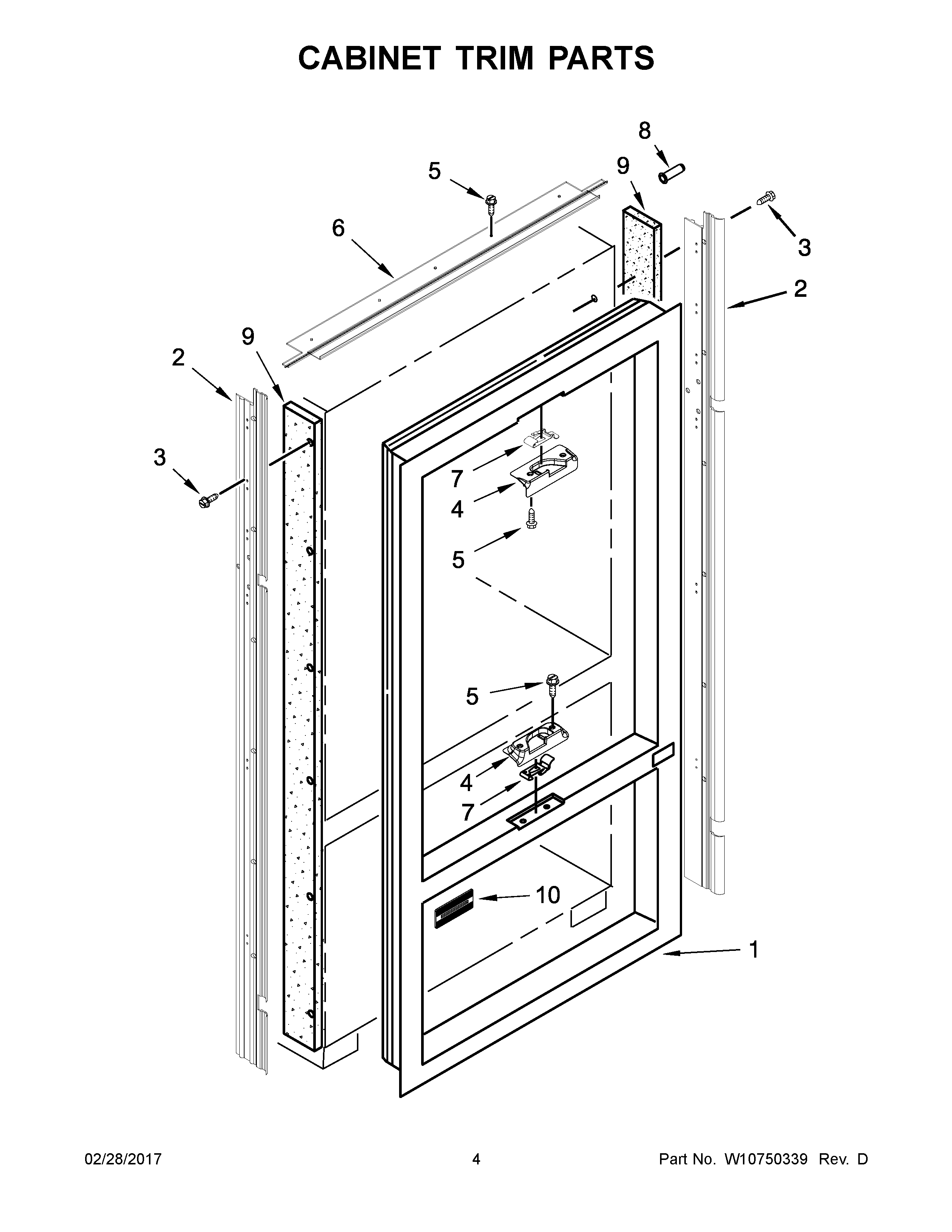

KBFN506EBS00 03 – CABINET TRIM PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AW11173663 Whirlpool Refrigerator Cabinet Trim
2W11173662 Whirlpool Refrigerator Cabinet Trim
3SCREW
4AW10672302 Whirlpool Refrigerator Slide
4W10672300 Whirlpool Refrigerator Slide Assembly
5W11624204 Whirlpool Screw
6TRIM, CABINET (TOP) (ALUMINUM)
7A2309231 Whirlpool Refrigerator Clip
72309230 Whirlpool Refrigerator Clip
8WPW10121451 Whirlpool Refrigerator Insert
9Seal, Side Trim
10W10708610 Whirlpool Cover Assembly
