KBFN506EBS00 07 – REFRIGERATOR DOOR PARTS

KBFN506EBS00 07 – REFRIGERATOR DOOR PARTS

Written by

in

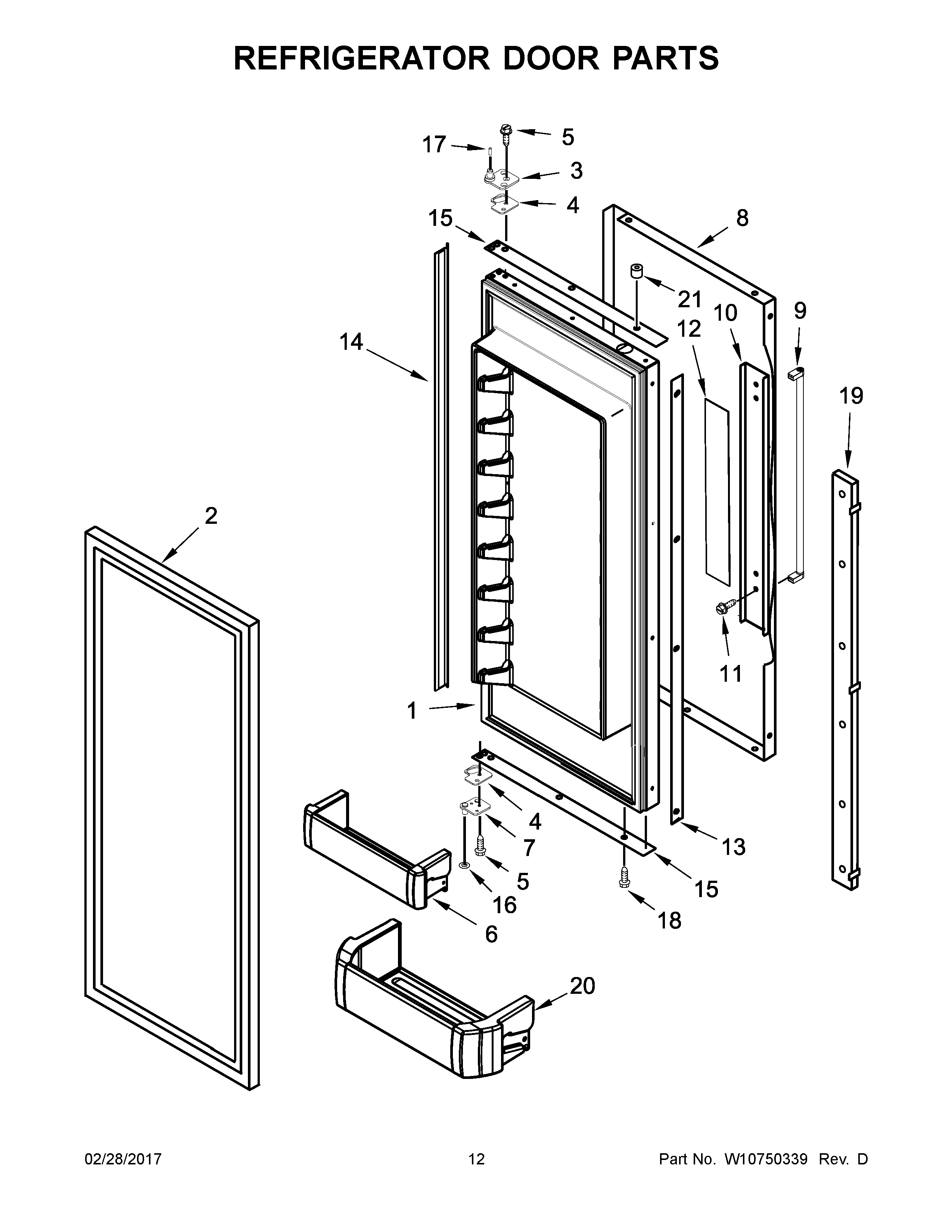

KBFN506EBS00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW10782282 Whirlpool Refrigerator Stainless Steel Door Assembly
1W10782276 Whirlpool Refrigerator Stainless Steel Door Assembly
2W10871887 Whirlpool Refrigerator FIP Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6W10529449 Whirlpool Refrigerator Cantilever Bin
7AW10273367 Whirlpool Refrigerator Door Hinge
7W10273369 Whirlpool Refrigerator Door Hinge
8AW11109256 Whirlpool Refrigerator Door Skin
8W10799269 Whirlpool Refrigerator Door Skin
9W10783284 Whirlpool Refrigerator Handle
10W10127710 Whirlpool Refrigerator Plate
11WP308544 Whirlpool Screw
12FILLER, FOAM BOARD
13W10600734 Whirlpool Refrigerator Spacer
14W10600736 Whirlpool Refrigerator Spacer
15W10535347 Whirlpool Spacer
16WP2006346 Whirlpool Refrigerator Washer
17W11500952 Whirlpool Refrigerator Hinge Bushing
18WP8281250 Whirlpool Refrigerator Screw
18AW10851443 Whirlpool Refrigerator Screw
19W11590867 Whirlpool Rail Molding
20W10578289 Whirlpool Refrigerator Cantilever Bin
212005433 Whirlpool Refrigerator Spacer
