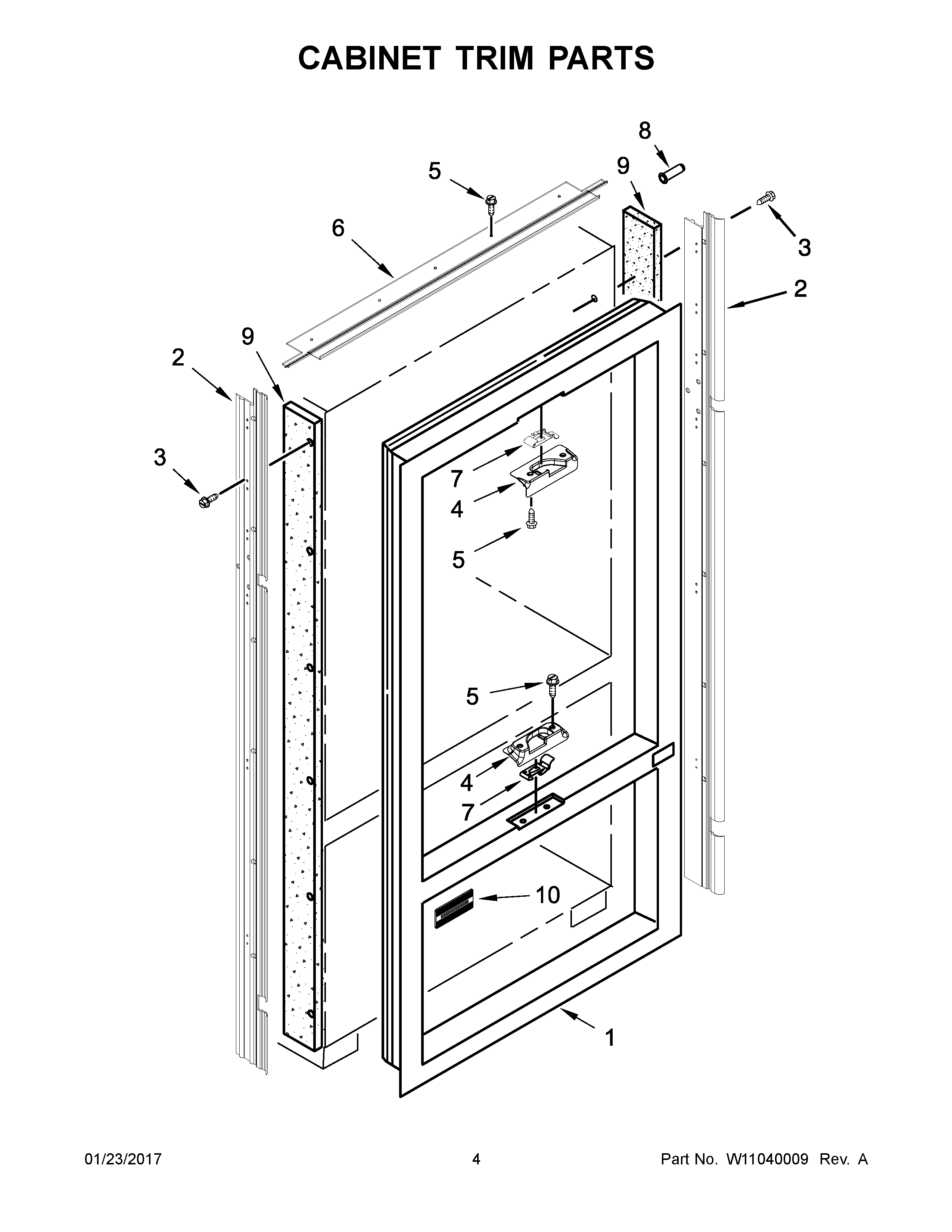

KBFN506EBS01 03 – CABINET TRIM PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2A	W11173663 Whirlpool Refrigerator Cabinet Trim
2	W11173662 Whirlpool Refrigerator Cabinet Trim
3	SCREW
4A	W10672302 Whirlpool Refrigerator Slide
4	W10672300 Whirlpool Refrigerator Slide Assembly
5	W11624204 Whirlpool Screw
6	TRIM, CABINET (TOP) (ALUMINUM)
7A	2309231 Whirlpool Refrigerator Clip
7	2309230 Whirlpool Refrigerator Clip
8	WPW10121451 Whirlpool Refrigerator Insert
9	Seal, Side Trim
10	W10708610 Whirlpool Cover Assembly
