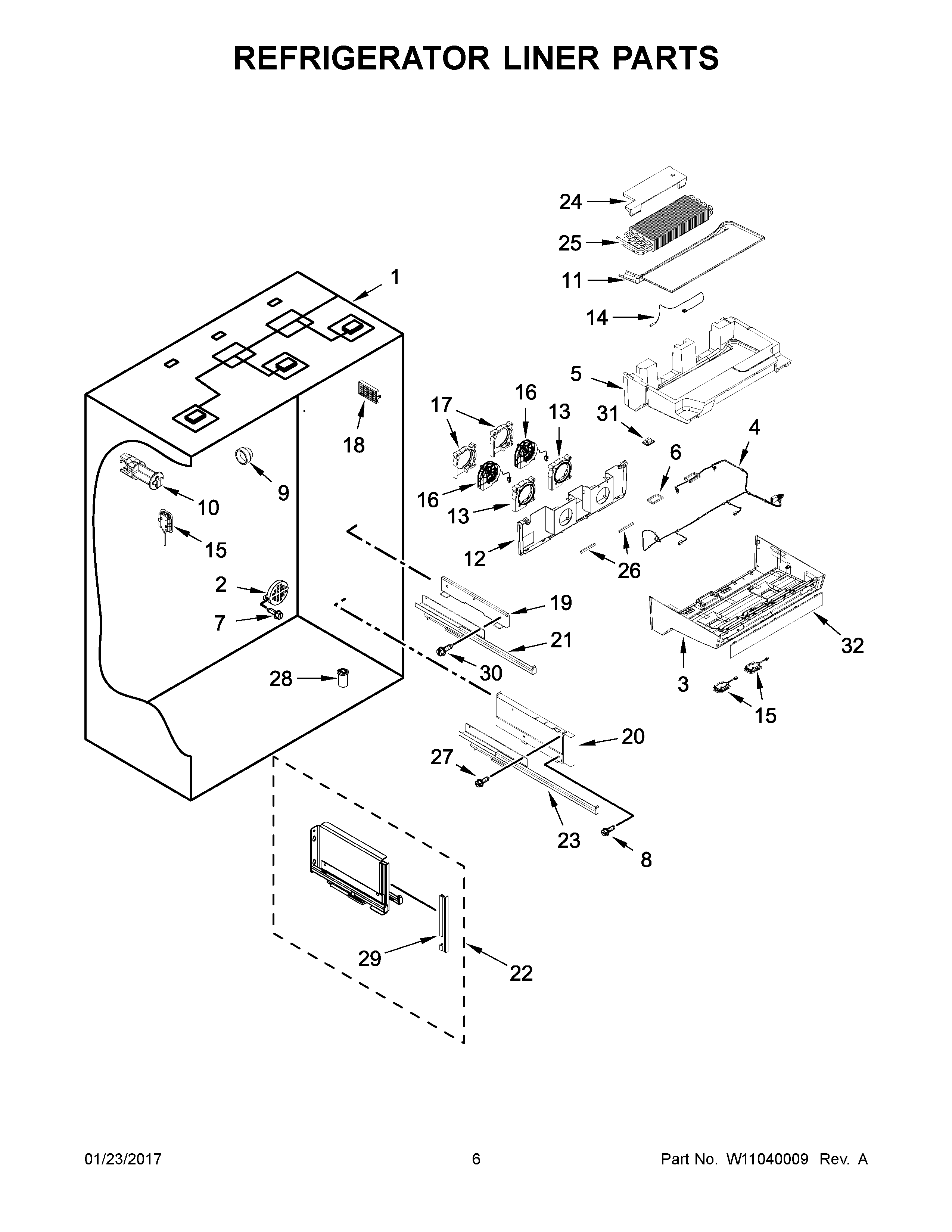

KBFN506EBS01 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER, AIR RETURN
3W10555476 Whirlpool Refrigerator Evaporator Cover
4W11661567 Whirlpool Wire Harness
5W11712700 Whirlpool Insulation
6W10638137 Whirlpool Refrigerator Gasket
7WP488729 Whirlpool Refrigerator Door Screw
8W10215666 Whirlpool Refrigerator Screw
9SUPPORT, EVAPORATOR ASSEMBLY
10W10555493 Whirlpool Clip
11W10555480 Whirlpool Refrigerator Shield
12W10555484 Whirlpool Refrigerator Housing
13W10538315 Whirlpool Refrigerator Housing
14W11661569 Whirlpool Thermistor
15W11683242 Whirlpool Refrigerator LED Light Module
16W11678257 Whirlpool Fan
17W10538317 Whirlpool Refrigerator Housing
18W10311524 Whirlpool FreshFlow Refrigerator Air Filter
19W10569850 Whirlpool Spacer
20W10569847 Whirlpool Refrigerator Track
20ASPACER, DELI (RIGHT HAND)
21W10569887 Whirlpool Refrigerator Slide
21AW10569886 Whirlpool Refrigerator Slide
22W10582976 Whirlpool Refrigerator Support
23AW10615641 Whirlpool Refrigerator Slide
23W10569890 Whirlpool Refrigerator Slide
24W10555472 Whirlpool Refrigerator Insulation
25W11553229 Whirlpool Refrigerator Evaporator
26W10740077 Whirlpool Refrigerator Gasket
27WP3400886 Whirlpool Refrigerator Screw
28WP2210509 Whirlpool Refrigerator Tub Valve
29BRACKET, CRISPER
30WP8533928 Whirlpool Refrigerator Screw
31CLIP, WIRING
32W11411871-includeCORE Whirlpool W11411871 Refrigerator UI Panel with Core
