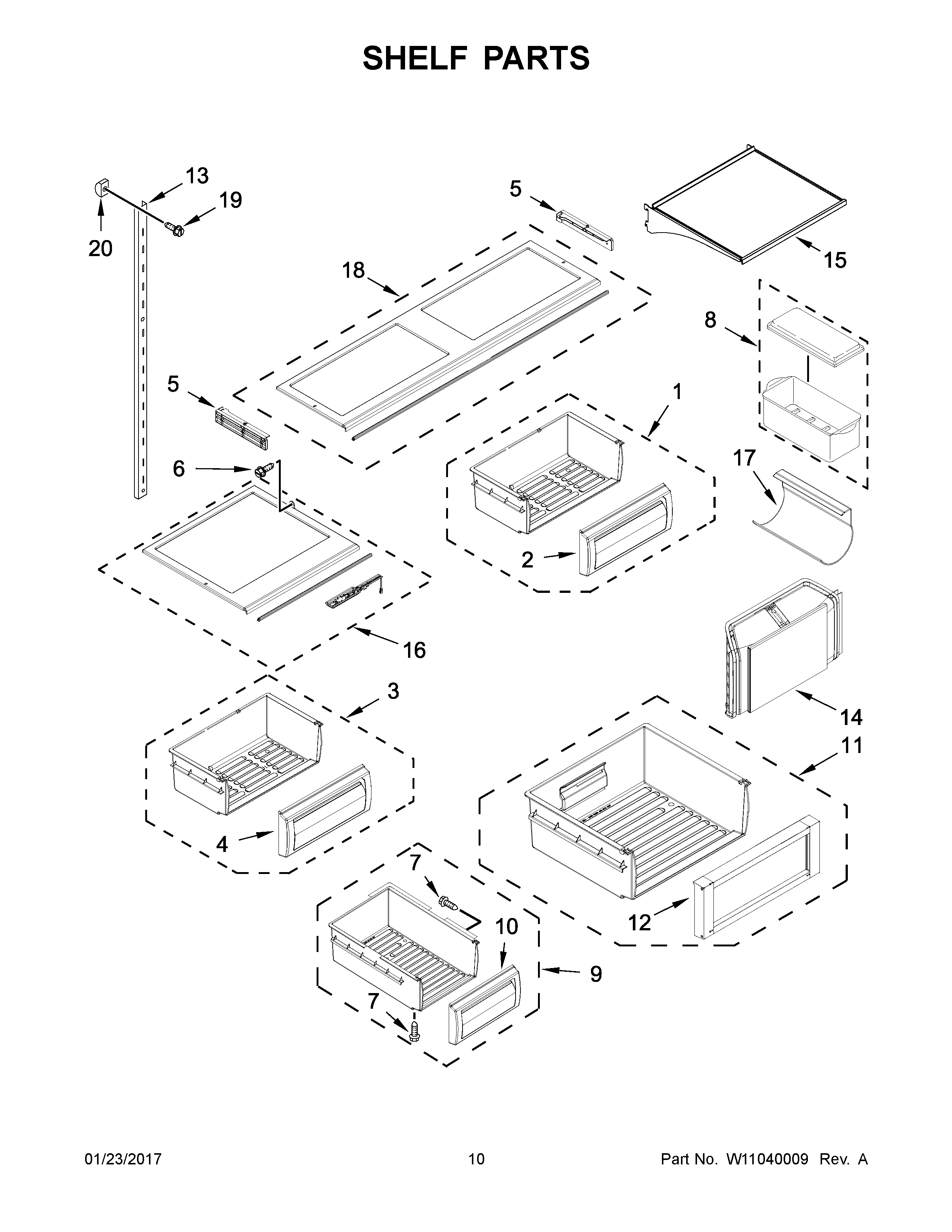

KBFN506EBS01 06 – SHELF PARTS

Products

Position	Product
1	W10529577 Whirlpool Refrigerator Crisper Pan
2	W10529562 Whirlpool Refrigerator Front Panel
3	W10529581 Whirlpool Refrigerator Crisper Pan
4	ASSEMBLY, DELI PAN FRONT
5	SUPPORT
5A	SUPPORT
6	W10759522 Whirlpool Screw
7	WP488787 Whirlpool Refrigerator Screw
8	Egg Bin Assembly
9	W10600690 Whirlpool Refrigerator Ice Pan
10	W10600687 Whirlpool Front Pan
11	W10609697 Whirlpool Freezer Pan
12	ASSEMBLY, FREEZER PAN FRONT
13A	LADDER, SHELF CENTER (GREY)
13	LADDER, SHELF SIDE (GREY)
14	ASSEMBLY, PRODUCE PRESERVER
15	W10568582 Whirlpool Refrigerator CANT Shelf
16	WPW10578291 Whirlpool Glass Shelf
17	W10701859 Whirlpool Refrigerator Wine Rack
18	COVER, CRISPER
19	SCREW
20	520965 Whirlpool Refrigerator Support
