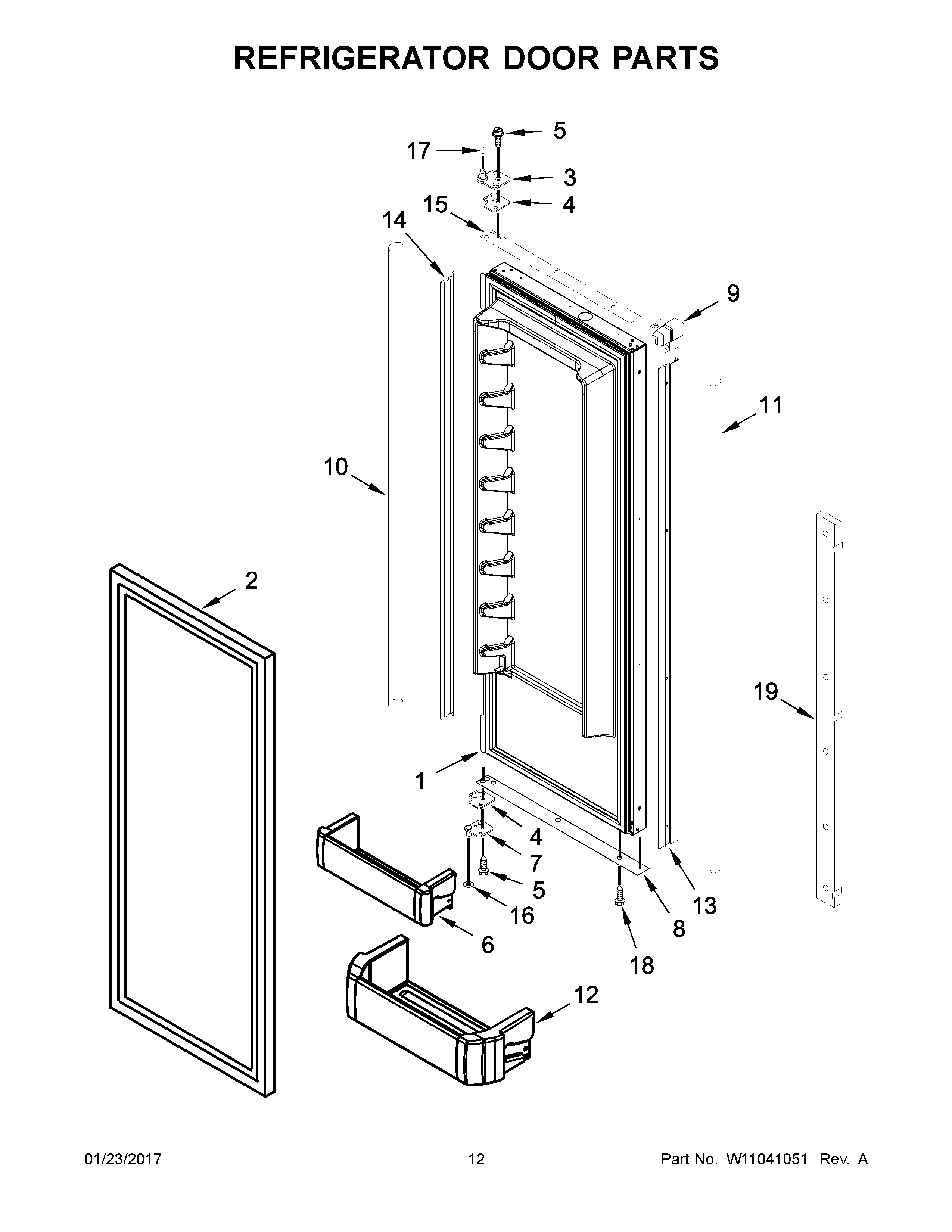

KBFN506EPA01 07 – REFRIGERATOR DOOR PARTS

KBFN506EPA01 07 – REFRIGERATOR DOOR PARTS

Written by

in

KBFN506EPA01 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10782276 Whirlpool Refrigerator Stainless Steel Door Assembly
1AW10782282 Whirlpool Refrigerator Stainless Steel Door Assembly
2W10871887 Whirlpool Refrigerator FIP Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6W10529449 Whirlpool Refrigerator Cantilever Bin
7AW10273367 Whirlpool Refrigerator Door Hinge
7W10273369 Whirlpool Refrigerator Door Hinge
8W10570040 Whirlpool Refrigerator Door Trim
92207457 Whirlpool Refrigerator Door Trim
10Cover, Trim (Handle Side)
112209084S Whirlpool Refrigerator Trim Cover
12W10578289 Whirlpool Refrigerator Cantilever Bin
132314030S Whirlpool Refrigerator Door Trim
142309031S Whirlpool Refrigerator Door Trim
15W10570038 Whirlpool Refrigerator Door Trim
16WP2006346 Whirlpool Refrigerator Washer
17W11500952 Whirlpool Refrigerator Hinge Bushing
18WP8281250 Whirlpool Refrigerator Screw
19W11590867 Whirlpool Rail Molding
