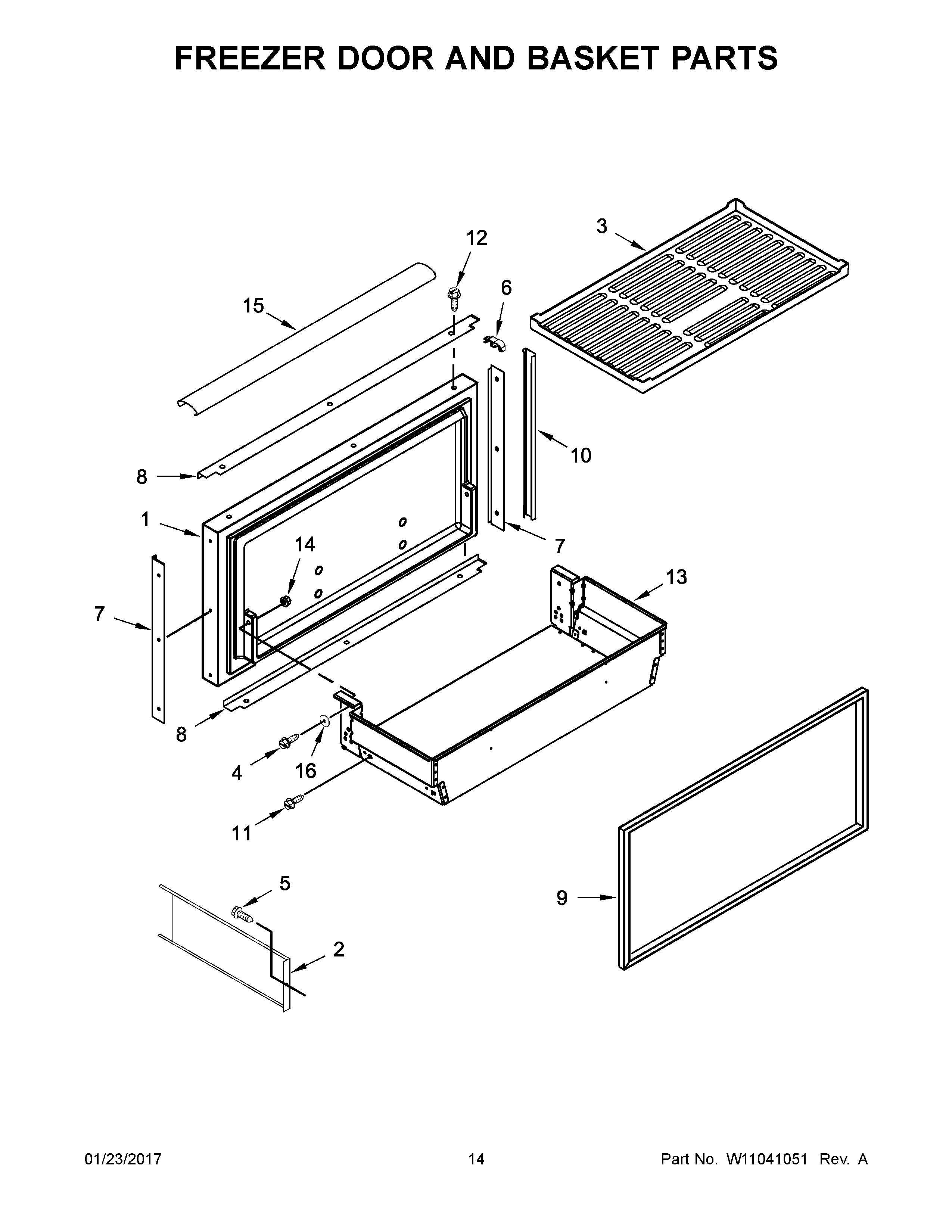

KBFN506EPA01 08 – FREEZER DOOR AND BASKET PARTS

KBFN506EPA01 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBFN506EPA01 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782352 Whirlpool Refrigerator Stainless Steel Door Assembly
2DIVIDER, BASKET
3W10665412 Whirlpool Mat
4W10761334 Whirlpool Screw Assembly
5WP488234 Whirlpool Air Conditioner Screw
62258903 Whirlpool Refrigerator Door Trim
7W10780423 Whirlpool Refrigerator Door Trim
8W10780421 Whirlpool Refrigerator Door Trim
9W11625085 Whirlpool Refrigerator FIP Gasket
102006324 Whirlpool Refrigerator Cover Trim
11W10109030 Whirlpool Refrigerator Screw
12WP8281250 Whirlpool Refrigerator Screw
13ASSEMBLY, FREEZER BASKET
14NUT
152006329 Whirlpool Refrigerator Cover Trim
16WASHER
