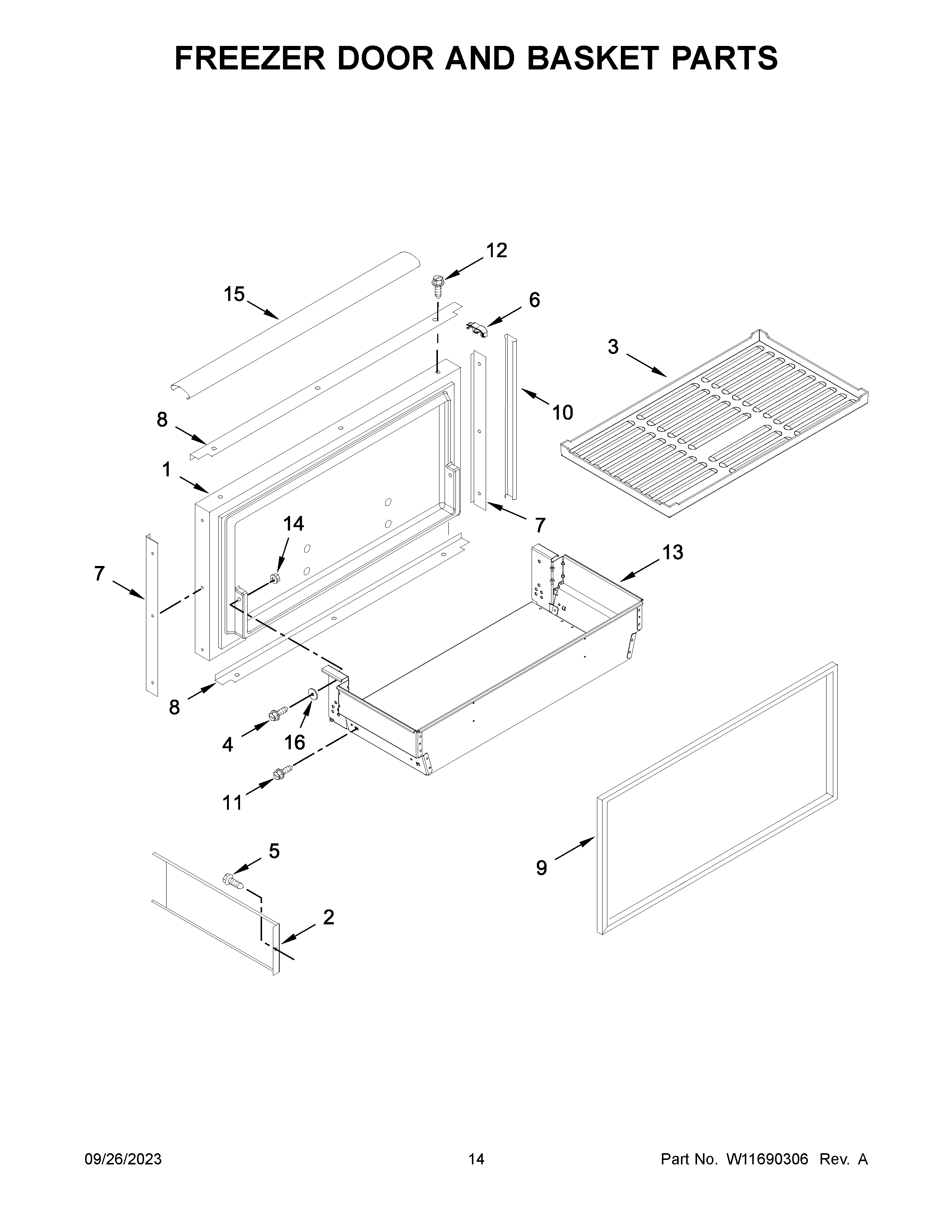

KBFN506EPA05 08 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	W10782352 Whirlpool Refrigerator Stainless Steel Door Assembly
2	DIVIDER, BASKET
3	W10665412 Whirlpool Mat
4	W10761334 Whirlpool Screw Assembly
5	WP488234 Whirlpool Air Conditioner Screw
6	2258903 Whirlpool Refrigerator Door Trim
7	W10780423 Whirlpool Refrigerator Door Trim
8	W10780421 Whirlpool Refrigerator Door Trim
9	W11625085 Whirlpool Refrigerator FIP Gasket
10	2006324 Whirlpool Refrigerator Cover Trim
11	W10109030 Whirlpool Refrigerator Screw
12	WP8281250 Whirlpool Refrigerator Screw
13	ASSEMBLY, FREEZER BASKET
14	NUT
15	2006329 Whirlpool Refrigerator Cover Trim
16	WASHER
